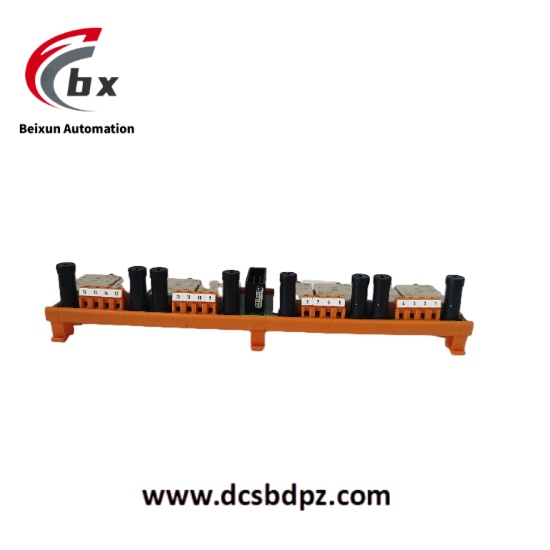

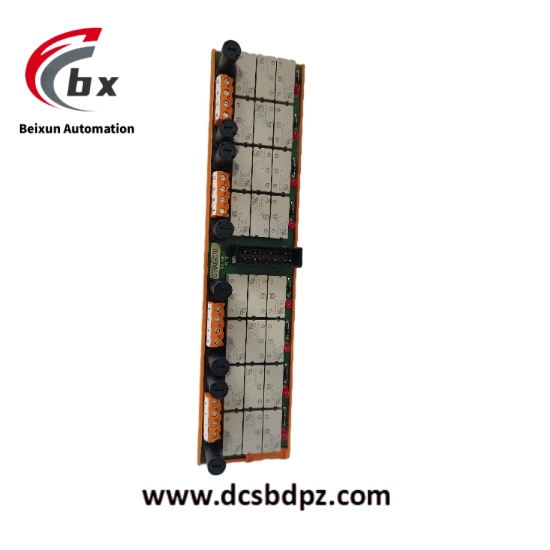

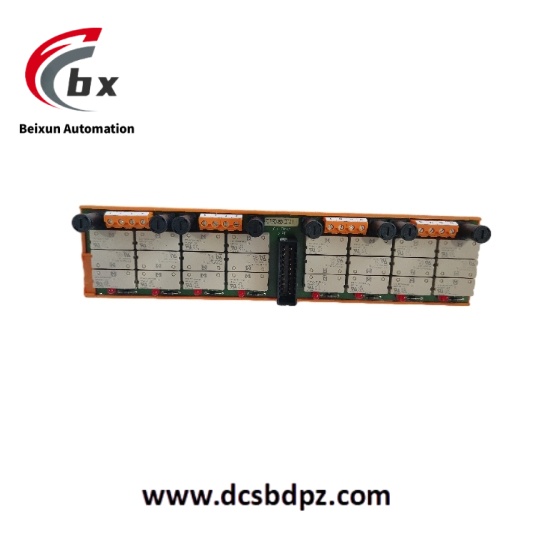

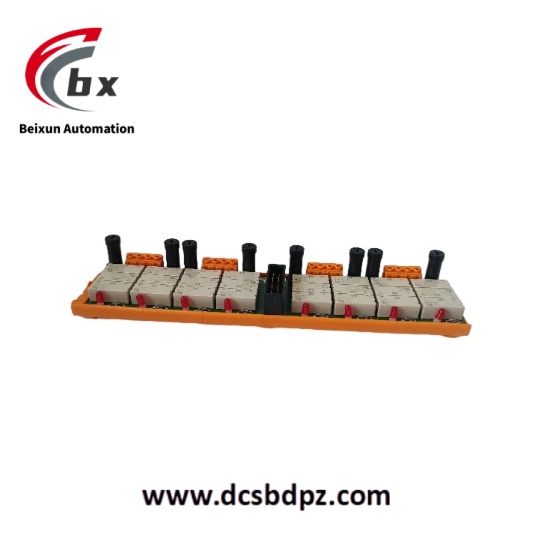

Honeywell FC-TSRO-0824 Digital output field terminal module
The Honeywell FC - TSRO - 0824 is a digital output field termination assembly designed for industrial automation and process control. This module features 8 optically isolated digital output channels, effectively shielding the output signals from external electrical interference to ensure stable and reliable signal transmission. It operates on a 24V DC power supply, which is compatible with common industrial power systems. The terminal block facilitates easy connection to field wiring, making installation and maintenance convenient. The module supports DIN rail mounting, saving space and facilitating layout in control cabinets.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell FC-TSRO-0824 Digital output field terminal module
Specific Parameters
- Power supply voltage: 24V DC
- Maximum input voltage: 36V DC
- Relay pick – up voltage: 19.2V DC
- Input current: Typically 40mA at 24V DC
- Number of output channels: 8
- Maximum output current: 5A (fused)
- Minimum output current: 1mA at 5V
- Maximum output voltage: 250V AC / 250V DC
- Maximum switched load: 1250VA / 150W
- Dimensions: 300×70×60mm (L×W×H)
- Shipping weight: 2kg
- Operating temperature range: -40°C to 85°C
- Approvals: CE approval, UL and TüV approvals pending
- Safety class: AK1 – 6
Product Performance
- High – reliability output: The 8 optically isolated digital output channels can effectively resist external electrical interference, ensuring accurate and stable output signals, which is suitable for industrial scenarios with extremely high requirements for signal reliability.
- Wide – range voltage adaptation: It can operate stably under a standard 24V DC power supply and can withstand a maximum input voltage of 36V DC. It has strong adaptability to power fluctuations under different working conditions, reducing equipment failures caused by voltage problems.
- High – load driving capacity: With a maximum output current of 5A and a maximum switched load of 1250VA / 150W, it can directly drive high – load devices such as solenoid valves and contactors, meeting the diverse load requirements in industrial fields.
- Convenient installation and maintenance: The DIN rail mounting and terminal block connection methods make the installation process simple and fast. During later maintenance, it is easy to troubleshoot and replace faulty components, reducing maintenance costs and time.
- Good environmental adaptability: With an operating temperature range of -40°C to 85°C, it can operate normally in harsh industrial environments such as high and low temperatures, ensuring the continuous and stable operation of industrial automation systems.
