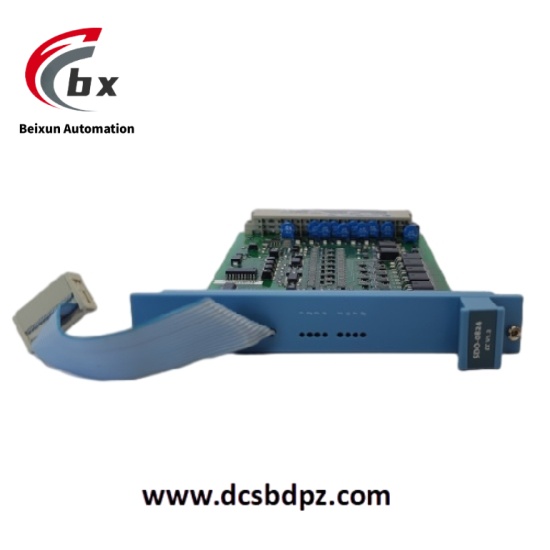

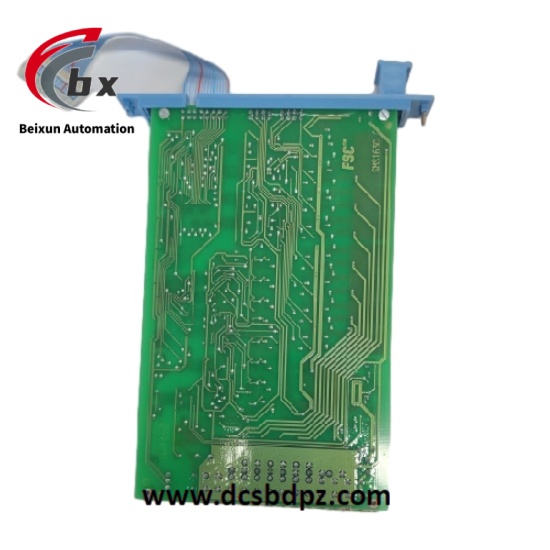

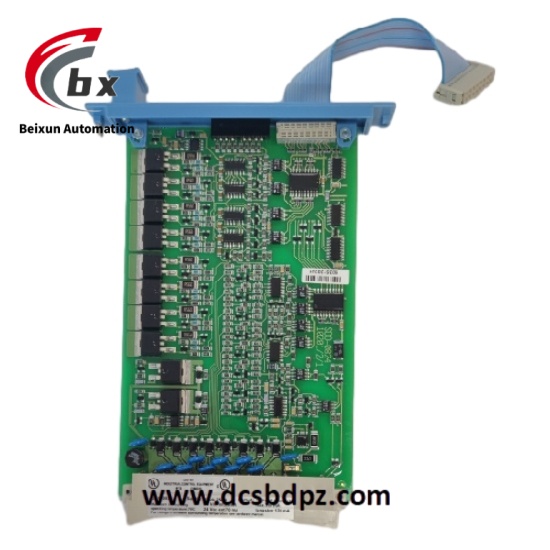

Honeywell FC-SDO-0824 Secure Digital Output Module
The Honeywell FC - SDO - 0824 is an 8 - channel fail - safe digital output module for safety - critical applications. This module ensures that the output is turned off in the event of a power outage or other system failures, safeguarding system safety. It has a built - in watchdog timer. If a valid signal is not received within a specific period, the timer will reset the output. This module is compatible with a variety of Honeywell safety controllers, such as SafetyManager4000, SafetyManager5000, and SafetyManager6000. Its outputs can drive loads including resistive elements (such as lamps) or inductive devices (such as solenoids). Each output is equipped with a suppression diode for inductive loads to ensure safe operation. The outputs are divided into two groups of four, each with its own secondary means of de - energizing, enhancing the selectivity of shutdown in case of channel failures.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell FC-SDO-0824 Secure Digital Output Module
Specific Parameters
- Operating voltage: 24V DC
- Output voltage: 24V DC
- Output type: Digital output
- Communication interface: Supports communication protocols such as Profibus DP
- Number of output channels: 8
- Output specification: 24V DC solid – state source, short – circuit proof
- Maximum current: 550mA (limited to 350mA at 70 °C)
- Maximum lamp load: 120mA (2.9W)
- Maximum load capacitance: 1µF
- Voltage drop: Less than 2.0V DC at 500mA
- Watchdog input current: 8mA
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +85°C
- Humidity range: 5% to 95%RH (non – condensing)
- Product dimensions: 120mm x 76mm x 32mm
Product Performance
- High safety: Designed specifically for safety – critical applications, it can turn off the output in a timely manner when the system is abnormal, preventing potential hazards. The watchdog timer mechanism further improves system safety and reliability.
- Stable output drive: It can stably drive various loads. The design of the suppression diode for inductive loads effectively prevents the damage of induced electromotive force to the circuit and equipment, ensuring stable output and equipment safety.
- Fault diagnosis and handling: The design of output grouping and secondary de – energizing methods facilitates quick location and effective shutdown measures in case of channel failures, reducing the scope of fault impact.
- Strong environmental adaptability: With a wide operating temperature and humidity range, it can operate stably in various complex industrial environments, reducing the impact of environmental factors on equipment operation.
- Good communication compatibility: Supports common communication protocols, making it convenient to integrate with other devices or systems to build a complete automation control system.
