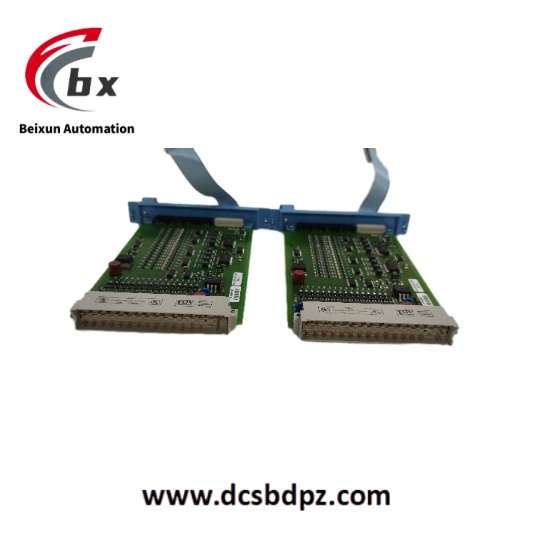

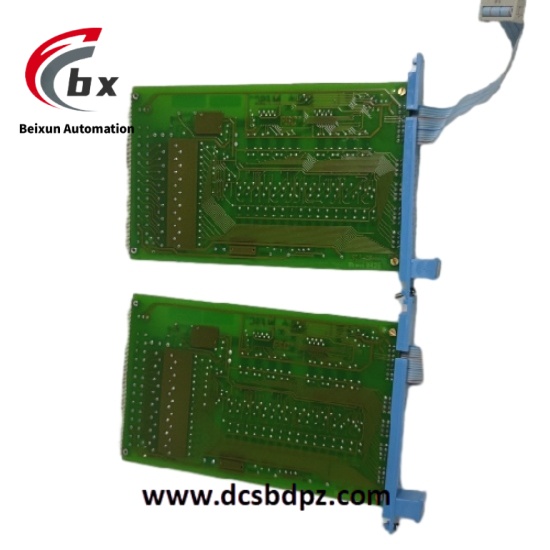

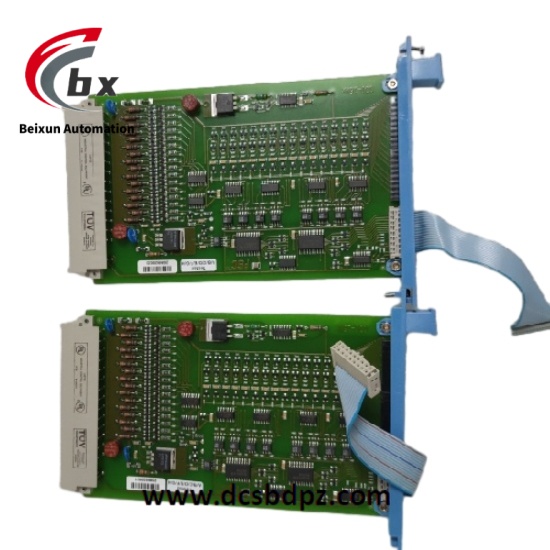

Honeywell FC-SDI-1624 Secure Digital Input Module
The Honeywell FC - SDI - 1624 is a 16 - channel safe digital input module designed for industrial automation control systems. It can reliably monitor discrete signals from various devices, such as limit switches, proximity sensors, and pushbuttons, through 16 isolated 24V DC input channels. This module has a conformal coating, which can effectively protect the internal circuits in harsh environments. It has built - in diagnostic functions to help quickly troubleshoot faults. It supports both 2 - wire and 3 - wire configurations, offering high flexibility to meet the wiring requirements of different industrial sites. With an IP65 protection rating, the module can effectively prevent dust and water, adapting to complex industrial environments.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell FC-SDI-1624 Secure Digital Input Module
Specific Parameters
- Number of input channels: 16
- Input voltage: Nominal 24V DC, maximum 36V DC
- Input current: 7mA at 24V DC
- Input high level: Greater than 15V DC
- Input low level: Less than 9V DC (current less than 2mA)
- Input delay: Typical value 10ms
- Type: 24V DC solid – state, short – circuit protected
- Maximum current: 450mA
- Maximum load capacitance: 32μF
- Voltage drop: Less than 1.5V at 450mA
- Power requirements: 5V DC, 8mA; 24V DC internal, 110mA; 24V DC external, 110mA (input current)
- Ripple content (at 5V DC): Less than 0.5Vp – p (0 – 360Hz)
- Dimensions: 17cm×7cm×5.8cm
- Approvals: CE, TUV, UL, CSA, FM
Product Performance
- High – reliability signal monitoring: The 16 isolated input channels can accurately monitor various discrete signals, effectively avoiding signal interference, ensuring that the system obtains accurate device status information, and guaranteeing the stable operation of the industrial automation process.
- Flexible configuration: Supports 2 – wire and 3 – wire configurations, can adapt to different industrial field wiring methods, facilitates installation and system integration, and reduces inconvenience caused by limited wiring methods.
- Powerful diagnostic function: The built – in diagnostic function can quickly locate fault points, reduce equipment downtime, improve production efficiency, and reduce maintenance costs.
- Good environmental adaptability: With an IP65 protection rating, it can prevent dust and water, and has a wide operating temperature range. It can work normally in harsh industrial environments, reducing the impact of environmental factors on the module’s performance.
- Strict safety standards: Passed a number of authoritative certifications, complies with strict safety standards, and can be used in safety – critical applications to protect the safety of personnel and equipment.
