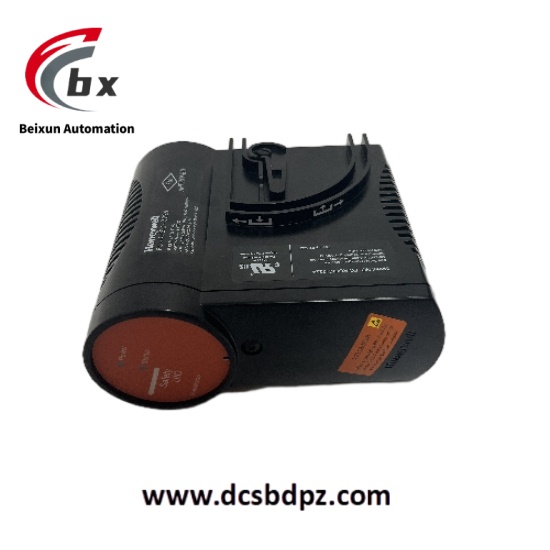

Honeywell FC-RUSIO-3224 Safe input/output module
The Honeywell FC - RUSIO - 3224 is a powerful remote universal safe input/output module designed for industrial automation and safety control systems. It provides 32 flexible configurable 24V DC channels that can be set as digital inputs, digital outputs, analog inputs, or analog outputs according to actual needs. The module uses high - precision AD/DA converters to ensure the accuracy of analog signal acquisition and output, and can accurately process various signal types such as voltage and current. In terms of digital signal processing, it adopts opto - isolation technology to effectively isolate the electrical interference between field devices and the control system, enhancing system stability. This module supports multiple communication protocols such as Ethernet/IP and Modbus TCP/RTU, facilitating data interaction and remote monitoring with other devices. Its built - in remote monitoring and diagnostic functions can be remotely monitored and configured through host computer software, enabling the timely detection and resolution of potential problems. In addition, the module meets the SIL 3 safety requirements (in accordance with IEC 61508/61511 standards), has a patented Series C design, and can be configured with ESD (Electro - Static Discharge) functions. It also has a watchdog function that can monitor cycle time, power supply voltage, handle ESD functions and memory errors, and provides an event sequence (SOE) timestamp with a resolution of 1 millisecond.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell FC-RUSIO-3224 Safe input/output module
Specific Parameters
- Number of channels: 32 configurable channels (up to 32 analog inputs, up to 32 analog outputs (16 with or without open – loop detection in some configurations), up to 32 digital inputs (with or without line monitoring), digital outputs configurable)
- Input voltage: Nominal 24V DC, power supply voltage range is -15% to +30%
- Output voltage: 24V DC
- Input current: Typical supply current of 300mA without field load, maximum of 9A for combined load
- Analog input signal types: Supports voltage, current, etc.
- Analog output signal types: Supports voltage, current, etc.
- AD/DA conversion accuracy: High – precision
- Communication protocols: Supports Ethernet/IP, Modbus TCP/RTU, etc.
- Operating temperature (external): -40°C to 70°C
- Operating temperature (internal): -40°C to 90°C
- Storage temperature: -40°C to 85°C
- Safety level: Meets SIL 3 safety requirements (in accordance with IEC 61508/61511 standards)
- ESD function: Configurable (used for dedicated safety – related functions through channel 32)
- Watchdog function: Available, monitors cycle time, power supply voltage, handles ESD functions and memory errors
- Event sequence (SOE) timestamp resolution: 1 millisecond
Product Performance
- High – reliability signal processing: Whether it is analog or digital signals, it can be processed accurately. Analog signals ensure accuracy through high – precision AD/DA converters, and digital signals use opto – isolation technology to resist interference, ensuring that the system obtains reliable signals and maintaining the stable operation of the industrial automation process.
- Flexible channel configuration: The 32 channels can be flexibly set as different types of input/output channels according to the actual industrial scenarios, adapting to diverse control tasks and improving the flexibility and efficiency of system construction.
- Convenient communication and remote management: Supports multiple common communication protocols, facilitating integration with other devices for data sharing and remote monitoring. The built – in remote monitoring and diagnostic functions can be operated through host computer software, which can detect and handle faults in a timely manner, reducing equipment downtime and improving production efficiency.
- High safety standards: Meets SIL 3 safety level requirements, has patented designs and safety configurations such as ESD, and with the watchdog function, it ensures the reliable operation of equipment in safety – critical applications from multiple aspects, ensuring the safety of personnel and equipment.
