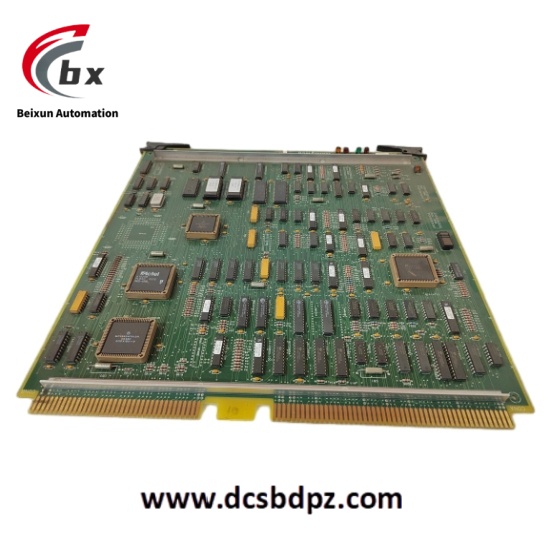

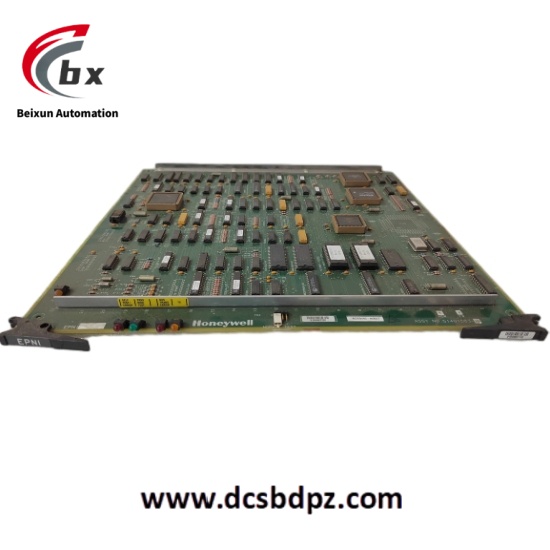

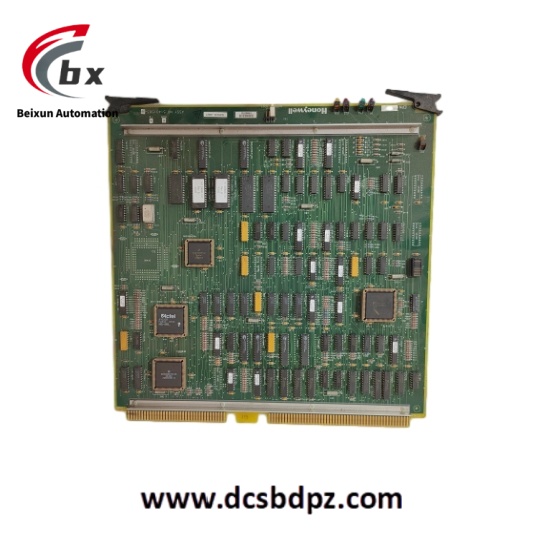

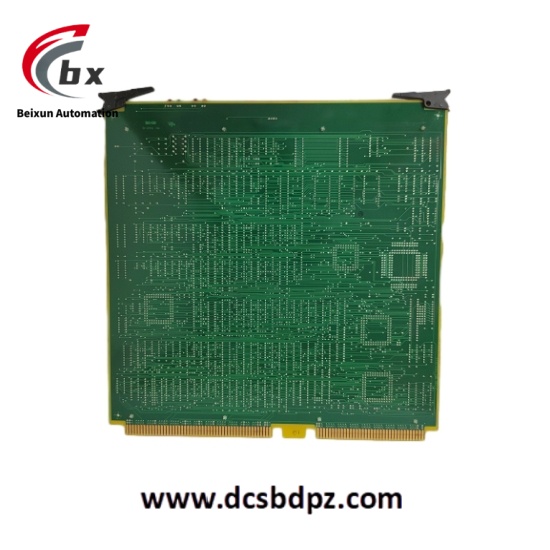

Honeywell EPNI 51401583-100 Ethernet interface module

Honeywell EPNI 51401583-100 Ethernet interface module

Specific Parameters

• Power supply voltage: 24V DC±10%
• Maximum power consumption: 8W
• Communication interface: 1×10/100Mbps adaptive Ethernet port (RJ45)
• Data transmission rate: 10Mbps/100Mbps (auto-negotiation)
• Supported protocols: TCP/IP, UDP, FTP
• System connection: Communicates with TDC 3000 system via LCN interface
• Operating temperature range: -20°C to +60°C
• Storage temperature range: -40°C to +85°C
• Protection class: IP20
• Physical dimensions: 120mm×100mm×45mm
• Module weight: 0.3kg
• Isolation voltage: 2500V AC between Ethernet interface and power supply
• Certification standards: UL 508, IEC 61010-1

Product Performance

• Efficient data interaction: 10/100Mbps adaptive Ethernet interface ensures real-time data transmission, with a single module processing over 1,000 data frames per second, meeting high-frequency communication needs between control systems and upper computers.
• High compatibility design: Perfectly adapts to LCN network of TDC 3000 system, while supporting standard TCP/IP protocols, enabling direct connection to mainstream SCADA software and industrial Ethernet devices without additional protocol conversion.
• Stable operation guarantee: 2500V AC isolation protection effectively resists electromagnetic interference in industrial sites, with no performance attenuation within -20°C to +60°C, and mean time between failures (MTBF) exceeding 100,000 hours.
• Convenient system integration: Supports hot-swap installation, allowing module replacement without interrupting control system operation. Network parameters can be quickly configured via dedicated software, reducing deployment time to within 30 minutes.
• Remote monitoring support: Enables remote status monitoring and parameter configuration of TDC 3000 system via Ethernet, with data transmission delay ≤50ms, meeting off-site operation and maintenance needs.
