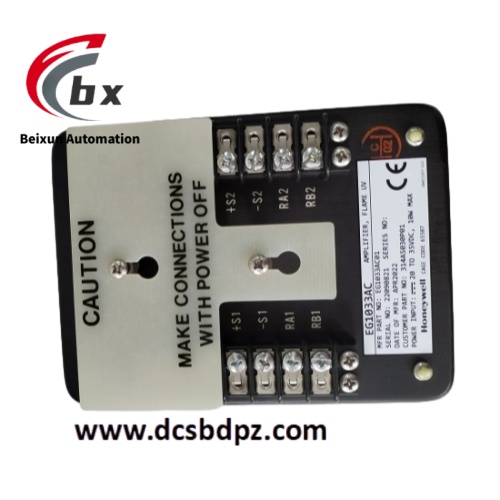

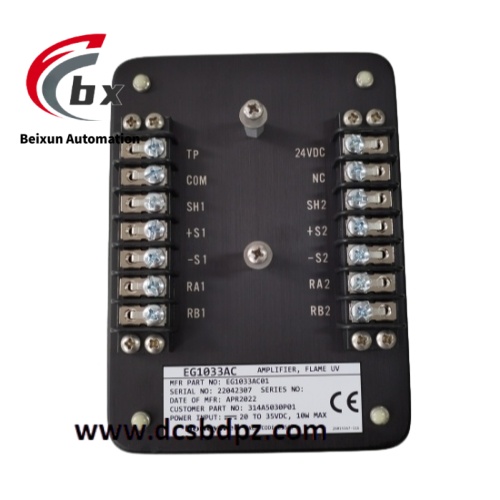

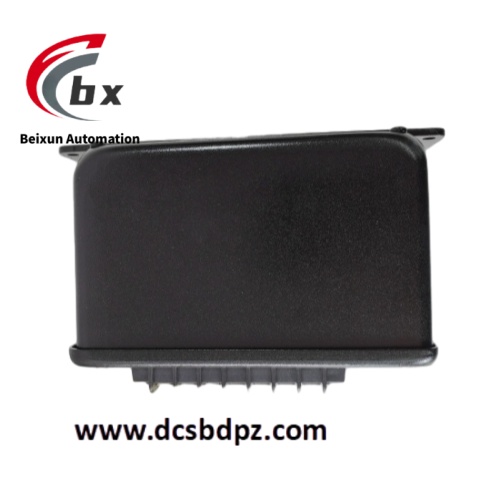

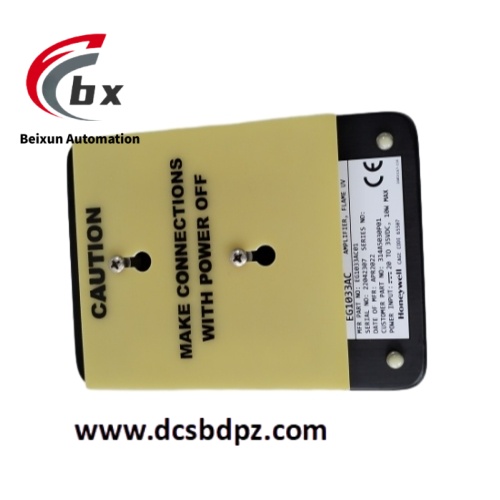

Honeywell EG1033AC01 high performance amplifier

Honeywell EG1033AC01 high performance amplifier

Specific Parameters

• Detection technology: Detects ultraviolet radiation in the 180 – 260nm spectral range, has solar – blind characteristics and is tolerant to black – body radiation
• Hardware output: Relay contacts (SPDT) are adopted
• Flame present response time: The typical value is 0.1 seconds, with a fast response speed
• Flame loss response time: Up to 0.2 seconds
• Power supply voltage: Supports multiple voltage requirements such as 28VDC, 20 – 35VDC and 115VAC
• Operating temperature range: -40°C to 176°C
• Operating distance from sensor to amplifier: Up to 330m (1000ft)
• Shelf – life: Two years
• Mean Time Between Failures (MTBF): 10000 hours, with a total operating hours of over 1 billion hours
• Protection certifications: Has the European CE certification, meeting the requirements of EMC 89/336/EEC and LVD 73/23/EEC directives, as well as ATEX explosive atmosphere 94/9/EC certification; also has the Factory Mutual (FM) approval for explosive atmospheres (Class I, Division 1 and 2, Groups B, C and D) in the United States
• Shipping weight: 3kg

Product Performance

• High sensitivity and fast response: It is extremely sensitive to changes in flame status. The typical flame present response time is only 0.1 seconds, and the maximum flame loss response time is 0.2 seconds. It can promptly capture changes in flame status, providing rapid early warnings for the safe operation of gas turbines and effectively reducing safety risks caused by abnormal flames.
• Wide voltage adaptability: It supports a variety of commonly used industrial power supply voltages, including 28VDC, 20 – 35VDC and 115VAC. It can be flexibly adapted to different power supply systems, reducing installation and usage problems caused by power supply incompatibility and improving the product’s versatility in different scenarios.
• Long – distance signal transmission: The operating distance between the sensor and the amplifier can reach up to 330m. Even in large – scale gas turbine equipment or complex industrial layouts, it can ensure stable signal transmission and accurately feedback flame detection information, guaranteeing the integrity and reliability of the monitoring system.
• High reliability and stability: It has a shelf – life of two years and a MTBF of 10000 hours, with a total operating hours of over 1 billion hours. It has also passed a number of strict protection certifications, such as the European CE certification (meeting EMC and LVD directives), ATEX explosive atmosphere certification, and the US FM approval for explosive atmospheres. It can operate stably in harsh industrial environments and complex electrical environments, reducing equipment maintenance frequency and lowering operating costs.
• Compact and lightweight design: The product has a compact structure and weighs only 3kg, which is convenient for installation and maintenance in the limited space inside gas turbines or other installation locations, improving the convenience of engineering implementation.
