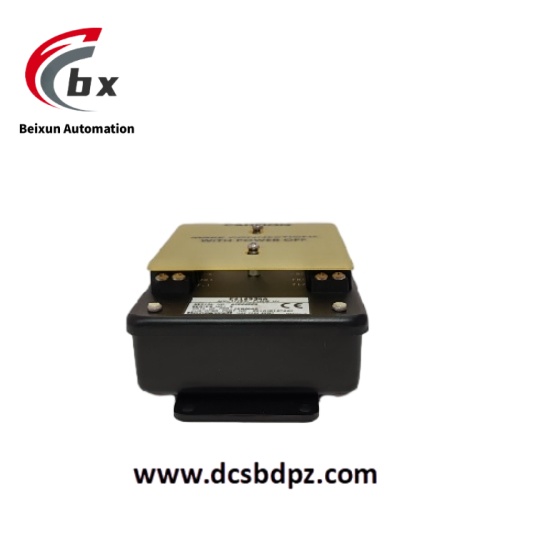

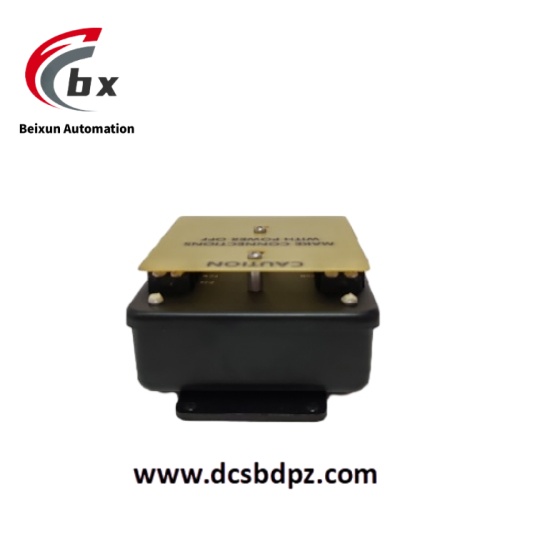

Honeywell EG1033AA EG1033AA01 Flame detector amplifier
Specific Parameters
- Electrical Parameters
Supply Voltage: Supports multi-specification power supply including 28V DC, 20-35V DC and 115V AC
Detection Spectrum: 180-260nm ultraviolet (UV) band
Output Type: EG1033AA with transistor open collector output; EG1033AA01 compatible with same-series output protocol
Response Time: Typical flame presence response time 0.1s, maximum flame loss response time 0.2s
Transmission Distance: Maximum 330m (1000ft) between sensor and amplifier
Power Consumption: ≤5W under rated operation
Isolation Level: Electrical isolation between signal input and output circuits, compliant with industrial safety standards
Protection Functions: Built-in overvoltage protection (130V AC/40V DC threshold), reverse polarity protection
- Environmental Parameters
Operating Temperature: -40°C to 176°C wide temperature range
Storage Temperature: -55°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation without failure at 40°C)
EMC Immunity: Complies with EN 61326-1 industrial standard, capable of shielding interfering light sources such as sunlight and arc welding
Protection Class: IP65 (module itself, adapting to outdoor and humid environments)
Certification Standards: GE gas turbine compatibility certification, compliant with industrial safety monitoring equipment specifications
- Mechanical Parameters
Housing Material: Corrosion-resistant metal housing (acid-alkali resistant, anti-oxidation)
Mounting Method: Supports wall-mounted, flange-mounted and pipe-mounted installation, adapting to standard equipment brackets
Terminal Type: Screw crimp terminals (compatible with 14-22 AWG wires)
Indicators: Power Status (PWR, green steady on), Flame Status (FLAME, red steady on indicating flame detected), Fault Status (FAULT, yellow steady on)
Product Performance
Adopts Geiger Mueller-type phototube sensor with UV detection sensitivity up to 0.1μW/cm², capable of accurately identifying characteristic spectra generated by combustion of fuels such as methane and propane. Flame presence response time ≤0.1s, flame loss response time ≤0.2s, enabling rapid alarm triggering in the early stage of fire.
Transmission distance between sensor and amplifier can reach 330m with signal attenuation rate ≤5%, adapting to long-distance monitoring needs of large-scale equipment. Within the extreme temperature range of -40°C to 176°C, the output signal stability error is ≤±2%, meeting the operation requirements of high-temperature industrial scenarios.
Mean Time Between Failures (MTBF) ≥10,000 hours, with cumulative operation verification exceeding 1 billion hours. The fault diagnosis module can identify faults such as sensor disconnection and power abnormality, with diagnostic coverage ≥95%.
