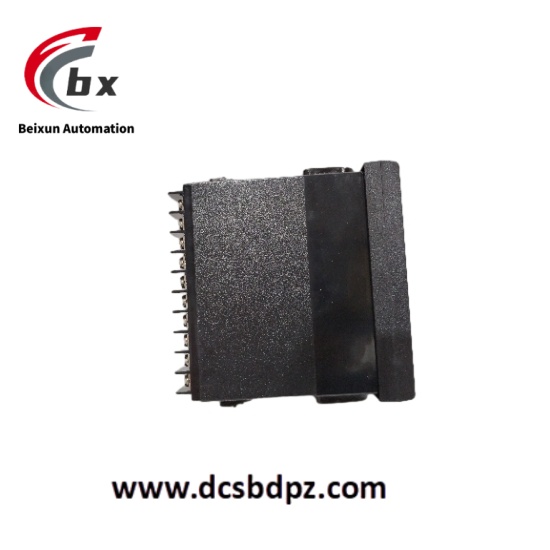

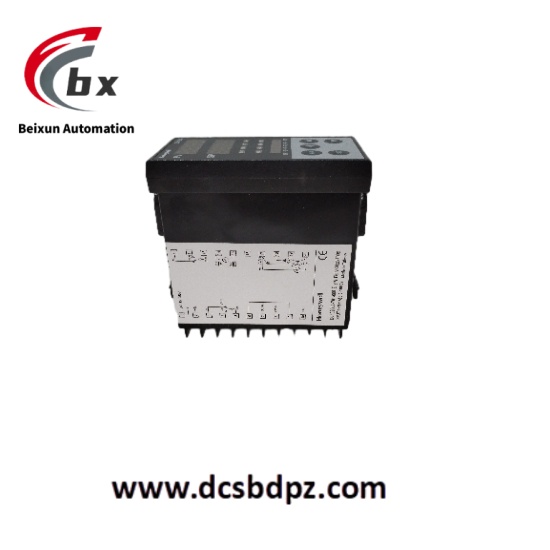

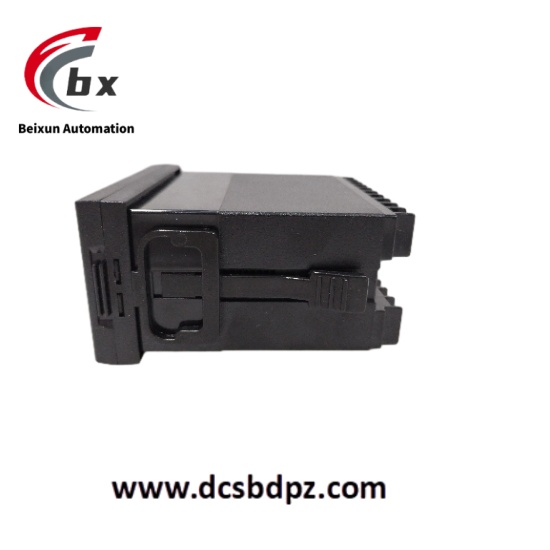

Honeywell DC1020CL digital controller
The Honeywell DC1020CL is a digital controller designed with a microprocessor, offering high functionality and reliability. This controller supports various input types, including resistance temperature detectors (RTD), thermocouples (TC), milliamps (mA), and direct current voltage (DCV), adapting to the access requirements of different sensors. It has diverse control output forms, covering relays, solid - state relays (SSR), analog output, etc., meeting various control scenarios. The DC1020CL is also equipped with rich alarm functions, supporting up to 3 different alarm outputs and 17 configurable alarm modes, which can respond to abnormal situations in a timely manner. In addition, it has an auto - tuning function that can automatically optimize PID control parameters to improve control accuracy.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell DC1020CL digital controller
Specific Parameters
- Input types: Universal configurable, including RTD, TC, mA, DCV
- Output types: Relay, SSR, analog output (such as 4 – 20mA, etc.)
- Alarm function: 3 alarm outputs, 17 configurable alarm modes
- Communication interfaces: Supports RS – 232 or RS – 485 communication with ASCII and Modbus RTU protocols
- Power supply voltage: 90 – 265V AC, 50/60Hz; or 15 – 55V DC
- Power consumption: 8VA (at 110V AC), 12VA (at 220V AC)

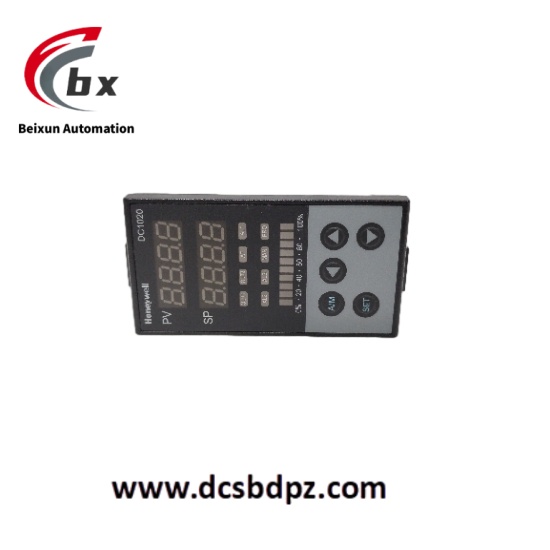

- Display: 4 – digit 7 – segment display for process value (PV) and setpoint (SP), with a 10 – segment LED bar graph
- Operating temperature: -20°C to 65°C
- Operating humidity: 5% to 85% relative humidity, non – condensing
- Protection level: IP65 (front panel)
- Dimensions: 48×96mm (1/8 DIN)
Product Performance
- Precise control: Adopts advanced PID control algorithms combined with the auto – tuning function to precisely regulate the controlled object, ensuring a stable and accurate control process.
- Easy to configure: Provides two different configuration levels for users to quickly access parameters. A 4 – digit security code is set to prevent unauthorized parameter changes, and parameters can also be hidden to avoid misconfiguration.
- Versatile functions: Supports multiple control algorithms, such as PID or on/off control, heating/cooling algorithms with two different sets of PID parameters, motor position control without slide – wire feedback, etc. It has dual – display (4 – digit display for PV and SP) and bar – graph display, intuitively presenting the process status. It has a remote setpoint function for remote control.
- Strong environmental adaptability: With a wide operating temperature range, humidity adaptability, and an IP65 front – panel protection level, it can operate stably in various industrial environments.
