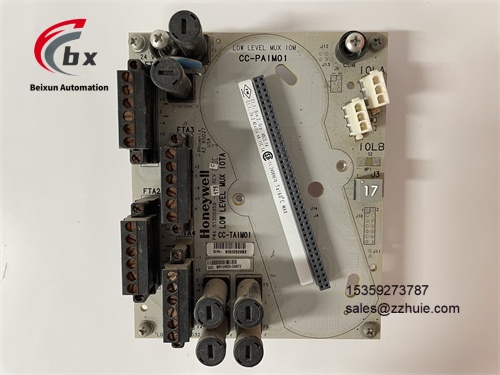

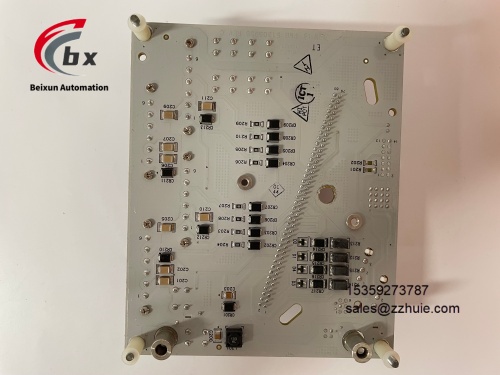

Honeywell CC-TAIM01 Analog input module
Specific Parameters
Brand Honeywell
Product Series Experion PKS Series
Product Type Industrial-grade Analog Input Module
Model CC-TAIM01
Number of Input Channels 8 independent differential analog input channels
Input Signal Type 4-20mA DC, 0-20mA DC, 0-10V DC, ±10V DC, Thermocouple (J/K/T/E/R/S/B), RTD (Pt100)
Measurement Accuracy Voltage/Current Signals: ±0.05% Full Scale (25℃); Thermocouple: ±0.1℃; RTD: ±0.05℃
Resolution 16-bit
Sampling Rate Up to 100Hz per channel, software configurable
Electrical Isolation 2500V AC isolation between channels and between channel and backplane (1 minute)
Operating Voltage DC 24V ±10%
Operating Temperature Range 0℃ – 60℃
Storage Temperature Range -40℃ – 85℃
Relative Humidity 5% – 95% Non-condensing
Protection Level IP20 (Module-level)
Installation Method 35mm standard DIN rail mounting
Dimensions 130mm×150mm×65mm (L×W×H)
Weight Approximately 0.7kg
Power Consumption Typical 5W, Maximum 8W
Diagnostic Functions Channel fault self-diagnosis, Signal over-range alarm, Power supply abnormality monitoring, Open circuit detection, Cold junction compensation fault diagnosis
Compatible System Honeywell Experion PKS Control System
Certification CE, UL, ATEX, IEC 61131-2
Insulation Resistance ≥100MΩ (500VDC)
Response Time ≤1ms
Product Performance
8 independent differential channels design, effectively suppressing common-mode interference and ensuring the accuracy and stability of simultaneous collection of multiple parameters
Compatible with multiple analog signal types as well as thermocouple and RTD signals, can be directly connected to various on-site sensors with extremely strong versatility
16-bit high resolution and high-precision measurement performance, which can accurately capture weak signal changes and meet high-precision process monitoring needs
High electrical isolation strength of 2500V AC, which can effectively block the impact of on-site surges and electromagnetic interference on the control system and improve system anti-interference ability
Equipped with complete cold junction compensation function, suitable for thermocouple signal acquisition and ensuring temperature measurement accuracy
Supports software-configurable sampling rate, which can be flexibly adjusted according to different working condition requirements, adapting to control scenarios with different response speeds
Wide operating temperature range of 0℃-60℃, capable of long-term stable operation in conventional harsh temperature and humidity environments of industrial sites with strong environmental adaptability
Full-channel fault self-diagnosis function, which can real-time monitor channel status, signal integrity and power supply situation, with accurate and efficient fault location and reduced maintenance costs
Deeply compatible with the Experion PKS control system, plug-and-play, supporting online configuration and debugging, simplifying system integration processes
Modular structure design, convenient installation and maintenance, faulty modules can be quickly replaced, shortening downtime and improving production continuity
High-reliability design, MTBF ≥2,500,000 hours, meeting the 24-hour continuous operation needs of industrial sites
