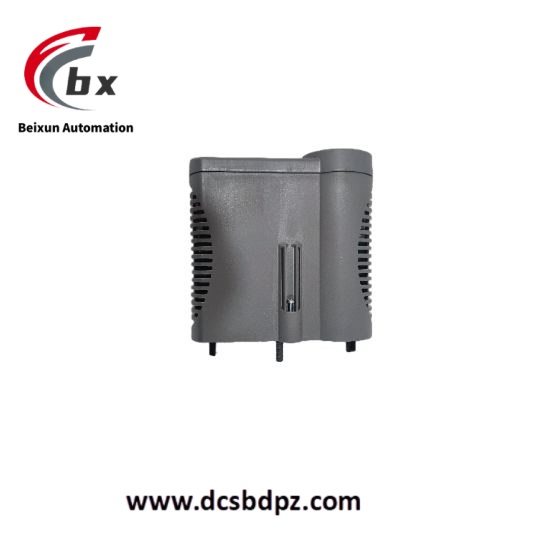

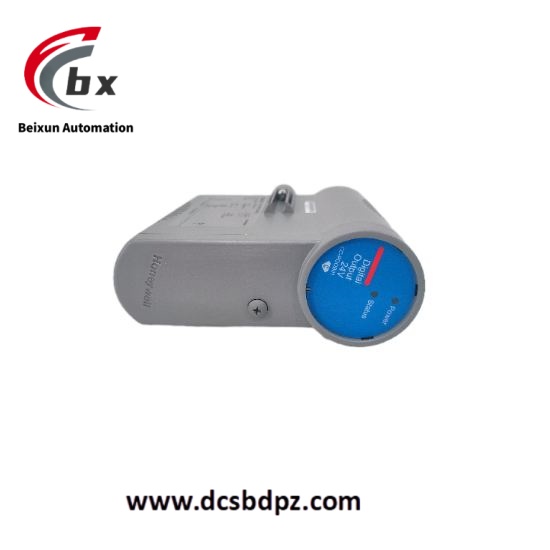

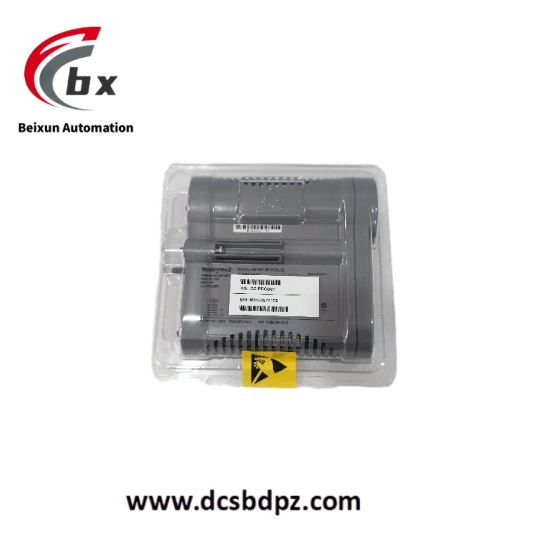

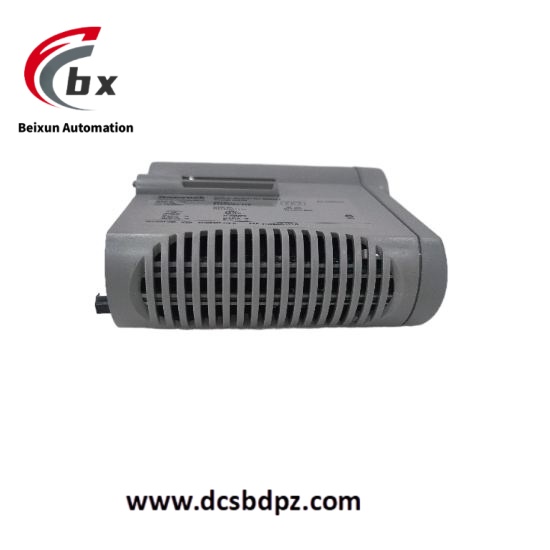

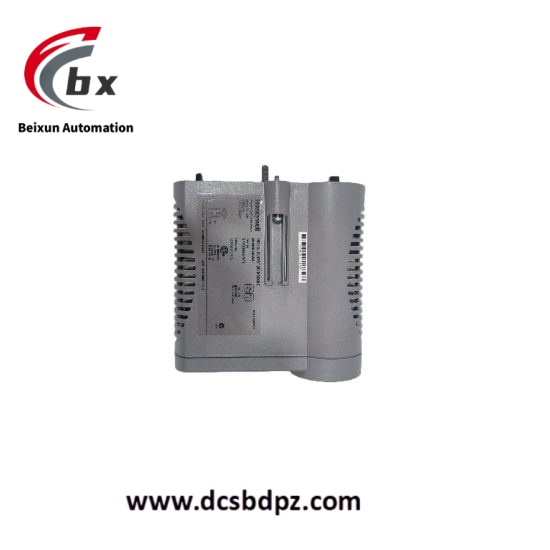

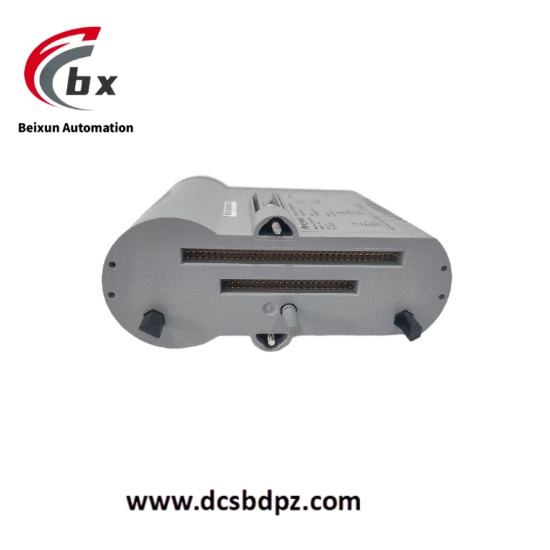

Honeywell CC-PDOB01 High performance digital output module
Working voltage: 24V DC
Current capacity: Each channel can provide up to 2A of current, and the total current capacity of the module can reach 5A
Maximum load voltage: 30V DC maximum, some data shows that the maximum load voltage of relay contacts is 250V AC (rms)/125V DC
Minimum load voltage: 12V DC
Minimum load current: 100mA
Surge current: maximum 10A, lasting for 4 seconds, with a duty cycle of 10%
Number of output channels: 32 channels
Relay contact type: SPST (single pole single throw), can select normally open (NO) or normally closed (NC) contacts through jumper wires
Isolation parameter: The isolation voltage between channels and between channels and logic common terminal is 1500V AC rms or ± 1500V DC
Communication parameters: Supports Modbus RTU communication protocol
Protection level: IP20, can prevent dust from entering and limited water splashing
Working temperature range: -40 ° C to+70 ° C
Product Performance
High control accuracy: capable of providing precise digital output signals, enabling precise control of industrial equipment and meeting various high-precision control requirements.
Strong reliability: Using high-quality materials and advanced manufacturing processes, it has high reliability and stability, and can operate stably for a long time in harsh industrial environments. The high isolation voltage between channels and between channels and logic common terminals effectively prevents signal interference and electrical faults, ensuring the reliable operation of the system.
Fast response speed: Relays have the ability to switch quickly, with action times typically in milliseconds. They can quickly respond to control instructions and achieve timely control of equipment, making them suitable for applications that require high response speed.
Good flexibility: Supports multiple communication protocols, making it easy to communicate and integrate with other devices, achieving networked control and management of the system. In addition, the 32 channel design and the selectable contact types for jumpers enable the module to flexibly adapt to different control requirements.
Low maintenance cost: High contact rated times (such as 5000000 times for mechanical life and 50000 times for electrical life @ 6A), reducing the frequency of relay replacement and lowering maintenance costs. Meanwhile, the diagnosis and troubleshooting of module faults are relatively simple, which helps to improve the maintenance efficiency of the system.
