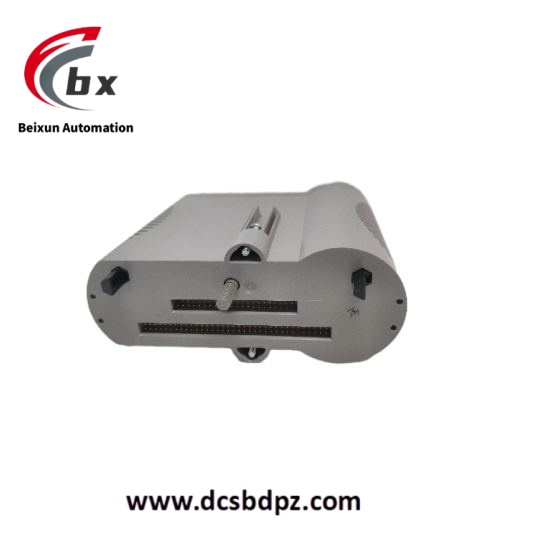

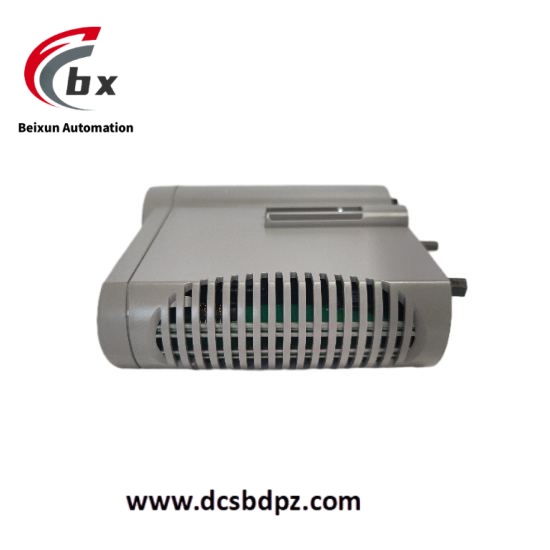

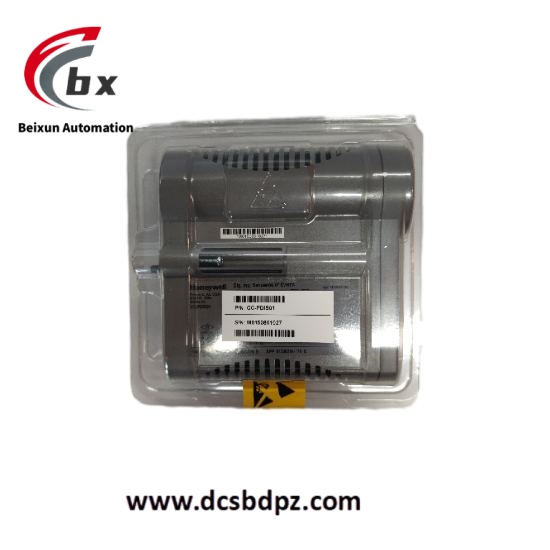

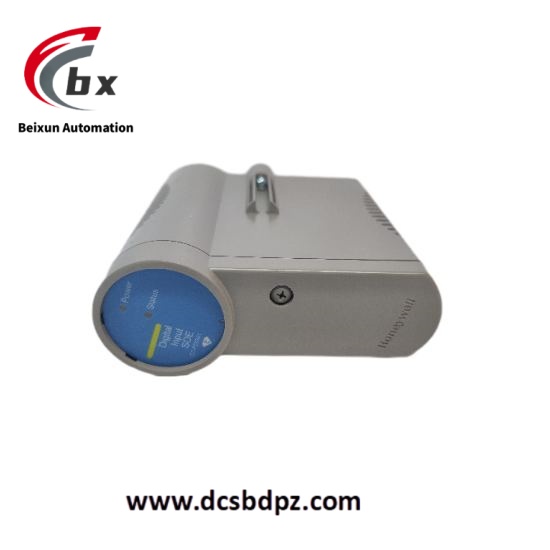

Honeywell CC-PDIS01 Digital input module
Specific parameters
Power supply: 24V DC (provided by the control system).
Input voltage range: 18 to 30V DC.
Input current: minimum 13V DC or 3mA when conducting, maximum 5V DC or 1.2mA when turning off.
Number of channels: 16 isolated digital input channels.
Working temperature: ambient temperature 0 ° C to 60 ° C (32 ° F to 140 ° F), storage temperature -40 ° C to 85 ° C (-40 ° F to 185 ° F).
Dimensions: Width 90mm, Height 120mm, Depth 25mm.
Weight: Approximately 0.3kg.
Network interface: 10/100Mbps Ethernet (for Ethernet/IP and Modbus TCP).
Protection level: IP20 (preventing objects larger than 12mm from entering).
Certification: UL certification, CE certification, CSA certification, compliant with RoHS standards.
Product Performance
Multiple working modes: with three working modes: normal (20ms PV scan), event sequence (1ms resolution SOE, 20ms PV scan), and low latency (5ms PV scan), which can be flexibly selected according to different application scenarios.
Powerful diagnostic function: It has a wide range of internal diagnostic functions, which can detect and report errors such as on-site open circuits and invalid process variables, helping to ensure data integrity and stable system operation.
Redundancy function: Supports redundant configuration to improve system reliability and availability. When one module fails, another module can take over the work.
Flexible configuration: can choose internal or external on-site power supply, onboard excitation power supply, no need for grouping power supply, and can also provide non flammable on-site power supply to meet the safety requirements of hazardous areas.
Electrical isolation: Using current isolation technology to protect the system from electrical noise and interference, ensuring the accuracy and stability of signal transmission.
