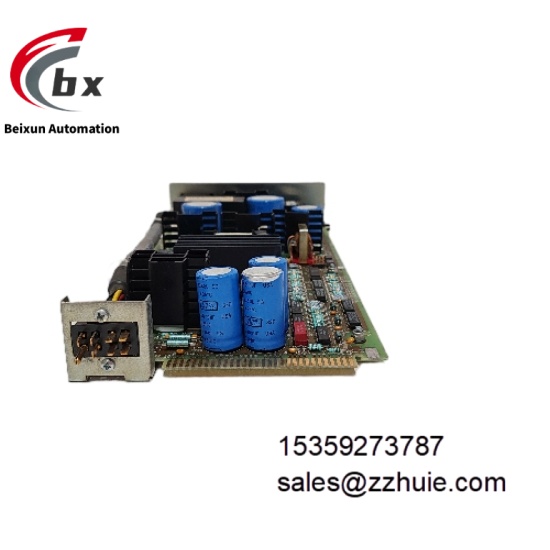

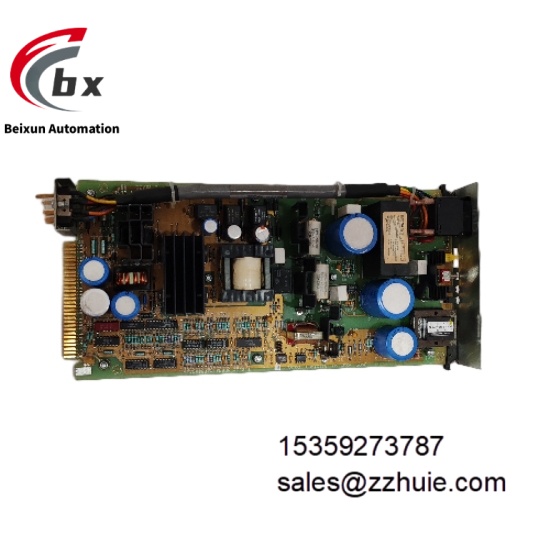

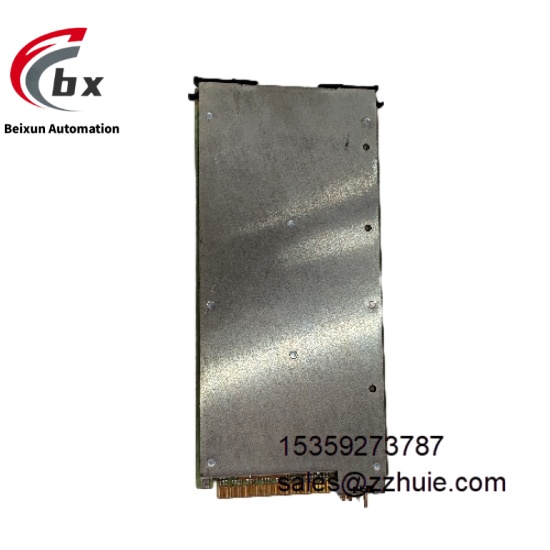

Honeywell 51401497-100 FW25-92 Analog input/output hybrid module
Specific Parameters
- Electrical Parameters
Supply Voltage: 5V DC (backplane power supply), maximum power consumption 12W
Input Channels: 8 differential analog inputs, supporting 4-20mA, 0-10V, 1-5V signal types
Output Channels: 4 analog outputs, output range 4-20mA (load resistance ≤500Ω), 0-10V (load current ≥5mA)
Input Accuracy: ±0.05% full scale (within -40℃ to 85℃ temperature compensation range)
Output Accuracy: ±0.1% full scale, output ripple ≤10mV peak-to-peak
Sampling Rate: 100Hz per channel, 8-channel synchronous sampling
Communication Interface: Backplane bus communication, compatible with Honeywell HIWAY protocol
Protection Functions: Electrical isolation between channels (250V AC), overvoltage protection (30V DC clamping on input side), overcurrent protection (30mA current limiting on output side)
Calibration Method: Supports automatic and manual calibration, calibration cycle ≥12 months
- Environmental Parameters
Operating Temperature: -40°C to 85°C (no derating in full temperature range)
Storage Temperature: -55°C to 100°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation for 72 hours at 90% humidity and 40°C without failure)
EMC Immunity: Complies with EN 61326-1 Class A standard, ESD protection ±15kV (air discharge)
Vibration Resistance: 10-500Hz, 0.5g acceleration (sinusoidal vibration)
Protection Class: IP20 (module itself, adapted for cabinet installation)
Certification Standards: UL 508C industrial control equipment certification, CE certification, ATEX explosion-proof certification
- Mechanical Parameters
Dimensions: 160mm (L) × 100mm (W) × 30mm (H, module itself)
Weight: Approximately 0.4kg
Mounting Method: Standard 3U rack mounting, adapting to Honeywell I/O backplane
Housing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)

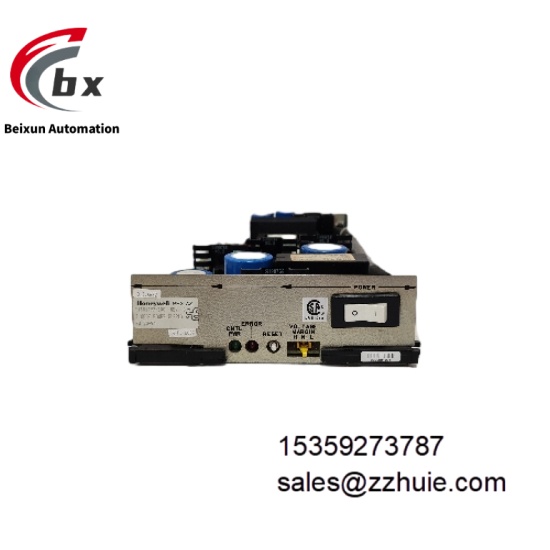

Indicators: Power Status (PWR, green steady on), Communication Status (COM, green 1Hz blinking), Channel Fault (CHx, red steady on)
Product Performance
Adopts 24-bit Δ-Σ ADC, input signal sampling accuracy up to ±0.05% full scale, temperature drift ≤0.001% full scale/℃ within -40℃ to 85℃ wide temperature range, ensuring measurement accuracy in extreme environments. Output channels use precision DAC chips, output stability error ≤±0.05% when load changes, adapting to various industrial actuators.
Supports hot-swap function, module replacement time ≤10 seconds, no impact on other modules during replacement. Fault diagnosis coverage ≥99%, which can real-time detect faults such as signal disconnection, over-range and power abnormality, and fault information is uploaded to the control system via bus in real time.
Backplane bus communication delay ≤1ms, 8-channel synchronous sampling time difference ≤10μs, meeting high-precision closed-loop control requirements. Mean Time Between Failures (MTBF) ≥500,000 hours (MIL-HDBK-217F, 25℃ environment)。
