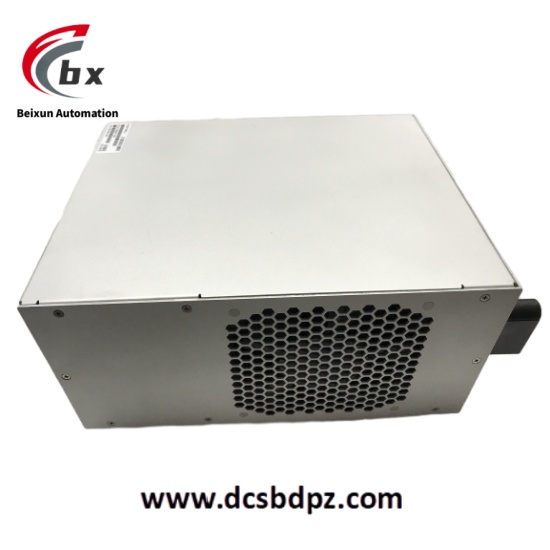

Honeywell 51198947-100 Analog input module
Honeywell 51198947-100 is an industrial-grade analog input module designed for Experion PKS distributed control systems, used to collect analog signals such as temperature, pressure and flow in industrial sites. The module adopts isolated channel design, supports access of multiple standard sensor signals, can convert weak signals into digital quantities and transmit them to the controller, with high-precision conversion and anti-interference ability, suitable for industrial scenarios with high requirements for signal acquisition accuracy such as petrochemical and power industries.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell 51198947-100 Analog input module
Specific Parameters
- Power supply voltage: 24V DC±10%
- Maximum power consumption: 8W
- Number of input channels: 8 channels (independently isolated)
- Input signal types: 4-20mA, 0-10V, 1-5V, thermocouple (K, J, T types), RTD (Pt100)
- Conversion accuracy: ±0.1% full scale
- Sampling rate: 100Hz per channel
- Isolation voltage: 2500V AC between channels, 2500V AC between channels and power supply
- Operating temperature range: -20°C to +60°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Physical dimensions: 120mm×100mm×40mm
- Module weight: 0.3kg
- Communication interface: Connected to controller via system bus
- Certification standards: UL 508, IEC 61010-1
Product Performance
- High-precision signal acquisition: Conversion accuracy reaches ±0.1% full scale, combined with 100Hz sampling rate, which can accurately capture small signal fluctuations, ensuring that the measurement deviation of temperature, pressure and other parameters is ≤0.2%.
- Strong anti-interference ability: 2500V AC isolation design between channels and between channels and power supply effectively suppresses electromagnetic interference and ground loop influence in industrial sites, improving signal transmission stability by more than 95%.
- Wide signal compatibility: Supports multiple signal types such as 4-20mA, thermocouple and RTD, and can directly connect to temperature transmitters, pressure sensors and other equipment without additional conversion modules, reducing system integration costs.
- Stable environment adaptation: Maintains stable conversion performance within the operating temperature range of -20°C to +60°C, with no performance attenuation in 5%-95% humidity (non-condensing) environment, adapting to complex industrial environments such as high and low temperature, humidity, etc.
- Convenient maintenance design: Supports online hot-swap replacement, LED indicators on the module surface display power, communication and channel status in real time, and with system diagnostic functions, fault location time is reduced to within 10 minutes.
