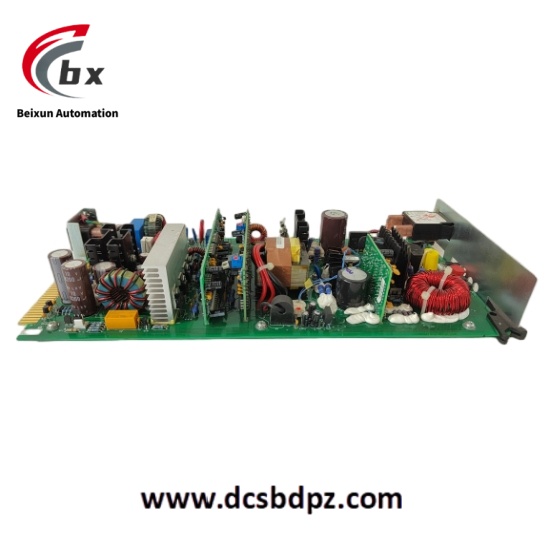

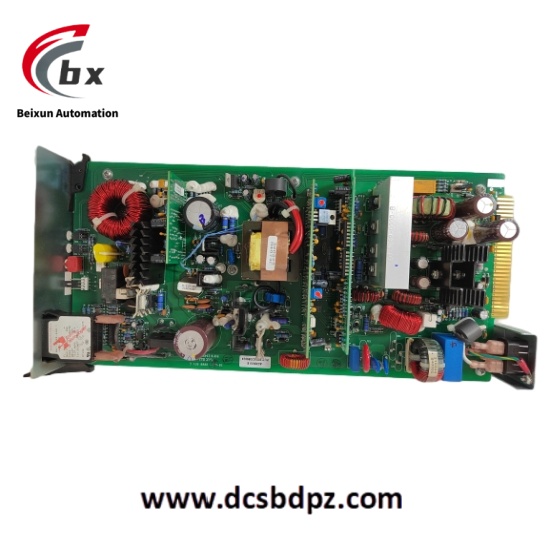

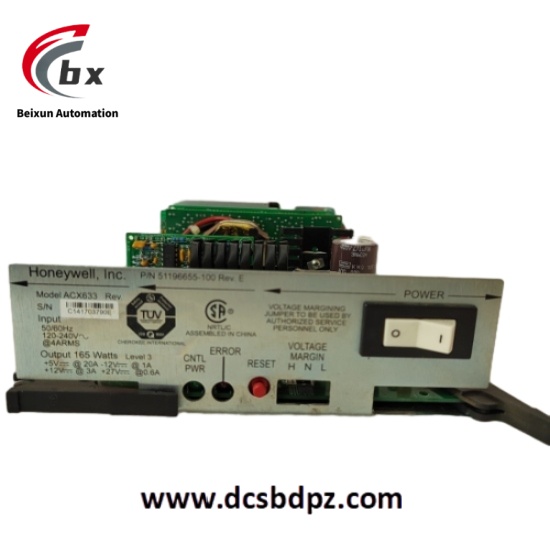

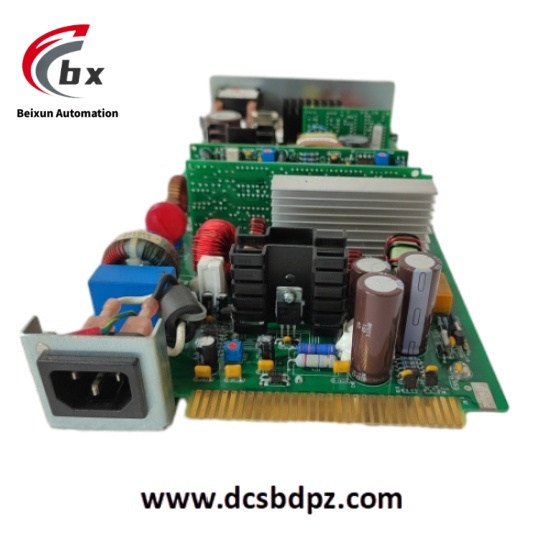

Honeywell 51196655-100 ACX633 Security Logic Controller Module
Honeywell 51196655-100 ACX633 is an industrial-grade safety logic controller module, designed for Safety Manager safety instrumented systems. Its core function is to execute safety interlock logic, monitor hazardous conditions and trigger protective actions. The module adopts dual-channel redundant architecture, supports multiple safety input signal acquisition and output control, complies with international safety standards, and can reduce risks in high-risk industries such as petrochemical and pharmaceutical to prevent safety accidents.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell 51196655-100 ACX633 Security Logic Controller Module
Specific Parameters
- Power supply voltage: 24V DC±10%
- Maximum power consumption: 12W
- Safety input channels: 8 channels (supports PNP/NPN signals)
- Safety output channels: 4 channels (relay output, 2NO+2NC)
- Safety level: SIL 3 (IEC 61508), PLe (EN ISO 13849-1)
- Response time: ≤5ms
- Communication interfaces: 1 Safety Bus communication port, 1 Modbus RTU interface
- Operating temperature range: -20°C to +60°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Physical dimensions: 130mm×100mm×45mm
- Module weight: 0.4kg
- Certification standards: TÜV Rheinland certification, IEC 61508, UL 508
Product Performance
- High safety level control: Reaching SIL 3 and PLe safety levels, dual-channel redundant design ensures single fault does not affect system functions, with probability of dangerous failure (PFH) ≤1×10⁻⁹/h, meeting safety requirements of high-risk industries.
- Fast hazard response: Completes logic judgment and drives output within 5ms after input signal change, which can quickly cut off equipment in hazardous areas in emergency situations, minimizing accident consequences.
- Wide signal compatibility: Supports 8 safety input signals (including emergency stop, safety door, light curtain, etc.), 4 relay outputs can directly control contactors, valves and other actuators without additional conversion components.
- Stable environment adaptation: Maintains logic operation accuracy within -20°C to +60°C, vibration resistance complies with IEC 60068-2-6 standard, adapting to complex vibration environment in factories.
- Convenient maintenance features: Supports online hot-swap replacement, module status is displayed in real time through LED indicators (running/fault/redundancy), and can be remotely diagnosed with Safety Manager software, reducing fault troubleshooting time to within 15 minutes.
