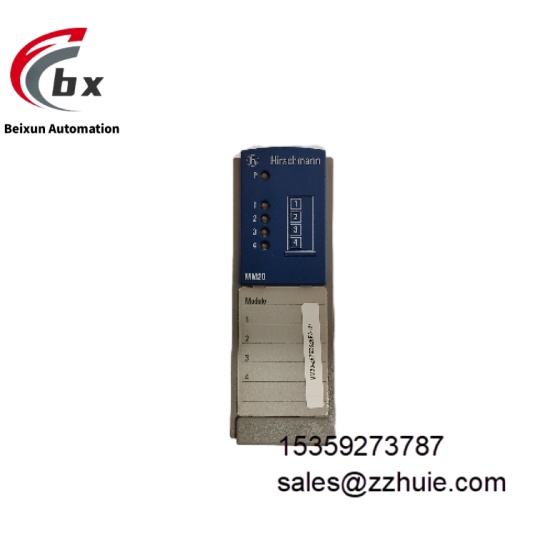

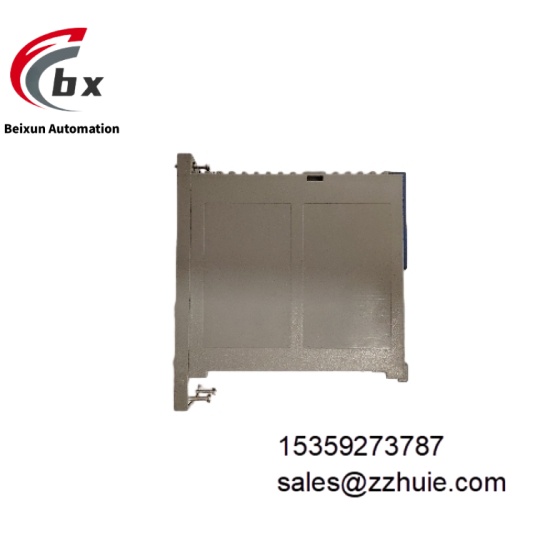

Hirschmann MM20-Z6Z6Z6Z6EAHH Ethernet media module

Specific Parameters

Mechanical Parameters
Dimensions: 40mm (W) × 120mm (H) × 180mm (D), compatible with MS20/30 series switch module slots
Number of Slots: 4 standard SFP slots, supporting hot-swappable replacement of SFP optical modules
Mounting Method: Backplane rail mounting on MS20/30 series switches, fixed via module clips
Housing Material: Flame-retardant ABS engineering plastic, frosted surface, impact-resistant
Weight: Approximately 280g
Protection Class: IP20 (module itself, requiring switch cabinet for overall protection)
Indicators: Power (PWR, green), link status (LINK, green), data transmission (DATA, yellow), full-duplex (FDX, green)
Electrical Parameters
Power Supply: Powered by MS20/30 series host switch backplane, no external independent power interface
Data Rate: Maximum 100Mbps per slot, total bandwidth 800Mbps under full-duplex mode
Signal Type: Supports 100Base-FX fiber optic signals, compatible with single-mode (SM) and multi-mode (MM) SFP modules
Isolation Level: 1.5kV AC (1 minute) electrical isolation between signal ports and backplane circuits
Power Consumption: ≤8W under normal operation, maximum power consumption 27.3BTU/hour
Compatibility: Supports all Hirschmann 100Mbps SFP optical modules, including single-mode long-distance and multi-mode short-distance types
Environmental Parameters
Operating Temperature: 0°C to 60°C (non-condensing, no cooling fan inside, natural heat dissipation)
Storage Temperature: -40°C to 70°C
Relative Humidity: 10% to 95% (non-condensing, continuous operation at 40°C/90% humidity)
EMC Immunity: Complies with EN 55022 Class A conducted/radiated standards, EN 61000-4-2 ESD protection
Vibration Resistance: 10-500Hz, 0.5g acceleration (IEC 60068-2-6 standard)
Shock Resistance: 15g acceleration, 11ms duration (IEC 60068-2-27 standard)
Certification Standards: CE, cUL508 industrial control equipment safety certification, ISA 12.12.01 Class 1 Div 2 hazardous area certification

Product Performance

The module adopts fanless natural heat dissipation design, suitable for enclosed cabinet installation in industrial sites, and can maintain stable operation within the operating temperature range of 0-60°C. The 4 SFP slots work independently, and the failure of a single slot does not affect data transmission of other slots, ensuring strong link redundancy. It supports auto-negotiation function, which can automatically match data rate and duplex mode according to the connected SFP module, without manual configuration.

The hot-swappable function enables online maintenance of the module, with replacement time ≤30 seconds and network interruption time ＜100ms, meeting the high availability requirements of industrial control systems. The diagnostic LED indicators have a response time ≤10ms, which can quickly locate problems such as link interruption and module failure, with fault identification accuracy ≥99%. The communication delay with MS20/30 series switch backplane is ＜1μs, ensuring the timeliness of real-time industrial data transmission.

It is compatible with Hirschmann Industrial HiVision network management software, supporting remote monitoring of module operation status, link quality and SFP module parameters, and active reporting of fault alarm information, adapting to centralized management scenarios of industrial networks.
