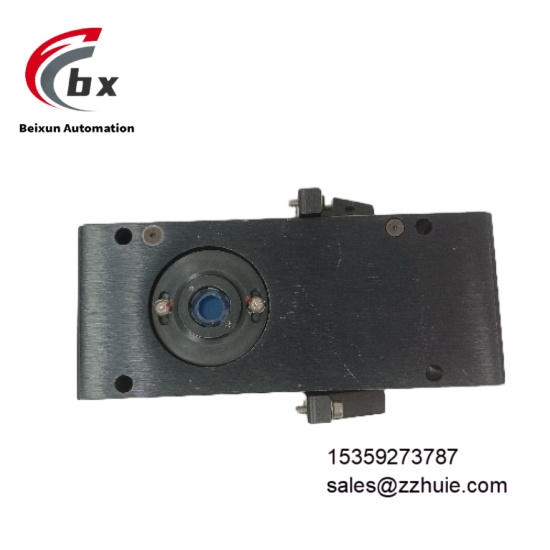

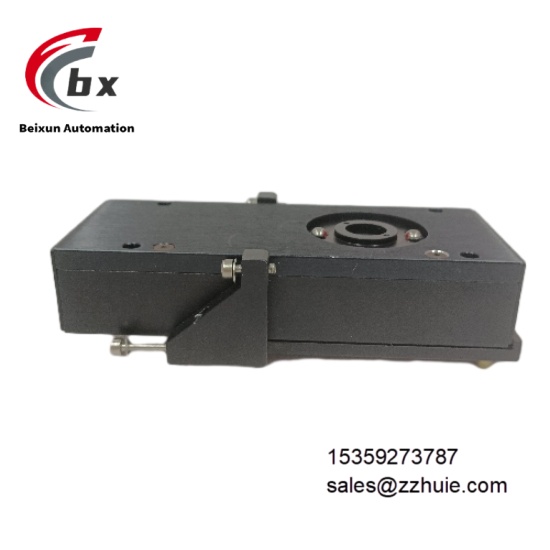

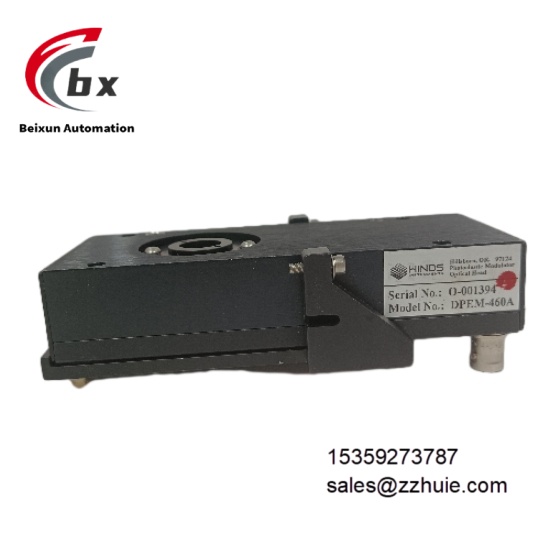

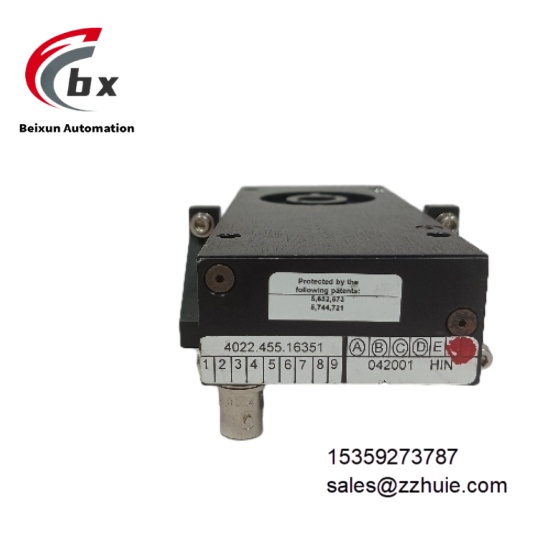

HINDS DPEM-460A Photoelastic modulator electronic head

HINDS DPEM-460A Photoelastic modulator electronic head

Specific Parameters

• Optical ParametersWavelength Coverage Range: 170nm to 10μm (including UV, visible light, infrared and THz bands)Aperture Diameter: 15mm to 30mm (standard specification)Acceptance Angle Range: ±20°Modulation Frequency: 37kHz to 100kHz (adapted to wavelength)Phase Retardation Control: Precise control via adjusting vibration frequency and amplitudePolarization State Output: Supports generation of linearly polarized light and elliptically polarized lightStokes Parameter Sensitivity: 0.0005Stokes Parameter Accuracy Error: ≤1% (UV band)
• Electrical ParametersCommunication Protocol: Supports synchronous control interface with system main control unitSignal Output: Digital modulation control signalPower Supply Voltage: Adapts to industrial standard DC power supply (specific value depends on system configuration)Electrical Isolation: Signal ports with electrical isolation protection
• Environmental ParametersOperating Temperature: -20℃ to 60℃ (non-condensing environment)Storage Temperature: -40℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20Vibration Resistance: Complies with optical instrument-level vibration tolerance standards
• Mechanical ParametersHousing Material: High-rigidity alloy material with anti-corrosion treatmentMounting Method: Modular slot-type mounting, compatible with standard optical instrument racksIndicators: Power, operating status, fault alarm indicatorsConnection Type: Standard optical interface and electrical terminalsOverall Dimensions: Compact design, adapting to installation space of mainstream optical equipment

Product Performance

Excellent modulation precision: Stokes parameter accuracy error ≤1%, sensitivity up to 0.0005, repeatability 3σ≤0.01, enabling micron-level optical parameter measurement error control. Wide wavelength adaptability: 170nm to 10μm broad band coverage, combined with ±20° ultra-large acceptance angle, can adapt to UV spectrum analysis, infrared detection and other scenarios without component replacement.

Outstanding operational stability: Resonance modulation design without moving parts eliminates mechanical wear; integrated high-stability circuits ensure modulation frequency fluctuation ≤0.1% during continuous operation, with Mean Time Between Failures (MTBF) ≥1×10⁴ hours. Fast response speed: Modulation frequency range covers 37kHz to 100kHz, enabling real-time acquisition of more than 100 sets of Stokes parameter sets per second, meeting dynamic measurement requirements.

Strong system compatibility: Modular structure can be directly connected to Hinds polarization state measurement systems, stress birefringence detection equipment, etc., without additional adaptation modules, reducing debugging cycle by more than 50%.
