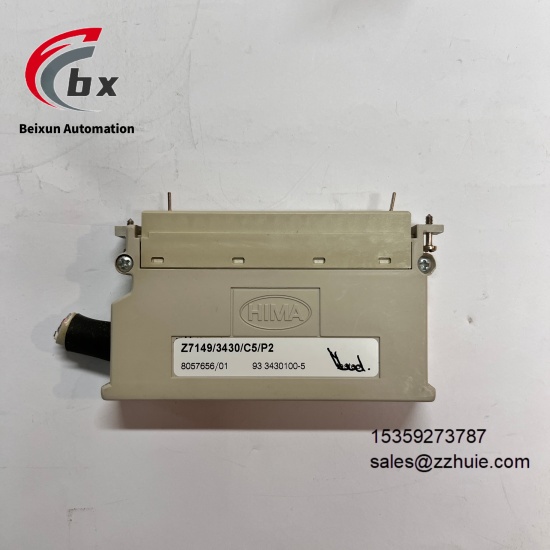

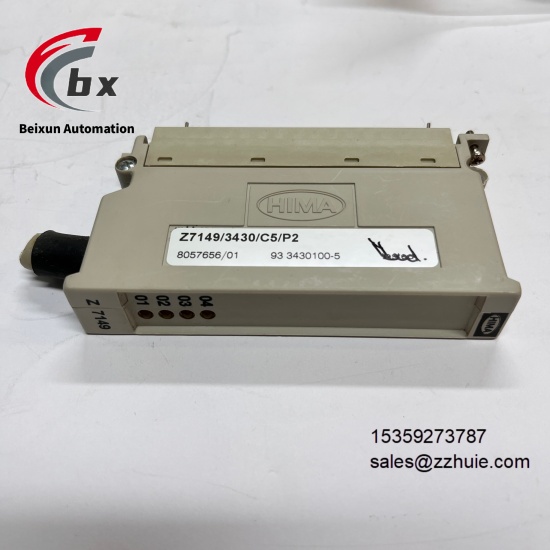

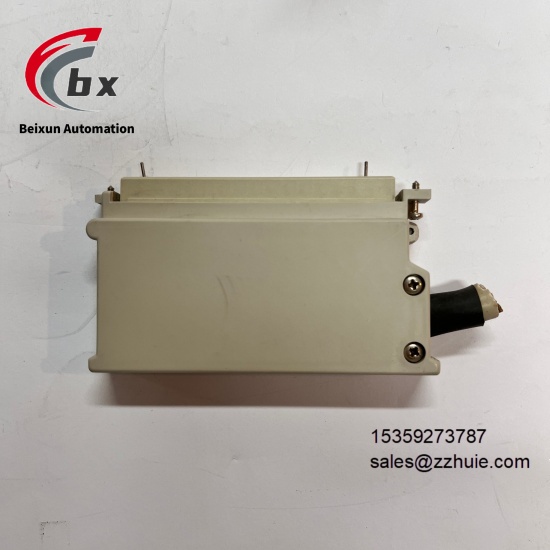

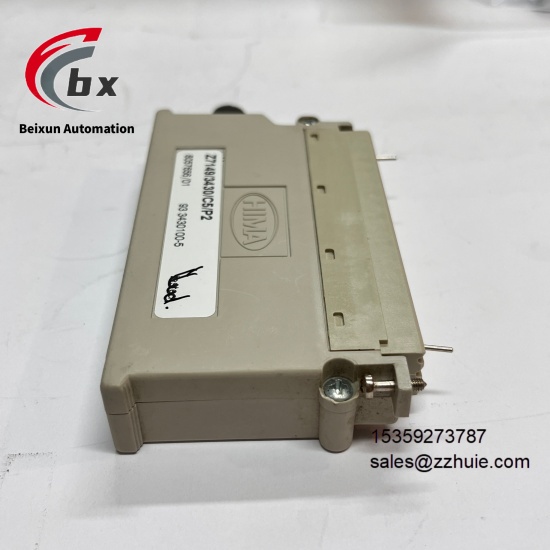

HIMA Z7149 Digital input module

HIMA Z7149 Digital input module

SPECIFIC PARAMETERS​

Brand HIMA​

Product Series Z Series​

Product Type 16-channel Safety Digital Input Module​

Working Voltage 24VDC​

Working Current 120mA@5VDC​

Number of Input Channels 16​

Contact Capacity 10A/250VAC​

Working Temperature 0℃ to 60℃​

Storage Temperature -40℃ to 85℃​

Protection Level IP20​

Safety Level SIL 3 (IEC 61508)​

Supported Protocols PROFIBUS-DP Modbus HIMA Dedicated Redundant Protocol​

Transmission Rate Up to 12Mbps (PROFIBUS-DP)​

Power Consumption Less than 3W​

Size Compact Industrial Module Size Adapt to HIMatrix System Slots​

Weight 0.35kg​

Redundancy Capability Support System-level Redundancy Configuration​

Certification Qualification Industrial Safety Product Certification​

Signal Isolation Built-in Channel-level Electrical Isolation Circuit​

Diagnostic Function Self-diagnosis of Module and Channel Status​

PRODUCT PERFORMANCE​

Adopt 16-channel integrated design, which can realize synchronous acquisition of multi-region digital safety signals and improve system signal access efficiency​

Built-in channel-level electrical isolation circuit, which can effectively block interference signals in industrial sites and ensure the accuracy of safety signal transmission​

Complies with the highest safety level standard of SIL 3, and can be directly applied to high-risk safety control scenarios such as emergency shutdown and fire gas detection​

Integrated with a dedicated communication processor, it can independently complete data interaction tasks without occupying the main control CPU resources, ensuring the timeliness of safety logic execution​

Has a complete self-diagnostic function, which can real-time feedback the operation status of modules and channels to achieve accurate fault location and alarm​

Adopt industrial-grade metal casing, which has excellent electromagnetic interference resistance and heat dissipation performance, and can operate stably in strong electromagnetic environments​

Supports mainstream protocols such as PROFIBUS-DP and Modbus, and can realize seamless data interaction with third-party control systems​

Modular backplane connection design, which can complete module maintenance without interrupting system operation and reduce equipment downtime risk​

Adapt to HIMatrix series safety control systems, can be quickly integrated into existing safety instrumented systems, shortening project commissioning cycle​

Low-power design, the power consumption of less than 3W can reduce the overall energy consumption and heat dissipation pressure of the system​
