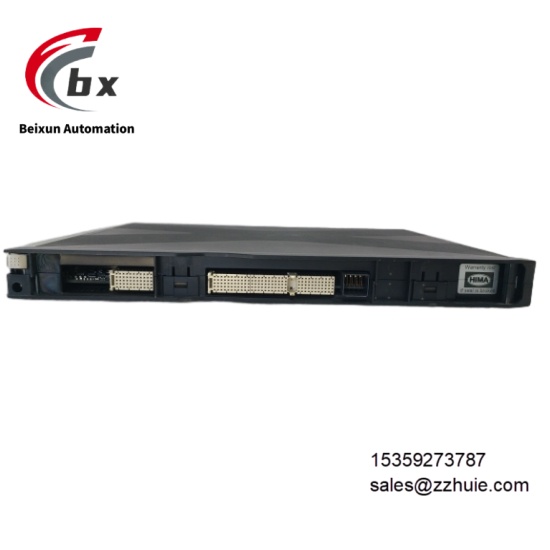

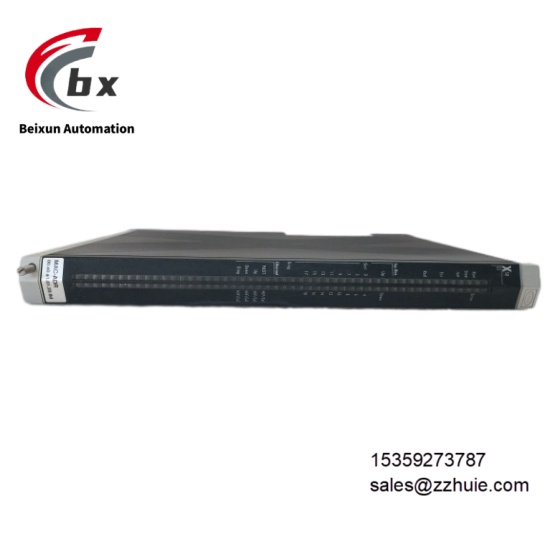

HIMA X-SB01 985210207 System bus module

HIMA X-SB01 985210207 System bus module

SPECIFIC PARAMETERS​

Brand HIMA​

Product Series X-Series Safety Control Auxiliary Module​

Product Type Safety System Modular Base System Bus Module​

Order Number 985210207​

Working Voltage 24VDC​

Maximum Input Current 0.65A​

Protection Level IP20​

Size 23cm×2.92cm×31cm​

Installation Method 35mm DIN Rail Mounting​

Compatible Modules X-CPU01/02 CPU Module PS30 Power Module F3 Series Safety I/O Modules​

Supported Protocols Profinet EtherNet/IP Ethernet​

Safety Level SIL3 (IEC 61508)​

Redundancy Capability Support Dual-base Redundancy Configuration Need to Match F3-BUS Redundant Bus Module​

Communication Method Master-slave Ethernet Communication​

Adapted System HIMatrix F30 Series Safety Controller HIMax Safety System​

Certification Qualification CE RoHS​

Weight 1.2kg​

Electrical Connection Form Gold Finger Connector Spring/Screw Terminal Fixing​

PRODUCT PERFORMANCE​

Provide a standardized physical installation and electrical interconnection platform for the safety control system to ensure the stable integration and coordinated operation of CPU, power supply and I/O modules​

Built-in high-stability backplane bus to realize low-latency data interaction between modules and ensure the real-time response of safety control commands​

Support redundant system construction, dual-base configuration can realize master-slave system undisturbed switching, greatly improving system availability and fault tolerance​

Adapt to module hot-swapping operation, can complete I/O module replacement without interrupting system operation, and shorten equipment downtime​

Adopt anti-seismic gold finger and terminal connection structure to ensure connection stability and signal integrity in industrial strong vibration environment​

Compatible with multiple types of industrial bus protocols, can realize seamless data docking with third-party control systems, improving system integration flexibility​

Industrial-grade wide-temperature adaptation capability, can maintain stable operation in the temperature range of -25℃ to 70℃, meeting the deployment needs of multi-climate industrial scenarios​

Comply with SIL3 safety level standards, and the overall safety integrity will not be reduced after system integration, suitable for the construction of high-risk industrial control links​

Clear slot marking design can guide precise module installation and prevent system failures caused by installation errors​

Low-power passive base design only undertakes signal and power transfer without generating additional energy consumption, ensuring the economy of system operation​
