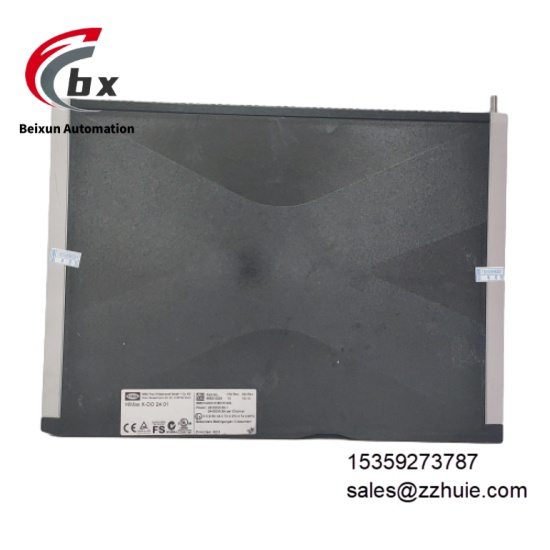

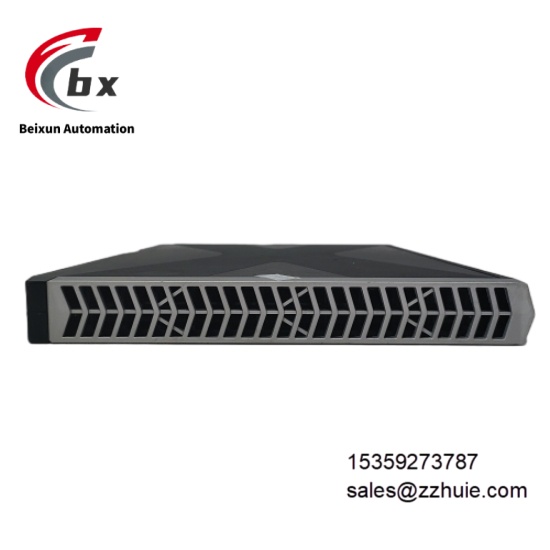

HIMA X-DO2401 985210203 Secure digital output module
Specific Parameters
- Electrical Parameters
Supply Voltage: 24V DC ±10%, supporting 19-28V DC wide voltage input
Output Channels: 24 independent digital outputs, electrical isolation between channels
Output Types: Compatible with relay output and transistor output, supporting dry contact signal output
Output Current: Maximum output current per channel 0.5A, total output current ≤12A
Communication Interfaces: 1 Ethernet interface (supporting PROFINET protocol), 1 RS-485 interface (supporting Modbus RTU protocol), communication rate 10/100Mbps (Ethernet), 9600-115200bps (RS-485)
Isolation Level: Electrical isolation between channels and between channels and bus, isolation voltage 2.5kV AC (1 minute), insulation resistance ≥100MΩ (500V DC)
Protection Functions: Channel short-circuit protection (self-recovery, current limiting 0.6A), power overvoltage protection (32V DC threshold), power reverse connection protection (no damage from -30V DC to +35V DC)
Filter Function: Built-in digital filter, filter time programmable from 0.1ms to 100ms
- Environmental Parameters
Operating Temperature: -25°C to 70°C (non-condensing, no derating during startup from -25°C to 0°C)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation for 72 hours at 90% humidity and 40°C without failure)
EMC Immunity: Complies with EN 61326-1 Class A industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge), RF radiation protection ≤54dBμV/m (30MHz-1GHz)
Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6 standard, sinusoidal vibration, each axis tested)
Protection Class: IP20 (module itself, requires HIMax system cabinet for overall protection)
Certification Standards: IEC 61508 SIL 3 certification, IEC 61511 certification, UL 508S certification, ATEX Zone 2 explosion-proof certification
- Mechanical Parameters
Dimensions: 230mm (L) × 29.2mm (W) × 310mm (H, including terminals)
Weight: Approximately 1.4kg (module itself), 2.5kg (shipping weight including packaging)
Mounting Method: 35mm DIN rail snap-on mounting (compliant with EN 60715 standard) or HIMax system cabinet slot mounting, supporting hot swapping
Housing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade, oil-resistant surface coating)
Terminal Type: Spring-loaded crimp terminals (compatible with 16-24 AWG wires, tool-free wiring)
Indicators: Power Status (PWR, green, steady on for normal), Communication Status (COM, green, blinking for normal communication), Channel Status (24 green LEDs, on for valid output), Fault Status (ERR, red, steady on for module fault)
Product Performance
The module is certified to IEC 61508 SIL 3, with a safety integrity level meeting the requirements of safety-critical scenarios such as Emergency Shutdown (ESD) and fire alarm. The 24-channel independent isolation design ensures that a single channel fault does not affect other channels, with a fault isolation rate of 100%.
The output signal response time is ≤1ms (when filter time is 0.1ms), which can quickly execute controller instructions and avoid safety risks caused by action delay. The digital filter function can effectively suppress electromagnetic interference in industrial environments, ensuring the stability of output signals.
The fault diagnosis coverage is ≥99%, which can real-time detect faults such as channel short circuit, open circuit, power undervoltage and communication interruption. Fault information is uploaded to the safety controller in real time via Ethernet, and the local fault indicator is triggered simultaneously. The module’s Mean Time Between Failures (MTBF) is ≥1,000,000 hours (25℃ environment), adapting to 24/7 continuous production scenarios.
It supports hot-swapping operation, with a module replacement time of ≤15 seconds. During replacement, the controller automatically maintains the output state without restarting the system. It is compatible with all series of HIMA HIMax safety controllers, and output types, filter time and fault alarm logic can be flexibly configured via configuration software to adapt to different on-site equipment requirements.
