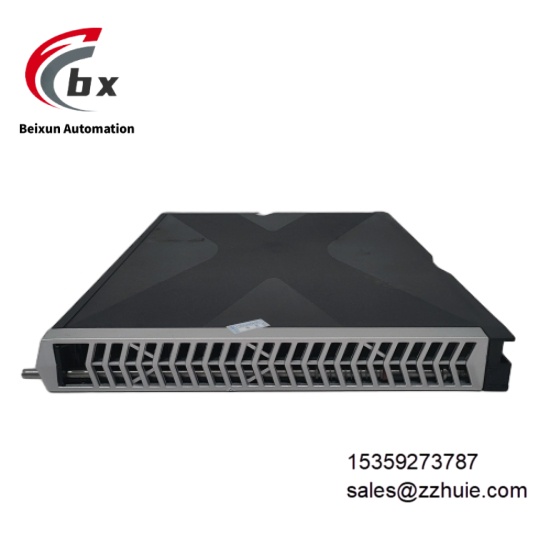

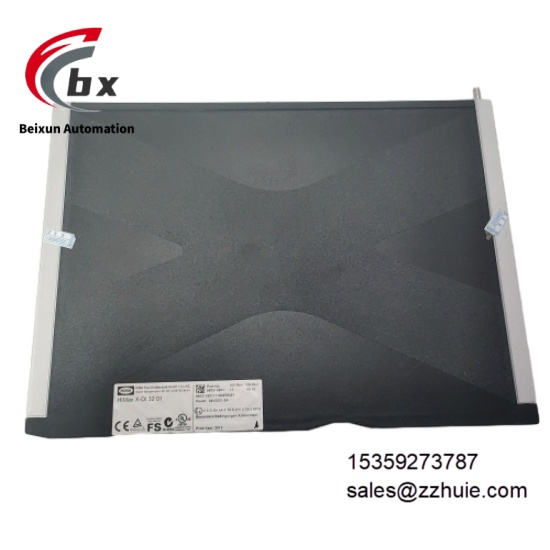

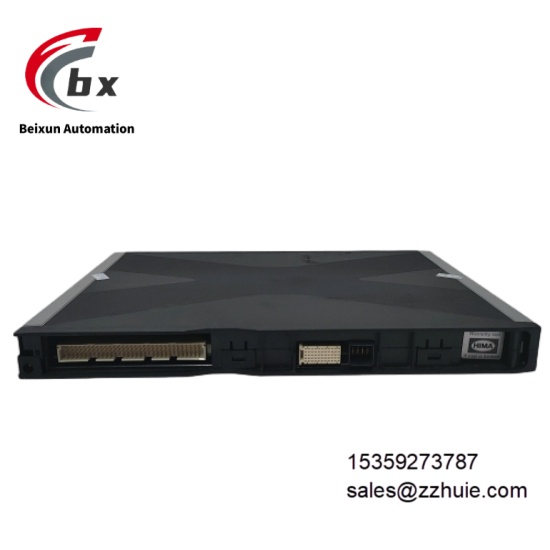

HIMA X-DI3201 985210201 Digital input module
Specific Parameters
- Electrical Parameters
Supply Voltage: 24V DC ±10%, supporting 19-28V DC wide voltage input
Input Channels: 32 independent digital inputs, electrical isolation between channels
Signal Types: Compatible with dry contacts (passive), PNP active signals (high-level active), NPN active signals (low-level active), supporting 24V DC signal voltage
Input Current: ≤5mA (at 24V DC) for dry contact mode, ≤10mA for active signal mode
Communication Interfaces: 1 RS-485 serial port (supporting Modbus RTU protocol), 1 HIMA dedicated safety bus interface, communication rate adjustable 9600-115200bps
Isolation Level: Optoelectronic isolation between channels and between channels and bus, isolation voltage 2.5kV AC (1 minute), insulation resistance ≥100MΩ (500V DC)
Protection Functions: Power reverse connection protection (no damage from -30V DC to +35V DC), channel short-circuit protection (self-recovery, short-circuit current ≤30mA), overvoltage protection (32V DC threshold)
Filter Function: Built-in digital filter, filter time programmable from 0.1ms to 100ms
- Environmental Parameters
Operating Temperature: -25°C to 70°C (non-condensing, no derating during startup from -25°C to 0°C)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation for 72 hours at 90% humidity and 40°C without failure)
EMC Immunity: Complies with EN 61326-1 Class A industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge), RF radiation protection ≤54dBμV/m (30MHz-1GHz)
Vibration Resistance: 10-500Hz, 1g acceleration (IEC 60068-2-6 standard, sinusoidal vibration, each axis tested)
Shock Resistance: 30g acceleration, 11ms duration (IEC 60068-2-27 standard, half-sine shock, 3 times per axis)
Protection Class: IP20 (module itself, requires HIMax system cabinet for overall protection)
Certification Standards: IEC 61508 SIL 3 certification, IEC 61511 certification, UL 508S (industrial safety control equipment), ATEX Zone 2 explosion-proof certification
- Mechanical Parameters
Dimensions: 230mm (L) × 29.2mm (W) × 310mm (H, including terminals)
Weight: Approximately 1.4kg (module itself), 2.5kg (shipping weight including packaging)
Mounting Method: 35mm DIN rail snap-on mounting (compliant with EN 60715 standard) or HIMax system cabinet slot mounting, supporting hot swapping
Housing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade, oil-resistant surface coating)
Terminal Type: Spring-loaded crimp terminals (compatible with 16-24 AWG wires, tool-free wiring)
Indicators: Power Status (PWR, green, steady on for normal), Bus Communication Status (BUS, green, blinking for normal communication), Channel Status (32 green LEDs, on for valid signal), Fault Status (ERR, red, steady on for module fault)
Product Performance
The module is certified to IEC 61508 SIL 3, with a safety integrity level meeting the requirements of safety-critical scenarios such as Emergency Shutdown (ESD) and fire alarm; the 32-channel independent isolation design ensures that a single channel fault (e.g., short circuit, open circuit) does not affect other channels, with a fault isolation rate of 100%.
The digital signal response time is ≤1ms (when filter time is 0.1ms), which can quickly capture changes in on-site equipment status and avoid safety risks caused by signal delay; the built-in digital filter function can effectively suppress electromagnetic interference in industrial environments, with signal jitter filtering accuracy ≤0.1ms, ensuring the accuracy of signal acquisition.
The fault diagnosis coverage is ≥99.5%, which can real-time detect faults such as channel open circuit, short circuit, power undervoltage, and communication interruption. Fault information is uploaded to the HIMax controller in real time via the safety bus, and the local fault indicator is triggered simultaneously; the module’s Mean Time Between Failures (MTBF) is ≥1,200,000 hours (MIL-HDBK-217F, 25℃ environment), adapting to 24/7 continuous production scenarios.
It supports hot-swapping operation, with a module replacement time of ≤15 seconds. During replacement, the controller automatically maintains the channel history status without restarting the system; it is compatible with all series of HIMA safety controllers, and signal types, filter time, and fault alarm thresholds can be flexibly configured via configuration software to adapt to different on-site equipment requirements.
