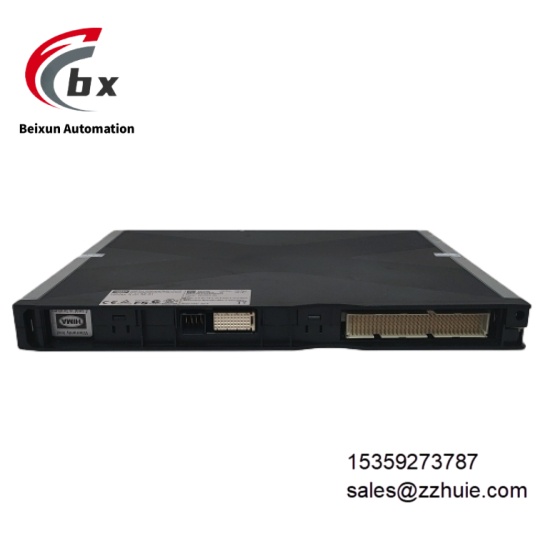

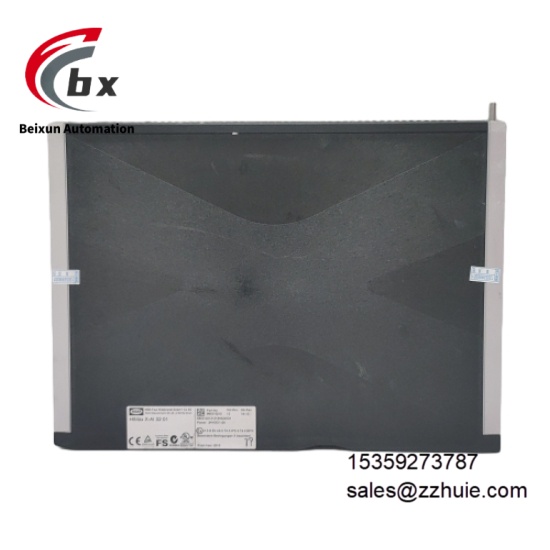

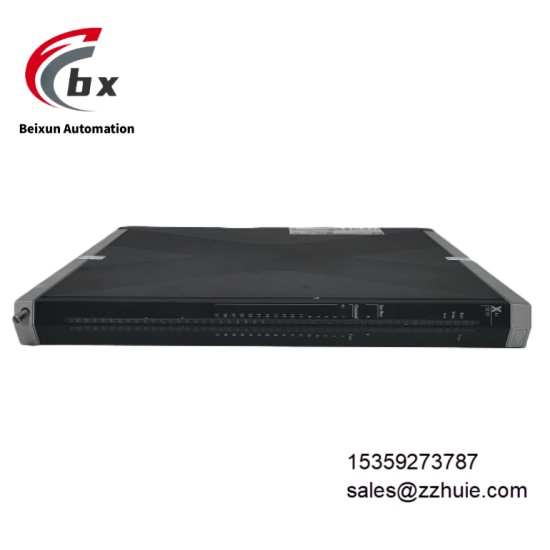

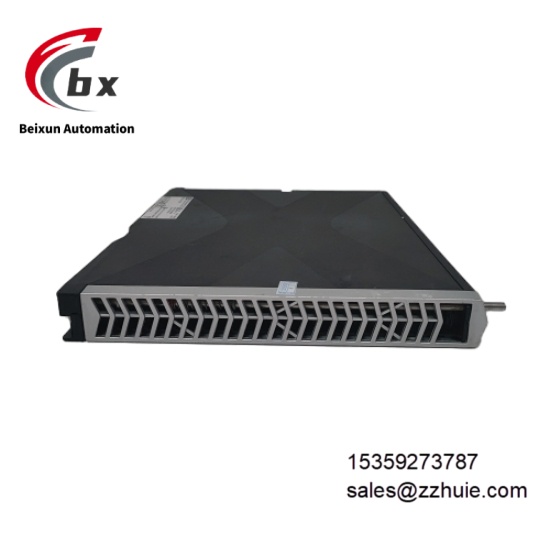

HIMA X-AI3201 985210213 Analog input module
Specific Parameters
- Electrical Parameters
Supply Voltage: 24V DC, maximum current input 500mA (without channel/transmitter power), 1.5A (when transmitter power is short-circuited)
Signal Input: Supports voltage (0-10V DC), current (4-20mA), thermocouple (K/J type), RTD (Pt100) signals
Channel Configuration: 32 independent analog input channels, electrical isolation between channels
Communication Interface: 1 RS-485 interface, supporting Modbus RTU protocol, communication rate adjustable 9600-115200bps
Conversion Accuracy: ±0.1% full scale (current/voltage signals), ±0.2°C (Pt100 signals, -50°C to 200°C range)
Isolation Level: Electrical isolation between input channels and communication circuit (2.5kV AC/1 minute)
Protection Functions: Channel short-circuit protection (current limiting 50mA), overvoltage protection (30V DC threshold, self-recovery), power reverse connection protection
Configuration Support: Compatible with HIMA HIMax Engineering Studio configuration software, supporting independent channel parameter configuration
- Environmental Parameters
Operating Temperature: -25°C to 70°C (non-condensing)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Immunity: Complies with EN 61326-1 Class A standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge)
Protection Class: IP20 (module itself, requires system cabinet for overall protection)
Certification Standards: IEC 61508 SIL 3 certification, IEC 61511 certification, UL 508S certification
- Mechanical Parameters
Dimensions: 23cm (L) × 2.92cm (W) × 31cm (H)
Weight: Approximately 1.4kg, shipping weight 2.5kg
Mounting Method: DIN rail mounting or system cabinet slot mounting, supporting hot swapping
Housing Material: Flame-retardant reinforced plastic (UL 94 V-0 grade)
Indicators: Power Status (PWR, green steady on), Channel Status (CH1-CH32, green steady on for normal signal), Fault Status (ERR, red steady on for module fault)
Product Performance
The module is certified to IEC 61508 SIL 3, with a safety integrity level meeting signal acquisition requirements in high-risk industrial scenarios. The channel-level isolation design avoids signal interference, and a single channel fault does not affect other channels. The signal conversion response time is <1ms, which can quickly capture changes in on-site parameters, adapting to real-time control scenarios such as emergency shutdown (ESD).
It integrates channel-level diagnostic functions, which can real-time monitor faults such as open circuit, short circuit, and signal over-limit, with a diagnostic coverage of ≥99%. Fault information is uploaded to the SIS system in real time via RS-485 bus, ensuring timely handling of abnormal signals. High-precision A/D conversion chips are adopted, with conversion accuracy stable at ±0.1% in the full range, ensuring the accuracy of signal acquisition.
It supports hot swapping and modular expansion, with a maximum of 8 modules cascaded in a single system, expanding to 256 analog input channels. No shutdown is required during maintenance, adapting to 24/7 continuous production scenarios. The industrial-grade anti-EMC design ensures stable operation in high-interference environments such as frequency converters and large motors, with a Mean Time Between Failures (MTBF) ≥1,000,000 hours (25℃ environment).
