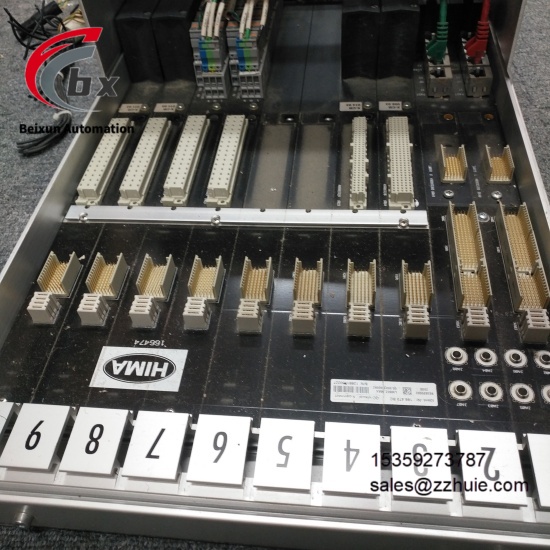

HIMA LM002_MAX 985020002 Core framework of security control system

HIMA LM002_MAX 985020002 Core framework of security control system

SPECIFIC PARAMETERS​

Brand HIMA​

Product Series HIMax Series​

Product Type Safety Control System Core Framework​

Order Number 985020002​

Processor Dual-core ARM Cortex A9 800MHz​

Memory 1GB DDR3 RAM​

Storage 4GB eMMC Built-in Storage Support Expansion to 32GB​

Communication Interface 2 Ethernet Interfaces 2 RS485 Interfaces 1 USB Interface​

Working Voltage 24VDC​

Power Consumption ≤25W​

Working Temperature -20℃ to +60℃​

Storage Temperature -40℃ to +85℃​

Size 100mm×220mm×120mm​

Weight 1.5kg​

Installation Method Rack-mounted Installation​

Compatible Modules All Series of HIMA Safety I/O Modules Communication Modules​

Safety Feature Support SIL 3 Level Safety Control Logic​

Data Processing Capability 1000 I/O Points Cycle Scan Time 50ms 1000 PID Calculation Time 5ms​

PRODUCT PERFORMANCE​

Equipped with dual-core ARM Cortex A9 processor, it can efficiently complete complex safety control logic operations and ensure the rapid response of control commands​

Built-in 1GB DDR3 memory and 4GB eMMC storage, supports storing large-capacity control programs and historical operation data, and can be expanded to 32GB​

Equipped with multiple types of communication interfaces, it can realize seamless data interaction with on-site equipment and upper-level systems, improving system integration flexibility​

The cycle scan time of 1000 I/O points is only 50ms, and the calculation time of 1000 PID is 5ms, which can meet the real-time requirements of large-scale safety control scenarios​

Adopts modular architecture design, can combine various safety modules on demand, realizing flexible configuration and function expansion of the control system​

Has complete system diagnosis function, can real-time feedback module operation status, and achieve accurate fault location and alarm​

Uses industrial-grade wide-temperature components, which can operate continuously and stably in the temperature range of -20℃ to +60℃​

Low-power design, the power consumption of ≤25W can reduce the overall energy consumption and heat dissipation pressure of the system​

Compatible with all series of HIMA safety modules, can quickly build a high-reliability safety instrumented system, shortening project deployment cycle​

Has high anti-electromagnetic interference capability, can ensure system stable operation in strong industrial interference environment​
