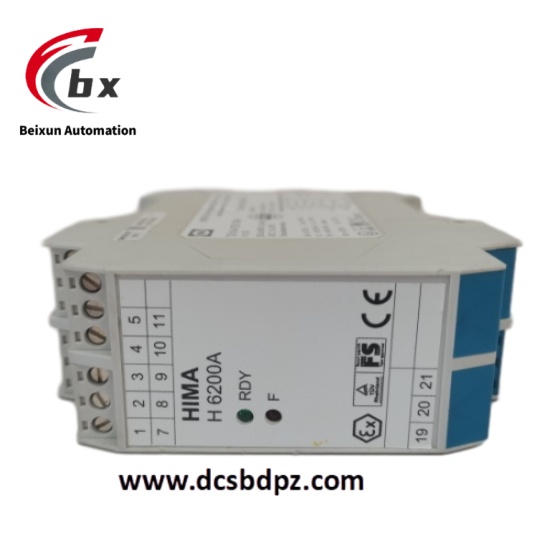

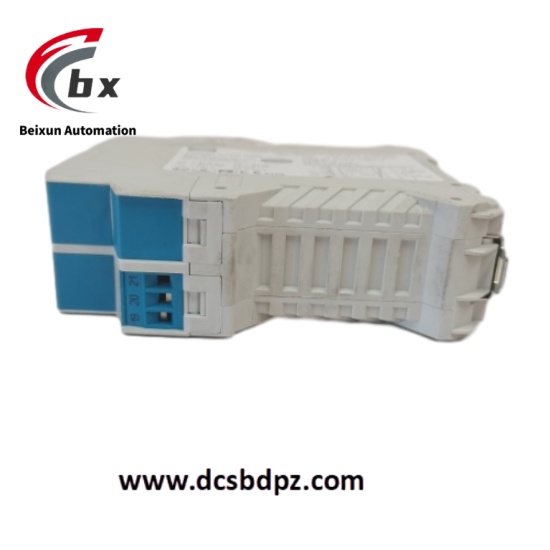

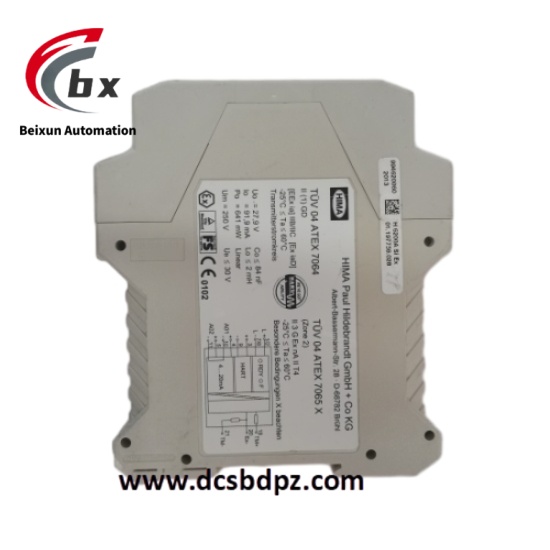

HIMA H6200A Central Processing Unit (CPU) module

HIMA H6200A Central Processing Unit (CPU) module

Specific Parameters​

• Electrical Parameters​

Supply Voltage: 24V DC ±10%, supporting 19-28V DC wide voltage input​

Processor: ARM Cortex-A9 dual-core processor, 800MHz clock speed​

Memory Configuration: 512MB DDR3 SDRAM (operating memory), 1GB Flash ROM (program storage, expandable to 4GB)​

Communication Interfaces: 2 Gigabit Ethernet interfaces (RJ45, supporting EtherNet/IP, PROFINET, Modbus TCP), 2 RS485 serial ports (supporting Modbus RTU, 9600-115200bps adjustable), 1 redundant synchronization interface (for dual-channel data synchronization)​

Power Consumption: ≤25W under normal operation, ≤30W under full-load logic execution​

Isolation Level: Electrical isolation between power supply and I/O circuits (2.5kV AC/1 minute), optoelectronic isolation for communication interfaces (1kV AC/1 minute)​

Protection Functions: Overvoltage protection (32V DC threshold, self-recovery), overcurrent protection (2A current limiting, restarts after fault elimination), short-circuit protection (cuts off output when bus or power supply is short-circuited)​

Logic Execution: Supports IEC 61131-3 standard programming languages (LD, FBD, ST), minimum logic execution cycle ≤1ms​

• Environmental Parameters​

Operating Temperature: -40°C to 70°C (non-condensing, no derating during startup from -40°C to 0°C)​

Storage Temperature: -55°C to 85°C​

Relative Humidity: 5% to 95% (non-condensing, continuous operation for 72 hours at 90% humidity and 40°C without failure)​

EMC Immunity: Complies with EN 61326-1 Class A industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge), RF radiation protection ≤54dBμV/m (30MHz-1GHz)​

Vibration Resistance: 10-500Hz, 1.5g acceleration (IEC 60068-2-6 standard, sinusoidal vibration, each axis tested)​

Shock Resistance: 30g acceleration, 11ms duration (IEC 60068-2-27 standard, half-sine shock, 3 times per axis)​

Protection Class: IP20 (module itself, requires HIQuad X system cabinet for overall protection)​

Certification Standards: IEC 61508 SIL 3 certification, ATEX Zone 2 explosion-proof certification, IECEx certification, UL 508S (industrial safety control equipment)​

• Mechanical Parameters​

Dimensions: 482.6mm (W, 19-inch standard rack width) × 132mm (H, 3U height) × 200mm (D, including connectors)​

Weight: Approximately 1.5kg​

Mounting Method: 19-inch standard rack mounting (3U height slot), supporting hot swapping​

Housing Material: Flame-retardant reinforced aluminum alloy (anodized surface treatment, UL 94 V-0 grade)​

Terminal Type: Ethernet with RJ45 interfaces (compatible with CAT5e/CAT6 cables), power supply and serial ports with Phoenix terminals (compatible with 16-24 AWG wires, screw-fastened)​

Indicators: Power Status (PWR, green, steady on for normal), Operation Status (RUN, green, 1Hz blinking for normal), Redundancy Status (RED, yellow, steady on for redundancy activation), Fault Status (ERR, red, steady on for fault), Communication Status (COM, bi-color LED, green blinking for normal communication)​

Product Performance​

The module is certified to IEC 61508 SIL 3, with a safety integrity level meeting the safety control requirements of high-risk industries; the dual-channel redundant architecture achieves fault tolerance, with a switching time of ≤10ms when a single channel fails, no interruption of logic execution, and ensures that safety functions such as emergency shutdown and interlock protection do not fail.​

The minimum logic execution cycle is ≤1ms, which can quickly respond to on-site fault signals (e.g., excessive pressure, temperature overrun), and the total delay from signal acquisition to command issuance is ≤5ms, meeting real-time safety control requirements. The built-in hardware-level fault diagnosis circuit has a diagnostic coverage of ≥99.9%, and can identify 12 types of faults such as processor abnormalities, memory errors, and communication interruptions. Fault information is uploaded to the monitoring system in real time via Ethernet.​

It supports online configuration download and module hot swapping, requiring no shutdown during maintenance and adapting to 24/7 continuous production scenarios; the industrial-grade wide-temperature design and anti-EMC capability ensure stable operation in high-temperature and strong electromagnetic environments (e.g., around frequency converters, large motors), with a Mean Time Between Failures (MTBF) ≥1,200,000 hours (MIL-HDBK-217F, 25℃ environment).​
