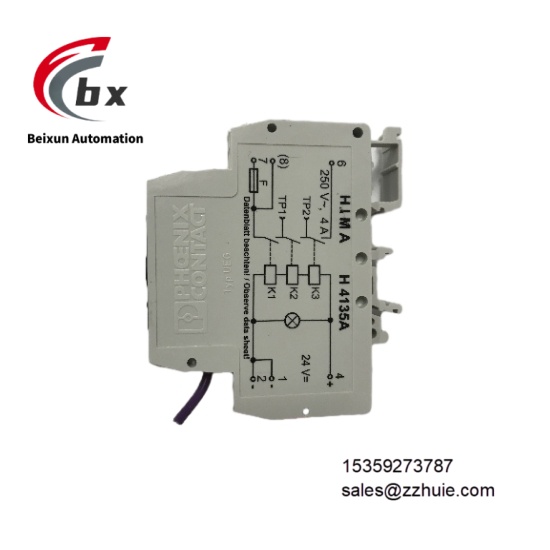

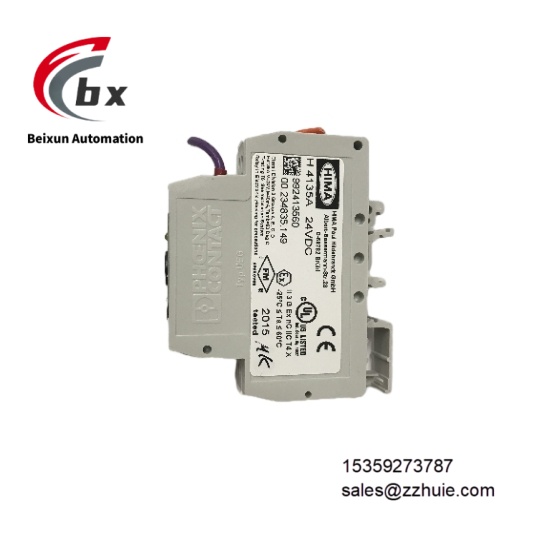

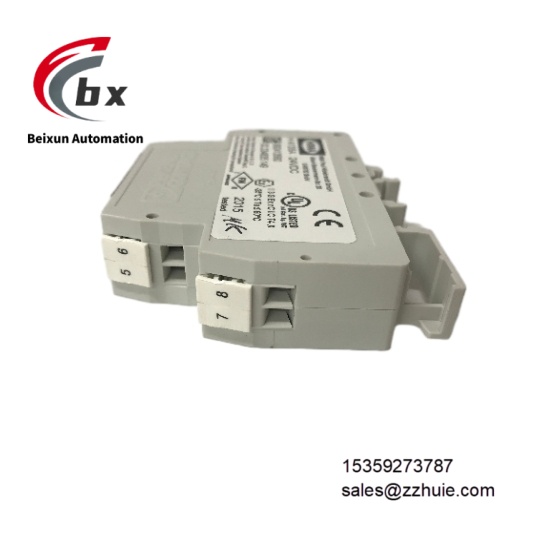

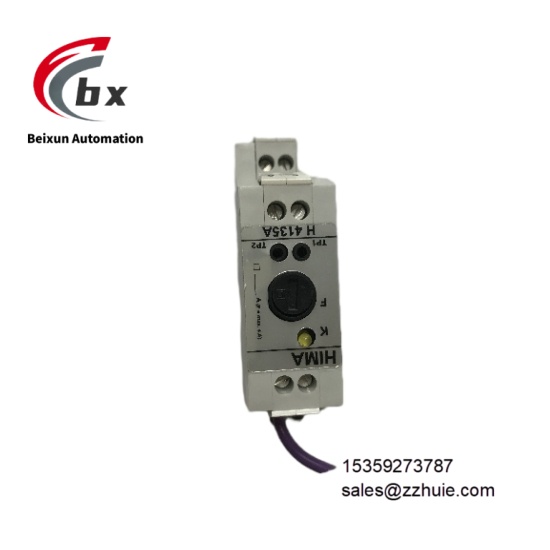

HIMA H4135A 992413560 Safety relay module

HIMA H4135A 992413560 Safety relay module

SPECIFIC PARAMETERS​

Brand HIMA​

Product Series HIMatrix Series​

Product Type Safety Relay Module​

Order Number 992413560​

Working Voltage 24VDC 48VDC​

Working Current Maximum 50mA​

Switching Current Maximum 16A​

Contact Configuration 2 Normally Open Contacts 2 Normally Closed Contacts​

Number of Safety Input Channels 3​

Number of Safety Output Channels 1​

Response Time Less than 20 Milliseconds​

Working Temperature -20℃ to +60℃​

Storage Temperature -40℃ to +80℃​

Protection Level IP20 IP67 for Some Scenarios​

Safety Certification SIL 3 (IEC 61508) Category 4 (EN ISO 13849-1)​

MTBF Greater than 100 Years​

Size 80mm×100mm×30mm​

Weight 0.3kg​

Compatible Protocol PROFINET​

Power Consumption Low Power Consumption Design​

Redundancy Capability Support Safety Loop Redundancy Configuration​

Place of Origin Germany​

PRODUCT PERFORMANCE​

Adopt dual-channel architecture, which can realize non-disturbance fault-tolerant operation under safety side faults and ensure the uninterrupted operation of the safety control link​

Has a large switching current of 16A, which can directly drive industrial-grade actuators to complete safety interlock actions​

Response time is less than 20 milliseconds, which can quickly trigger key safety commands such as emergency shutdown and reduce the impact of dangerous working conditions​

Complies with the highest safety level standards of SIL 3 and Category 4, and can be adapted to various high-risk industrial control scenarios​

Supports redundant configuration, can build a dual-loop safety voting architecture to improve the reliability of the safety control system​

Has a complete fault self-test function, which can real-time feedback the safety status of modules and channels to achieve accurate fault location​

Uses industrial-grade wide-temperature components, which can operate stably in extreme temperature environments of -20℃ to +60℃​

Has intrinsic safety explosion-proof capability, can be directly applied to flammable and explosive dangerous industrial environments​

Seamlessly compatible with HIMatrix series safety systems, can be quickly integrated into existing safety control loops​

MTBF is greater than 100 years, with ultra-high reliability, which greatly reduces system maintenance frequency and cost​
