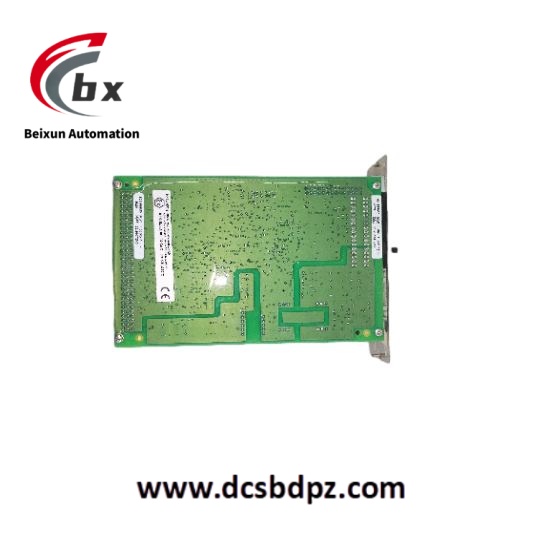

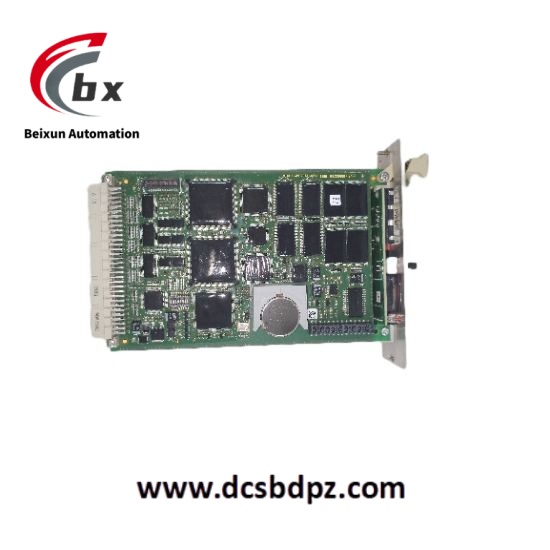

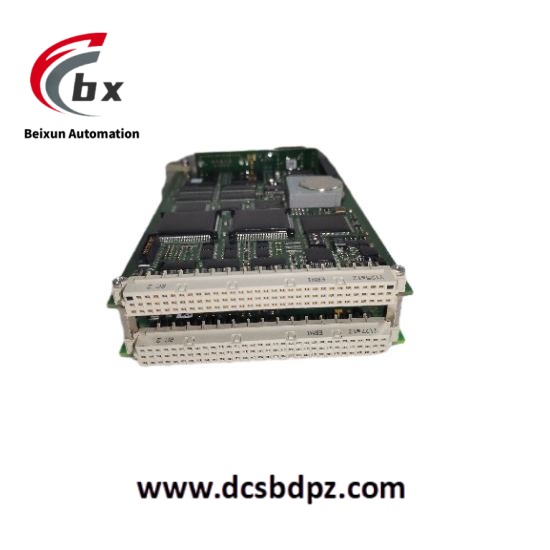

HIMA F8650X Programmable controller

Specific parameters
Processor: Dual core Intel 386EX microprocessor, 32-bit, 25MHz main frequency; Or based on Intel Core i7-7820HQ or ARM Cortex-A9 processors, with a clock speed of up to 1.2GHz.
Memory: 1MB Flash EPROM for operating system and user programs, 1MB SRAM for data storage; Or equipped with 8GB DDR4-2133 ECC memory and 128GB M.2 SATA SSD storage.
Communication interface: 2-channel RS-485 serial interface, electrically isolated, optional baud rate of 9600/57600bps, supports Modbus RTU/ASCII protocol; Reserved Ethernet expansion interface, to be paired with F8627X communication module, supporting Modbus TCP/IP protocol. Some products support interfaces such as Ethernet, USB, RS-232, etc.
Electrical parameters: 5V DC power supply, peak power consumption of 10W, built-in overvoltage/overcurrent protection circuit, operating voltage range of 4.75V-5.25V.
I/O capability: Supports up to 32 digital I/O and 16 analog I/O, expandable to 2048 digital input/output points and 512 analog input/output points through the HIMA H51q bus.
Environmental parameters: Operating temperature -20 ℃ to+60 ℃ or -40 ° C to+85 ° C, IP20 or IP65 protection level, anti electromagnetic interference level EN 61000-6-2 (level 4), able to withstand 95% humidity and strong vibration environment.

Product Performance
high reliability
Redundancy design: Adopting dual core CPUs to synchronously run the same control logic, monitoring the status of the other party in real time through heartbeat signals, seamless switching in case of single core failure, system availability reaches 99.9999%. The communication link and power supply also support redundancy. When the main channel or power supply fails, the backup channel or power supply can quickly take over to ensure the continuous operation of the system.
Strict testing: After strict quality control and testing, including hardware self check, software watchdog and other functions, it can operate stably in harsh industrial environments and effectively respond to various faults and abnormal situations.
Powerful data processing capability: Equipped with high-performance processors and sufficient memory, it can quickly and efficiently process large amounts of security control logic and data, meeting the real-time requirements of complex industrial applications.
Intelligent diagnosis and fault tolerance

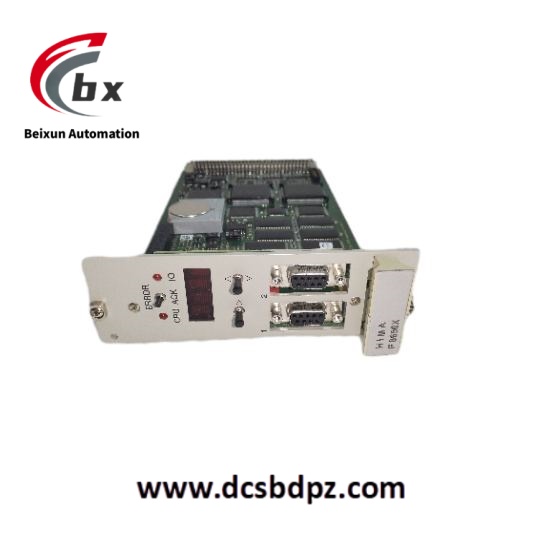

Hardware self-test: automatically detects the status of CPU, memory, communication interfaces, etc. when powered on. When there is a fault, an error code is output through a 4-digit matrix display screen, which facilitates maintenance personnel to quickly locate the problem.
Software watchdog: Built in security watchdog, automatically resets the CPU when the program runs out, and the reset time can be configured to ensure system stability.
Data verification: CRC-16 verification algorithm is used to verify the integrity of the program storage area and data storage area in real time. When errors are detected, they are automatically restored from the backup area to ensure the accuracy and integrity of the data.
Flexible programming and extensions
Programming language: Supports multiple programming languages such as IEC 61131-3 standard ladder diagram (LD), structured text (ST), functional block diagram (FBD), etc., compatible with mainstream development environments such as STEP 7 and CODESYS, making it convenient for engineers to program according to specific needs.
I/O Expansion: A large number of digital and analog I/O points can be expanded through the HIMA H51q bus to meet the requirements of large safety control systems for input and output points.
Protocol compatibility: Supports mainstream industrial protocols such as Modbus, PROFIBUS-DP, CANopen, etc., and can seamlessly integrate with equipment from manufacturers such as Siemens, Schneider, ABB, etc., facilitating system integration and interconnection.
