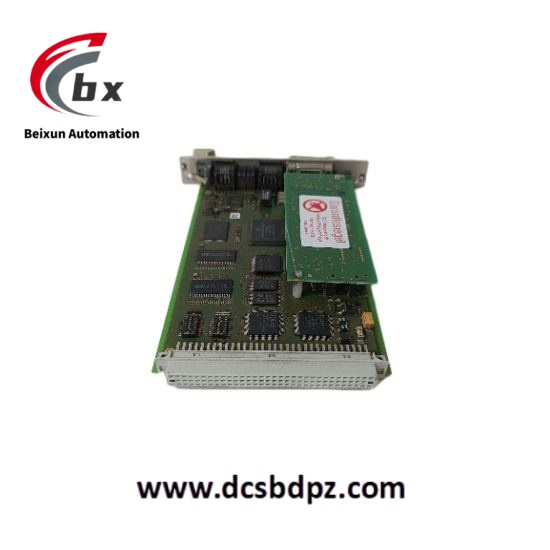

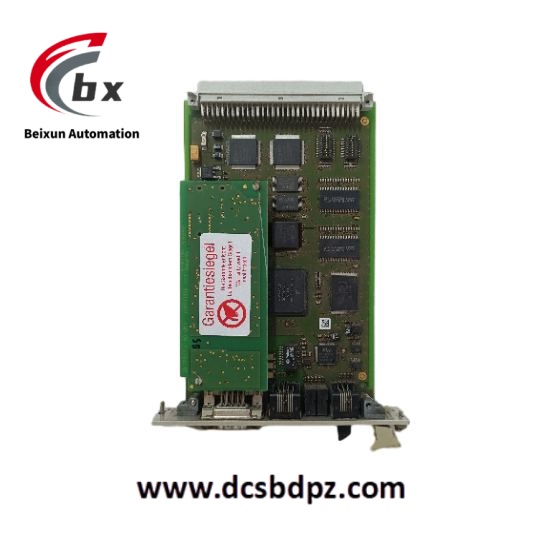

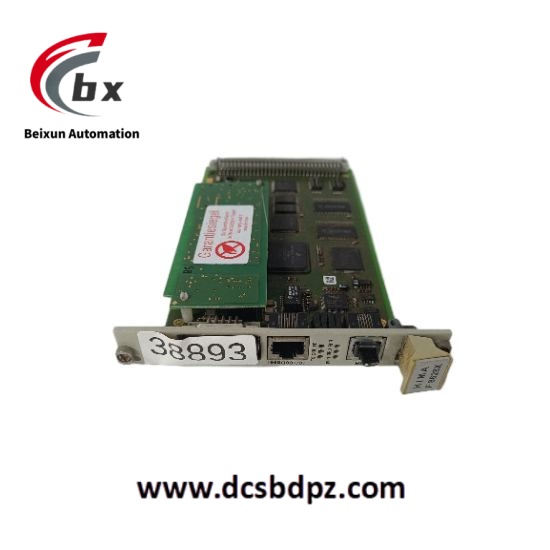

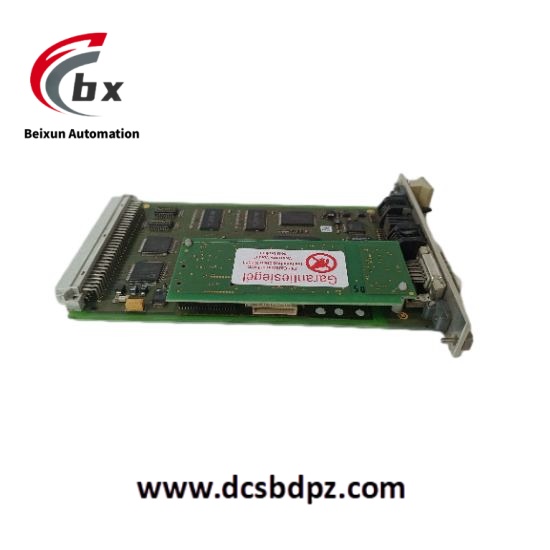

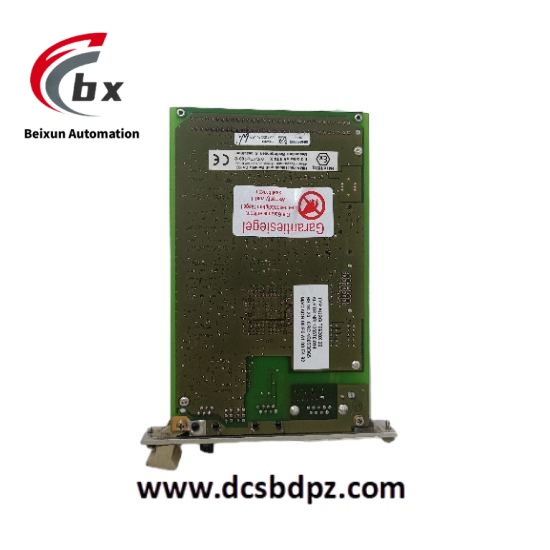

HIMA F8628X Safety controller module

Processor: Dual core ARM Cortex-R52 architecture, main frequency 1.2GHz, basic logic scan cycle ≤ 20ms (single task mode)
Memory and storage: onboard 512MB DDR4 RAM (with ECC error correction), built-in 8GB eMMC flash memory (firmware and program storage)
I/O Capacity: Supports up to 512 secure I/O points (digital/analog), modular expansion, and supports 16 modules per rack
Redundant configuration: Dual channel redundancy (1oo2D architecture), with a fault switching time of ≤ 100ms
Power Requirements: Input Voltage: 24VDC ± 10% – Typical Power Consumption: 8W (Static)/15W (Peak)
Safety level: SIL 3 (IEC 61508 single system), PL d（ISO 13849）
Diagnostic coverage rate: ≥ 90% (hardware fault self-test), real-time monitoring of CPU, memory, and power status
Network security: Basic firewall (IP/MAC filtering), supports VPN tunneling (requires external encryption module)
Certification standards: T Ü V Rheinland SIL3 certification (No. SIL3-04572-2024) – CE, UL, ATEX Zone 2
Built in interface: 2 x 10/100Mbps Ethernet (Modbus TCP, OPC UA) -1 x RS-485 (supports HART protocol)
Expansion module: PROFIBUS DP slave module (F-CPB-01) – fiber optic communication module (F-FOC-02, maximum 10km)
Protocol compatibility: Industrial protocols: PROFIBUS, Modbus RTU/TCP – Safety protocols: PROFIsafe, FSoE (optional)
Working temperature -25 ° C to+60 ° C (non condensing)
Protection level: IP54 (dustproof and splash proof)
Seismic performance: Complies with IEC 60068-2-6 standard (5-9Hz/3.5mm amplitude, 9-150Hz/1g acceleration)
Humidity range: 5% -95% relative humidity (non condensing)

Product Performance
High reliability: Adopting advanced design and manufacturing processes, it has high reliability and stability, and can operate stably for a long time in harsh industrial environments, meeting the strict requirements of industrial automation systems for reliability.
Strong processing capability: With high-speed processing chips and optimized algorithms, it can quickly handle various complex control tasks and data, achieve precise control and real-time response, and ensure the efficient operation of industrial production processes.
Advanced communication function: Supports multiple communication protocols such as Profibus DP, Safe Ethernet, OPC DA, etc., allowing for fast and stable communication and data exchange with other devices and systems, facilitating system integration and expansion.
High safety: The design complies with international safety standards and certifications, with comprehensive safety protection mechanisms such as overload protection, short circuit protection, etc., which can effectively protect equipment and personnel safety and avoid safety accidents caused by faults or abnormal situations.
Good flexibility: With customizable functions and parameters, it can be flexibly configured and programmed according to different industrial application needs, adapt to various complex industrial control scenarios, and provide personalized solutions for users.
