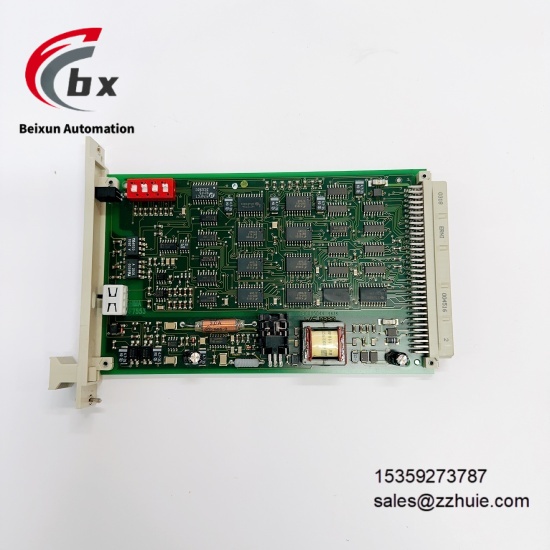

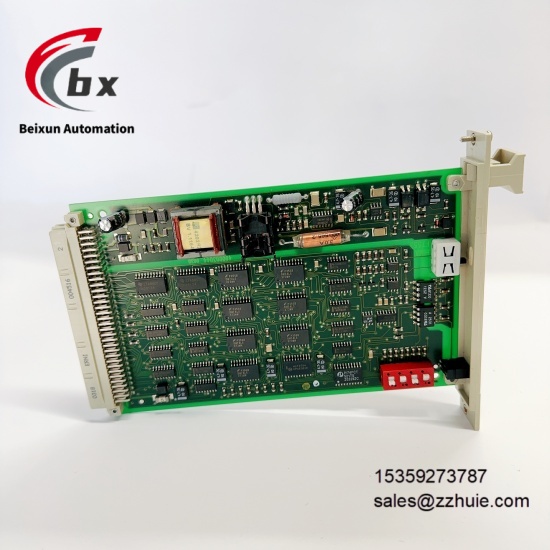

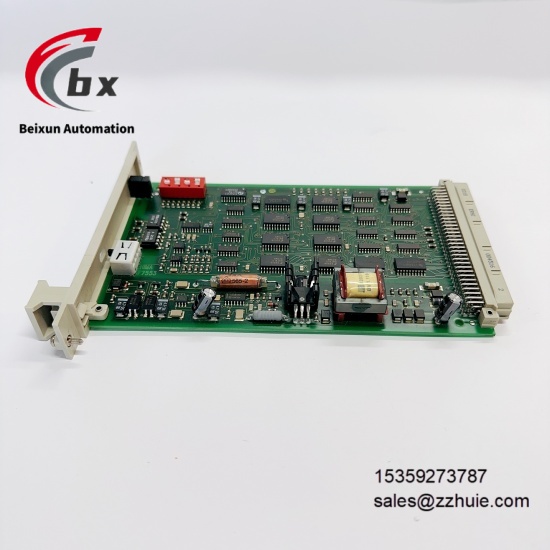

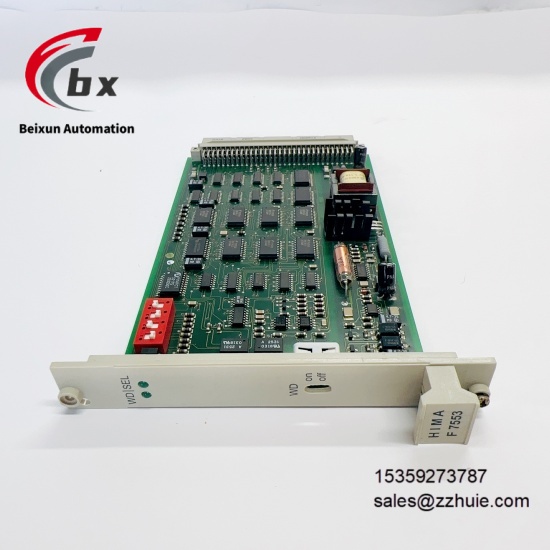

HIMA F7553 984755302 High performance coupling module

HIMA F7553 984755302 High performance coupling module

SPECIFIC PARAMETERS​

Brand HIMA​

Product Series Safety Instrumented System SIS Coupling Module Series​

Product Type System Coupling Module​

Order Number 984755302​

Working Voltage 24VDC 5VDC​

Working Current 24VDC 750mA 5VDC 600mA​

Communication Interface PROFIBUS DP Modbus RTU Modbus TCP/IP CANopen​

Working Temperature -20℃ to +60℃​

Storage Temperature -40℃ to 85℃​

Protection Level IP20 Module Body IP54 Metal Protective Case Version​

Safety Level SIL 3 (IEC 61508) Category 4 (EN 954-1)​

Size 30mm×130mm×200mm​

Weight 0.14kg​

Installation Method DIN Rail Mounting​

MTBF 100 Years​

Compatible System All Series of HIMA Safety Control Systems and PLC Systems​

Certification Qualification CE TÜV​

Power Consumption Low Power Consumption Design​

Data Transmission Characteristic High-speed Safety Data Transmission​

Structural Specification 4TE Slot Adaptation​

PRODUCT PERFORMANCE​

Adopt dedicated safety communication protocol, which can realize low-latency data interaction between I/O subrack and central module, ensuring real-time response of safety interlock commands​

Complies with the highest safety level standards of SIL 3 and Category 4, and can be directly applied to high-risk safety control scenarios such as emergency shutdown and fire and gas monitoring​

Equipped with a metal protective case version, the IP54 protection level can adapt to industrial field environments with high dust and humidity​

Has complete communication diagnosis function, which can real-time feedback link connection status and achieve accurate fault location and alarm of communication​

Supports multi-protocol communication expansion, which can realize seamless data docking with third-party control systems and improve system integration flexibility​

Uses industrial-grade wide-temperature components, which can operate continuously and stably in the temperature range of -20℃ to +60℃​

Compact 4TE slot design, which can realize high-density system component deployment in narrow control cabinet space​

Has an ultra-high MTBF of 100 years, which greatly reduces system maintenance frequency and spare parts replacement costs​

Modular plug-in design, which can complete module maintenance without interrupting system operation and reduce equipment downtime​

Built-in safety data verification mechanism, which can ensure the integrity and accuracy of transmitted data and prevent data tampering or loss​
