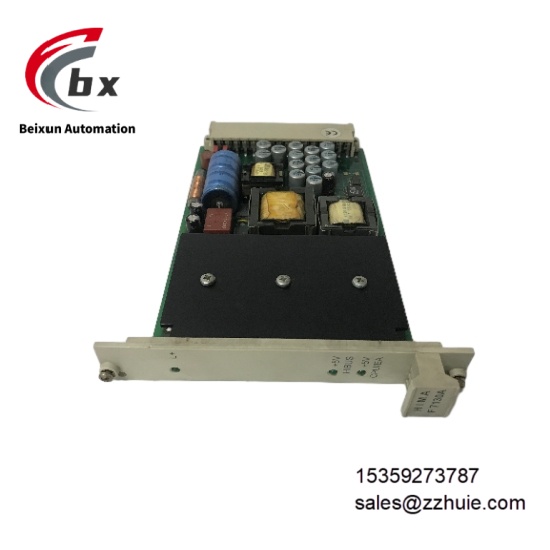

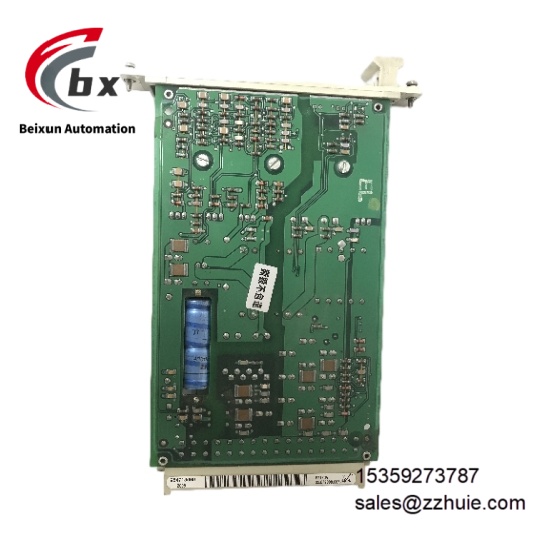

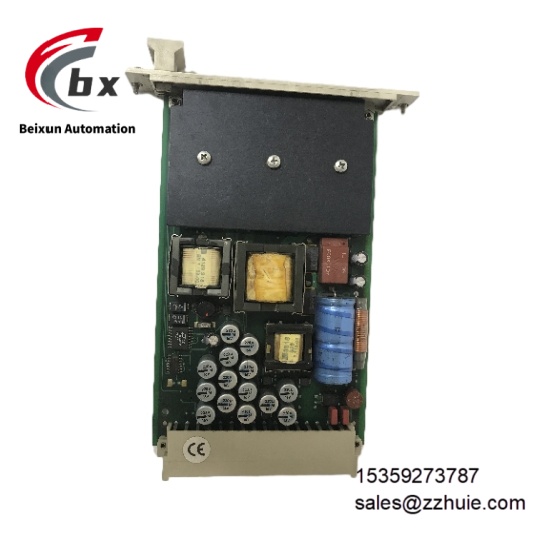

HIMA F7130A 984713060 Conversion power module
Specific Parameters
Electrical Parameters
Input Voltage: 24V DC, supporting -15% to +20% voltage fluctuation, ripple < 15%Output Voltage: 5V DC, dual-channel output; one channel 10A (for central equipment/I/O modules), one channel 1A (for HIBUS); voltage accuracy ±0.25VPower Rating: Maximum output power 150WConversion Efficiency: ≥70%Isolation Characteristic: Electrical isolation between input and output circuits, with strong anti-interference capabilityProtection Functions: Integrated overvoltage protection, overcurrent protection, short-circuit protection and thermal shutdown protectionSafety Certifications: SIL 3 (IEC 61508), PL e (EN ISO 13849-1), CE, UL 508 certificationDiagnostic Functions: Equipped with LED status indicators, real-time displaying input voltage presence, normal output voltage and fault statusFusing Protection: Built-in 5AGL primary fuse
Environmental Parameters
Operating Temperature: -20℃ to +70℃ (non-condensing environment)Storage Temperature: -40℃ to +85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself, must be installed in a closed control cabinet)Vibration Resistance: Complies with IEC 60068-2-6 standard, 10-55Hz frequency range, 0.75mm amplitudeEMC Compliance: Meets EN 61000-6-2 (industrial environment immunity) and EN 61000-6-4 (emission limits) standards
Mechanical Parameters
Overall Dimensions: 100mm (L) × 80mm (W) × 40mm (H)Housing Material: Flame-retardant engineering plastic housing with RFI shielding functionWeight: Approximately 1000gMounting Method: 35mm standard DIN rail mounting, compatible with H41Q/H51Q system racksWiring Method: Plug-in terminal connection, supporting hot swappingStatus Indication: Front-mounted LED indicators, respectively showing input voltage presence, output voltage status and fault status
Product Performance
Strong safety redundancy: Supports redundant architecture design, and with SIL 3/PL e safety certification, it can be integrated into the power supply circuit of safety-critical systems, ensuring continuous system power supply when a single module fails.Stable voltage output: The 5V DC output accuracy is controlled within ±0.25V, with excellent ripple suppression capability, meeting the power supply needs of precision components such as controllers and I/O modules, without equipment misoperation caused by voltage fluctuation.Comprehensive protection mechanism: Multiple protection designs including overvoltage, overcurrent, short-circuit and thermal shutdown can quickly respond to power supply abnormalities, avoiding damage to the module and downstream equipment, with a fault diagnosis coverage rate of ≥95%.Convenient installation and maintenance: Supports hot swapping, enabling module replacement without shutting down the system; LED indicators intuitively feed back operating status, reducing fault location time to minutes.Wide environmental adaptability: The -20℃ to +70℃ wide temperature design covers high-temperature industrial plant areas and low-temperature outdoor cabinets; IP20 protection and vibration resistance adapt to complex industrial environments.
