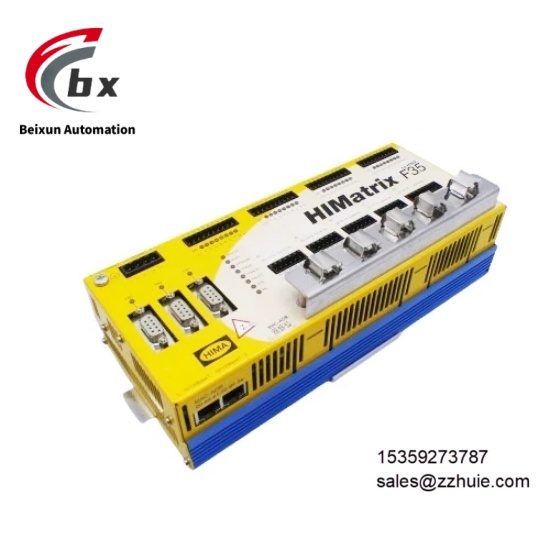

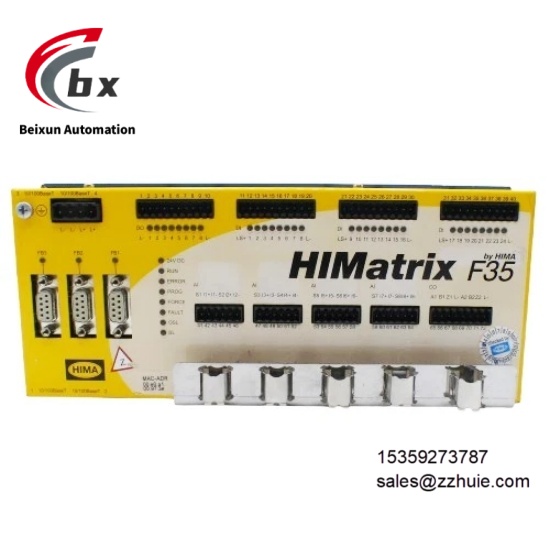

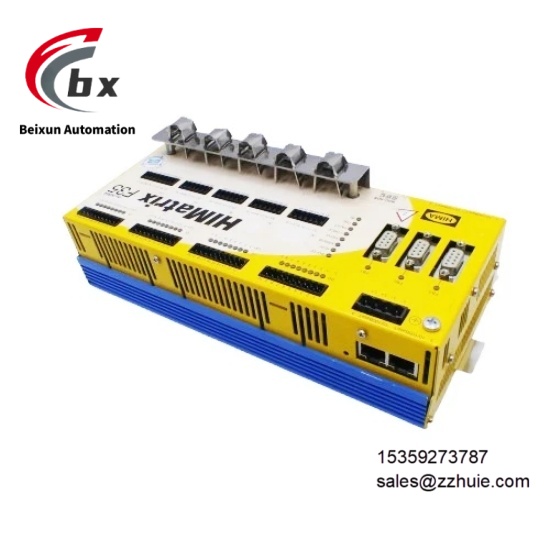

HIMA F35 010 30 Safety controller module

HIMA F35 010 30 Safety controller module

Specific Parameters

Brand HIMA, Product Series HIMA HIMatrix F3 Series

Product Type Safety-Related Controller, Industrial Safety Control Module, HIMA Original Spare Part

Model HIMA F35 010 30

Country of Origin Germany (Produced by HIMA original factory)

Compatible Devices HIMA HIMatrix Series Safety Control Systems, Industrial Automation Equipment, Sensors, Actuators, DCS Systems

Core Functions Safety Logic Control, Signal Acquisition and Processing, Fault Diagnosis, Safety Interlock Triggering, Real-Time Monitoring

Safety Level Complies with IEC 61508, IEC 61511, IEC 62061 Standards, Supports up to SIL 3 Level, Complies with EN 954-1 Category 4, EN ISO 13849-1 PL e Standards

Power Supply Voltage 24V DC (±15%/+20%), Complies with SELV/PELV Safety Standards

No-Load Current 0.5A

Maximum Load Current ≤9A

External Fuse 10A Time-Lag Fuse

Power Consumption 15-29W (Varies with Output Load)

Digital Inputs 24 Safety-Related Digital Inputs, Non-Isolated, Current Sink Logic, 24V Type 1

Digital Outputs 8 Safety-Related Digital Outputs, Non-Isolated, Common Ground Design

Analog Inputs 8 Unipolar Analog Inputs, Supporting 0-10V Voltage or 0-20mA Current (Needs External Shunt Adapter)

Counters 2 Independent Safety-Related Counters, Supporting 5V or 24V Input Configuration

Analog Input Transmitter Supply 8×24-28V, ≤46mA, with Short-Circuit Protection

Communication Interfaces 4 RJ-45 Ethernet Ports, 3 9-Pin Terminal Fieldbus Interfaces

Communication Protocols Supports SafeEthernet, Modbus TCP, OPC, SNTP, TCP-SR, PROFIBUS DP Protocols

Operating Temperature Range 0℃ to 60℃ (Standard Variant)

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Standard), IP54+ Protection Enclosure Required for Zone 2 Hazardous Environments

Physical Dimensions 257mm×114mm×97mm (Width×Height×Depth)

Physical Weight Approximately 1.2kg

Mounting Method Standard Industrial Mounting, Suitable for Conventional Industrial Control Cabinets

Diagnostic Function Supports Internal Fault Self-Diagnosis, Equipped with LED Indicator Lights, Providing Fault Code Feedback

Protection Functions Overvoltage, Overcurrent, Overload Protection, Outputs De-Energized Safe State in Case of Fault

Product Material Industrial-Grade Reinforced Metal Enclosure, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with TÜV, ATEX, IEC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

HIMA F35 010 30 is an original HIMA device with strong adaptability, which can be seamlessly integrated into HIMA HIMatrix Series safety control systems and various industrial automation systems, with convenient installation and maintenance. The compact design saves control cabinet space, and is equipped with a reset button and LED indicator lights for easy troubleshooting and system restart. The product has outstanding safety and reliability, has passed multiple authoritative safety certifications, supports up to SIL 3 level, adopts the “de-energized trip” safety principle, and can quickly switch to a safe state in case of failure, effectively avoiding safety accidents. The product has high signal processing accuracy, the analog input measurement accuracy reaches ±0.1% full scale, the response speed is fast, the minimum pulse width of the counter is only 5μs, and it can accurately capture subtle changes in signals. The product has strong anti-electromagnetic interference and anti-vibration capabilities, meeting industrial standards. The metal enclosure package improves structural robustness, enabling continuous and stable operation in harsh industrial environments. It has complete built-in fault diagnosis and protection functions, greatly improving the operational safety and maintenance efficiency of industrial systems.
