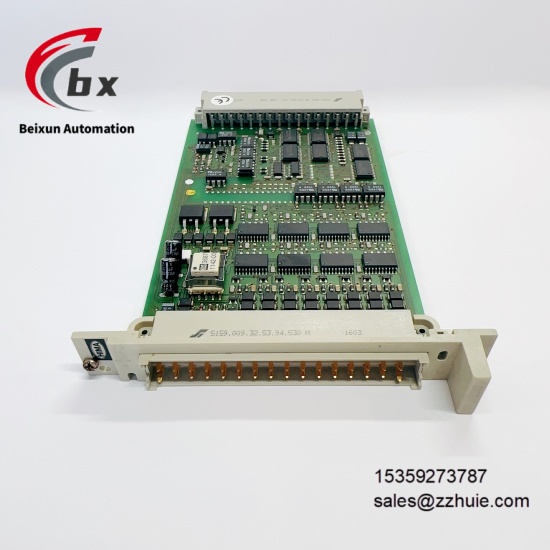

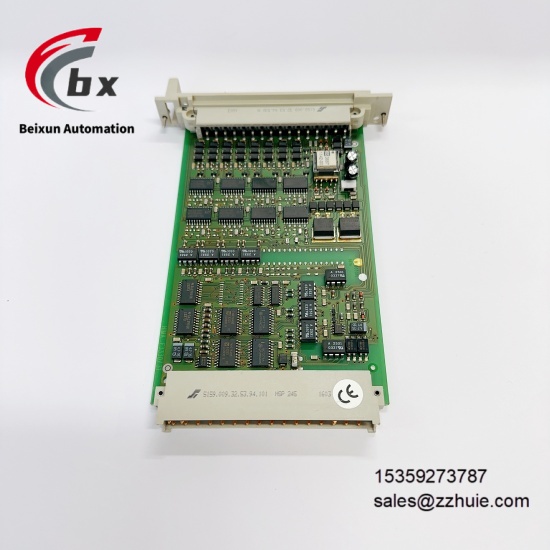

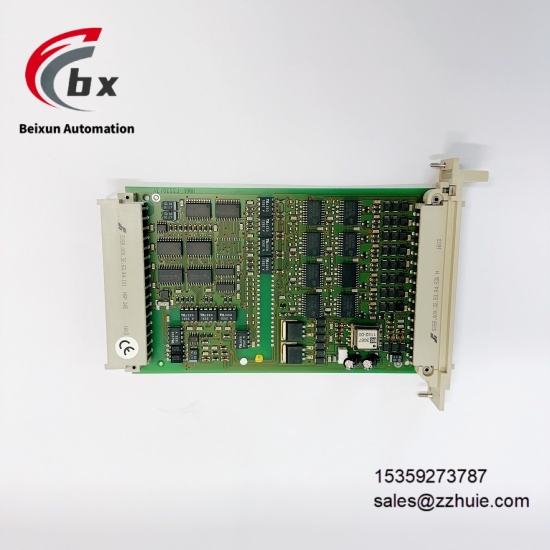

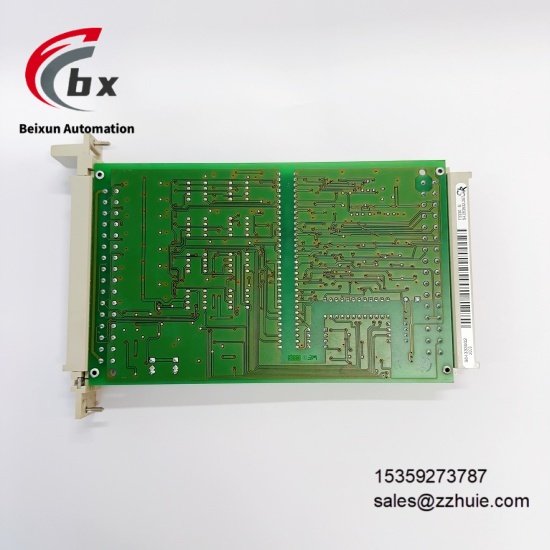

HIMA F3330 984333002 Secure digital output module

HIMA F3330 984333002 Secure digital output module

SPECIFIC PARAMETERS​

Brand HIMA​

Product Series HIMatrix Series​

Product Type 8-channel Safety-related Digital Output Module​

Order Number 984333002​

Number of Output Channels 8​

Working Voltage 24VDC​

Output Voltage 24VDC​

Maximum Output Current per Channel 500mA​

Maximum Load Power per Channel 12W (Resistive/Inductive Load) 4W (Lamp Load)​

Internal Voltage Drop 2V@500mA Load​

Allowable Line Resistance 11 Ohms (Input + Output)​

Undervoltage Trip Threshold ≤16V​

Working Temperature -40℃ to 70℃​

Storage Temperature -40℃ to 85℃​

Protection Level IP20 (Module Body) IP67 (Specific Protection Version)​

Safety Level SIL 3 (IEC 61508)​

Communication Interface PROFIBUS DP Ethernet RS485​

Structural Size 4TE (22.9mm×72.5mm)​

Weight 0.2kg​

Power Consumption ≤5W​

Fault Detection Support Short-circuit Detection Support Undervoltage Detection​

Redundancy Capability Support System-level Redundancy Configuration​

Certification Qualification IEC 61508 SIL 3 Certification​

PRODUCT PERFORMANCE​

Integrate 8-channel digital output interfaces to realize synchronous control of multiple actuators and improve the coordination of safety interlock actions​

Has short-circuit protection function, which can effectively protect the module and system from damage caused by load abnormalities and ensure the stability of the safety link​

Built-in fault self-test and diagnosis function, which can real-time feedback the operation status of modules and channels to achieve accurate fault location and alarm​

Complies with the highest safety level standard of SIL 3, and can be directly applied to high-risk safety control scenarios such as emergency shutdown and fire and gas protection​

Supports multi-protocol industrial bus communication, and can realize seamless data interaction with third-party control systems and HIMA safety main control units​

Uses industrial-grade wide-temperature components, which can operate continuously and stably in extreme temperature environments of -40℃ to 70℃​

Compact 4TE size design, which can realize high-density safety output point deployment in narrow control cabinet space​

Has undervoltage trip protection, which can trigger a safe state when the power supply is abnormal to prevent equipment from being out of control​

Supports hot-swapping and modular maintenance, which can complete module replacement without interrupting system operation and reduce downtime​

Built-in safety isolation circuit, which can block the conduction of faults from the hazardous side to the safe side and improve the overall safety of the system​
