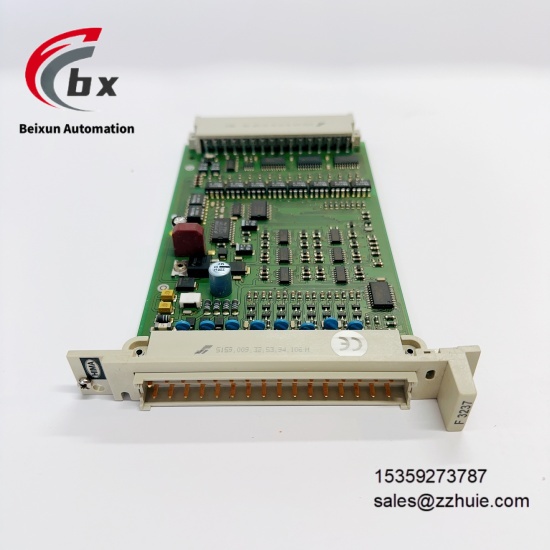

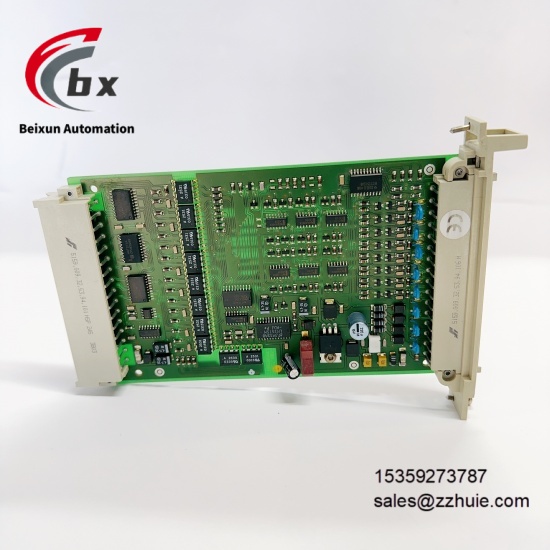

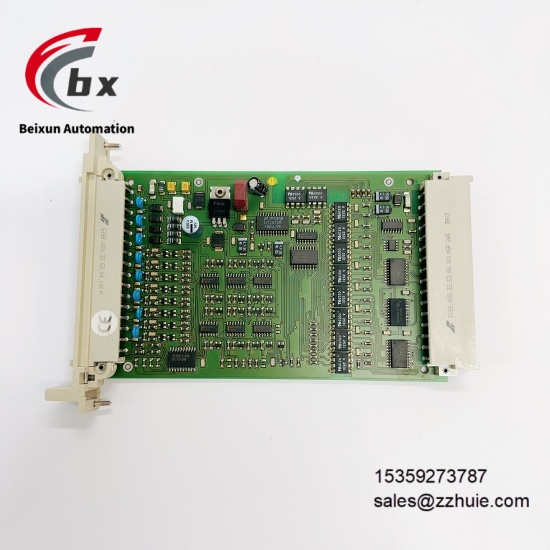

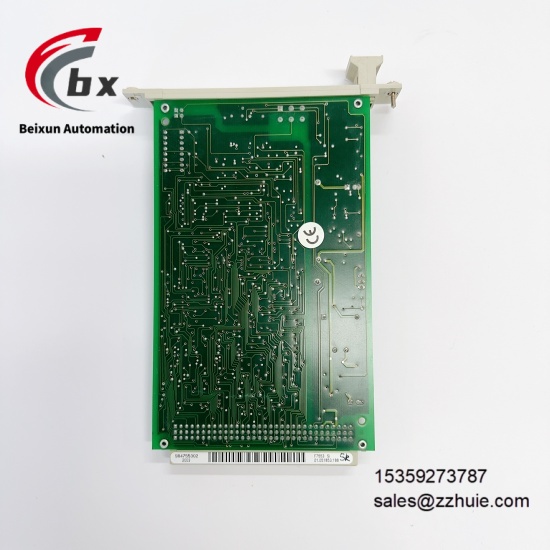

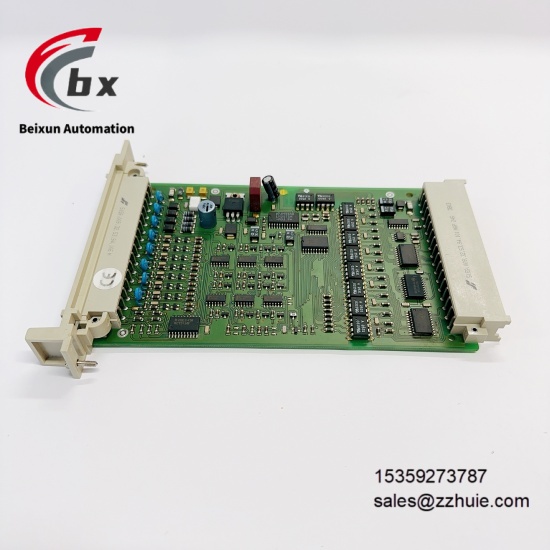

HIMA F3237 984323702 Digital input module

HIMA F3237 984323702 Digital input module

SPECIFIC PARAMETERS​

Brand HIMA​

Product Series HIMATRIX Series​

Product Type 8-channel Safety-related Digital Input Module​

Order Number 984323702​

Number of Input Channels 8​

Input Voltage 24VDC 12VDC Optional​

Input Type Open/Short Circuit Detection Type with Anti-interference Filtering​

Response Time ≤1ms​

Working Voltage 24VDC Built-in Power Management​

Working Temperature -25℃ to +85℃​

Storage Temperature -40℃ to +85℃​

Size 130mm×100mm×120mm​

Weight 1kg​

Installation Method DIN Rail Mounting​

Protection Level IP20​

Safety Level SIL 3 (IEC 61508)​

Communication Interface Ethernet PROFIBUS Modbus HIMA Dedicated Safety Bus​

Structural Form Modular​

Fault Detection Support Short-circuit Detection Support Open-circuit Detection​

Power Consumption Low Power Consumption Design Adapt to System-level Redundant Power Supply​

PRODUCT PERFORMANCE​

Integrate 8-channel digital input interfaces to realize synchronous acquisition of multi-point discrete safety signals and improve system signal access density​

Has a signal response time of ≤1ms, which can quickly capture abnormal states of on-site equipment and ensure timely triggering of safety interlock commands​

Built-in anti-interference filter circuit, which can effectively shield electromagnetic interference in industrial sites and ensure the accuracy of safety signal acquisition​

Supports open-circuit and short-circuit fault detection, can real-time monitor sensor link faults, and achieve accurate fault location and alarm​

Complies with the highest safety level standard of SIL 3, and can be directly applied to high-risk control scenarios such as emergency shutdown and equipment safety protection​

Adapt to multiple types of industrial communication buses, and can realize seamless data interaction with third-party control systems and HIMA safety main control units​

Supports system-level redundant architecture design, can build dual-loop safety acquisition links, and improve the reliability of safety instrumented systems​

Has a complete self-test function, which can complete module status diagnosis throughout the system operation and reduce the risk of hidden faults​

Uses industrial-grade wide-temperature components, which can operate continuously and stably in extreme temperature environments of -25℃ to +85℃​

Modular DIN rail design, which can complete module maintenance without interrupting system operation and reduce equipment downtime​
