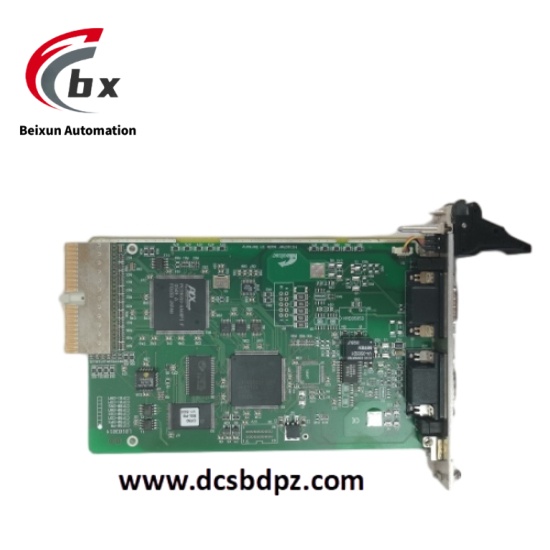

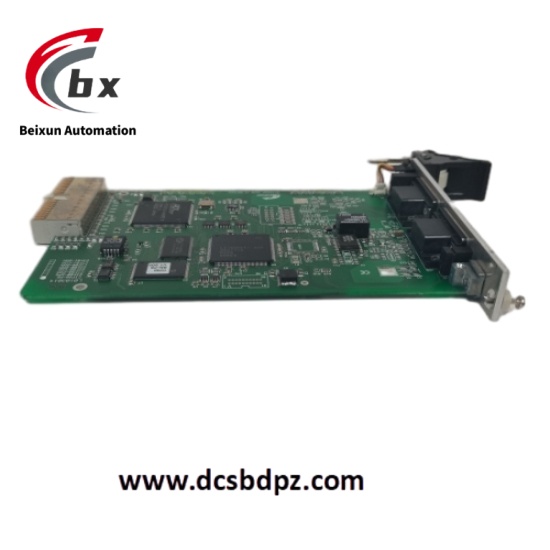

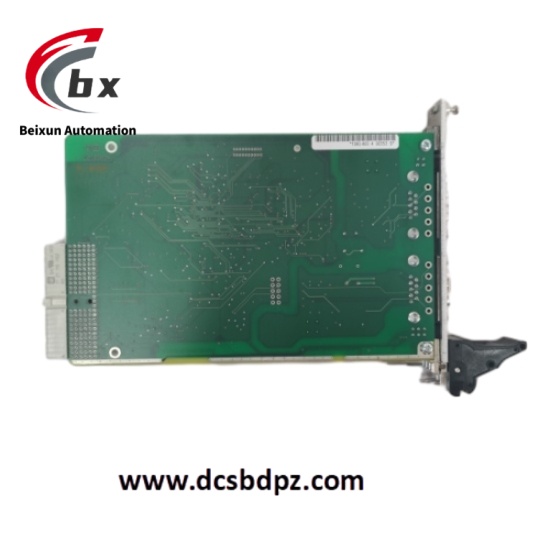

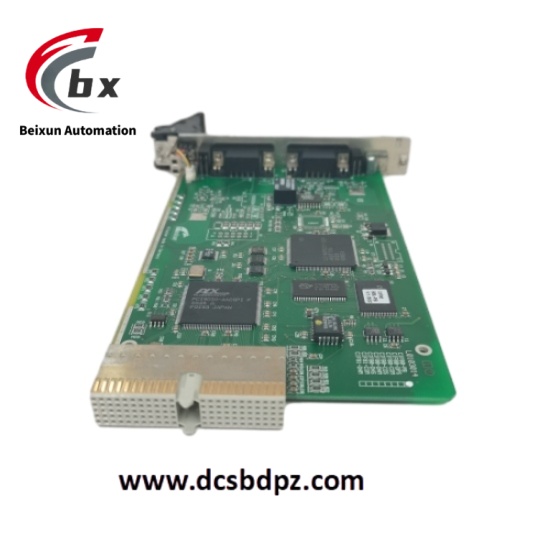

Hilscher CIF80-PB communication interface module

Hilscher CIF80-PB communication interface module

Specific Parameters

• Power Supply Parameters
  Supply Voltage: 5V DC (±5%)/3.3V DC (±5%)
  Rated Power Consumption: ≤3.5W (5V mode), ≤2.8W (3.3V mode)
  Power Isolation: 1500Vrms (for 1 minute continuously, power and signal terminals)
• Communication Parameters
  Supported Protocols: PROFIBUS-DP V0/V1 (master/slave mode)
  Transmission Rate: 9.6kbps to 12Mbps (auto-adaptive)
  Maximum Connections: 32 slave devices (master mode)
  Data Transmission Delay: ≤10ms (bidirectional communication)
  Communication Interface: D-Sub 9-pin connector (RS485, opto-isolated)
• Signal Parameters
  Data Bus Width: 8-bit parallel data bus
  Dual-Port Memory: 8KB (process data buffer)
  Diagnostic Interface: RS232C (non-isolated, for configuration and debugging)
• Environmental Parameters
  Operating Temperature Range: 0°C to +55°C
  Storage Temperature Range: -20°C to +70°C
  Relative Humidity: 5% to 95% (non-condensing)
  Protection Class: IP20 (module body)
• Physical Parameters
  Mounting Type: 3U CompactPCI standard slot
  Dimensions: 160mm×100mm×20mm
  Weight: Approximately 130g
  Connector Type: Gold-plated D-Sub 9-pin plug

Product Performance

• High Real-Time Communication: Supports real-time data transmission of the PROFIBUS-DP protocol, with microsecond-level response at 12Mbps, meeting the needs of high-speed device control (such as servo motor synchronization, robot motion control).
• Multi-Protocol Compatibility: Can be expanded to support other industrial protocols (such as DeviceNet, CANopen) through firmware upgrades, adapting to different system architectures without hardware replacement.
• Strong Anti-Interference Ability: Opto-isolation design (1500Vrms) and electromagnetic shielding housing resist surges, electromagnetic radiation, and grounding interference in industrial environments, with a data transmission bit error rate ≤10⁻⁹.

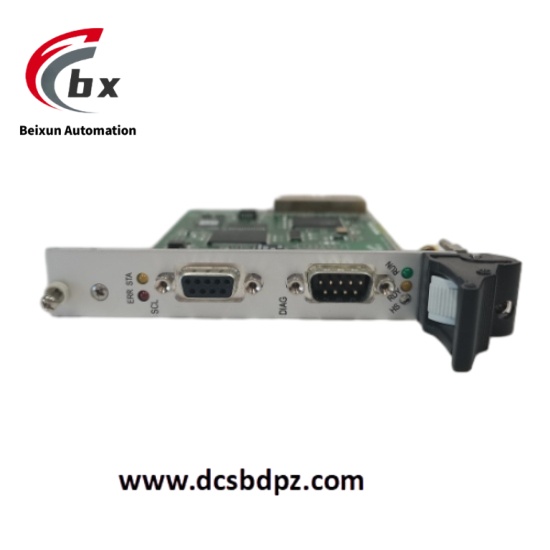

• Intelligent Diagnosis Function: Built-in LED indicators display real-time communication status (e.g., RUN, ERR, STA), supports RS232 interface output of detailed fault codes (e.g., communication interruption, slave timeout), with fault location accuracy reaching channel level.
• Flexible Configuration Capability: Communication parameters (e.g., baud rate, slave address) can be customized via SyCon configuration software, supporting hot-swappable functionality for convenient system maintenance and expansion.
