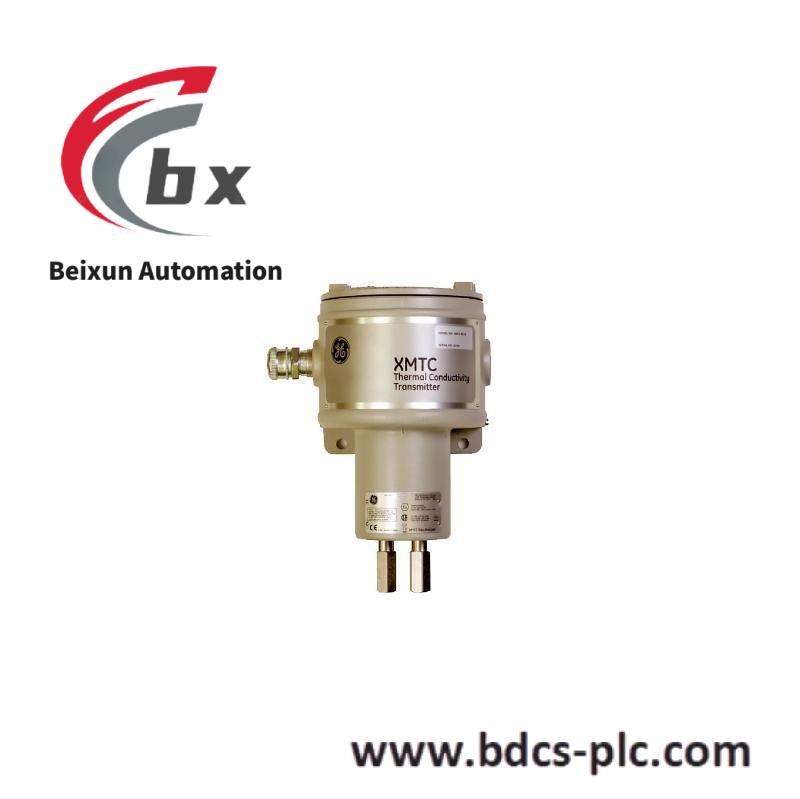

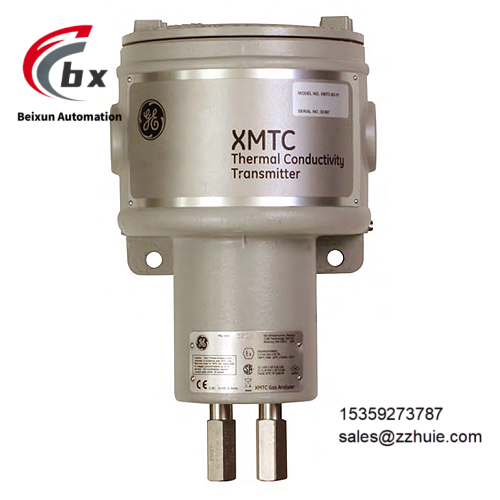

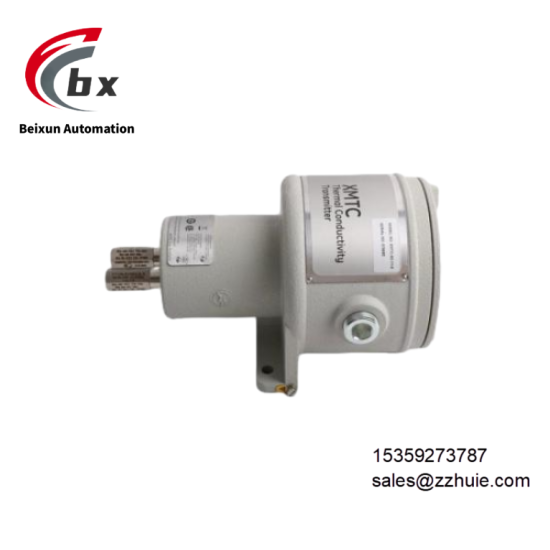

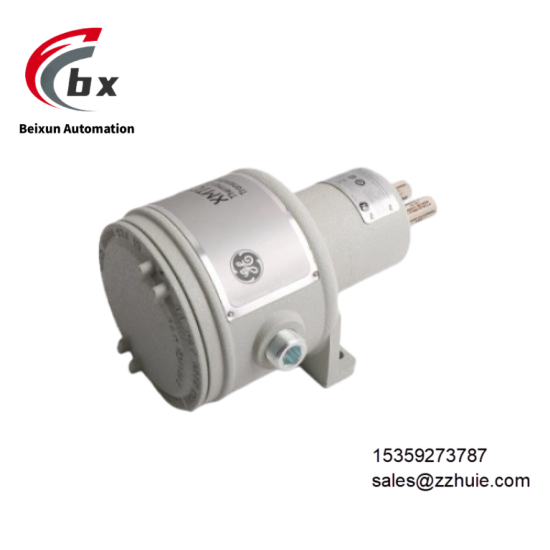

GE XMTC-62-11 Thermal conductivity gas transmitter

GE XMTC-62-11 Thermal conductivity gas transmitter

Specific Parameters

Brand GE (General Electric, USA)

Product SeriesGE Panametrics Series

Product Type Thermal Conductivity Gas Transmitter, Gas Analyzer, Industrial Measurement Equipment, Original Spare Part

Model GE XMTC-62-11

Country of Origin USA (Produced by GE Panametrics original factory)

Compatible Devices GE MIS-1, MMS-3 Series Analyzers, Industrial Gas Monitoring Systems

Measurement Type Thermal Conductivity of Binary/Pseudo-Binary Gas Mixtures, Gas Component Concentration

Measured Gases Hydrogen, Helium, Carbon Dioxide in Nitrogen/Air; Hydrogen in Hydrocarbons, etc.

Measurement Range 0%~50% (Corresponding Range Can Be Selected According to Requirements)

Measurement Accuracy ±2% of Full Scale

Linearity ±1% of Full Scale

Repeatability ±0.5% of Full Scale

Zero Stability ±0.5% of Full Scale per Week

Span Stability ±0.5% of Full Scale per Week

Response Time 20 Seconds (90% Step Change)

Output Signal 4~20mA Isolated Signal, Maximum Load 800Ω, Field Programmable

Communication Protocols Supports Modbus RTU, HART Protocols

Supply Voltage 24VDC±2VDC, Maximum Current 1.2A

Rated Power Consumption 16W

Operating Temperature Range 0℃ to 45℃ (Standard); -20℃ to 70℃ (Optional)

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP66 (All-Weather Protection), IP67 (Optional)

Operating Pressure Up to 100bar

Sample Flow Rate 0.1~4.0 SCFH (10~2000 cc/min), Nominal Value 0.5 SCFH (250 cc/min)

Reference Gas Flow Rate 0.01~4.0 SCFH (5~2000 cc/min), Nominal Value 0.5 SCFH (250 cc/min)

Physical Dimensions All-Weather Protection Type: 242mm×145mm (Height×Diameter); Explosion-Proof Type: 266mm×145mm (Height×Diameter)

Physical Weight Approximately 4.3kg (9.5lb)

Mounting Method Wall-Mounted Installation

Connection Method 3/4″NPTF (Electrical Conduit); 1/4″NPTF (Sample/Reference Gas Inlet/Outlet)

Sensor Material Standard: 316 Stainless Steel, Glass and Viton® O-Rings; Optional: Hastelloy® C276 and Chemraz® O-Rings

Protection Type Anti-Electromagnetic Interference, Anti-Pollution, Anti-Vibration, Explosion-Proof (Class I, Division 1, Groups A, B, C, D)

Core Functions Gas Thermal Conductivity Measurement, Gas Concentration Detection, Signal Conversion and Transmission, Field Calibration, Fault Self-Diagnosis

Customizable No

Certification Standards Complies with EMC Directive 2004/108/EC, PED 97/23/EC, ATEX, FM, CSA Certifications

Warranty Period 12 Months

Product Performance

GE XMTC-62-11 is an originalGE Panametrics device with strong adaptability. It can be seamlessly integrated into various GE analyzers and industrial gas monitoring systems, with convenient wall-mounted installation. The modular structure allows quick on-site calibration and replacement of measuring units without affecting the normal operation of the system.

It has high measurement accuracy, excellent linearity and repeatability, strong zero and span stability, can accurately measure the thermal conductivity and component concentration of binary/pseudo-binary gas mixtures, output standardized 4-20mA isolated signals, and ensure stable and reliable data transmission, which can be directly connected to PLC systems.

The design without moving parts has excellent anti-pollution, anti-vibration and anti-electromagnetic interference capabilities, is compatible with all-weather and explosion-proof scenarios, has strong wide temperature and wide pressure adaptability, can operate stably in harsh industrial working conditions such as high temperature, high humidity and strong interference for a long time, and has low operation and maintenance costs.

It has low power consumption, solid structure, wide adaptation range of sampling flow rate, supports on-site programming and various communication protocols, can flexibly adapt to different industrial measurement scenarios, has good compatibility and expansibility, and meets various industrial gas monitoring needs.
