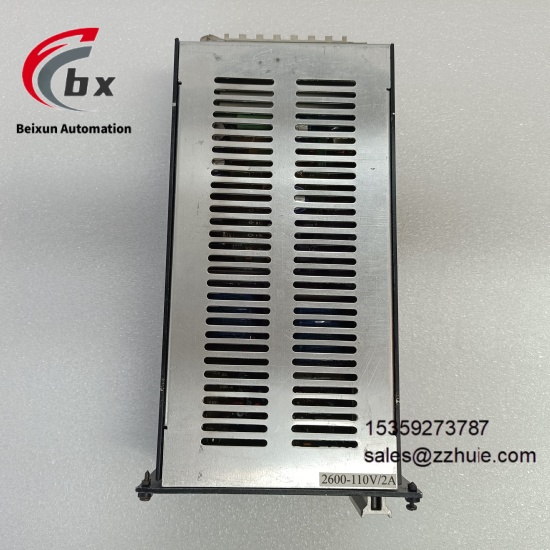

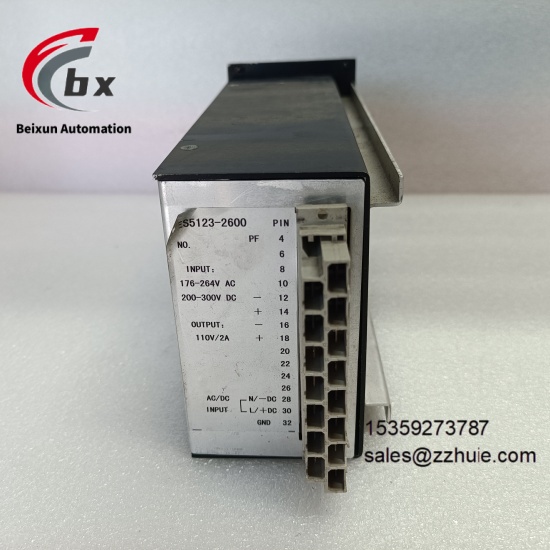

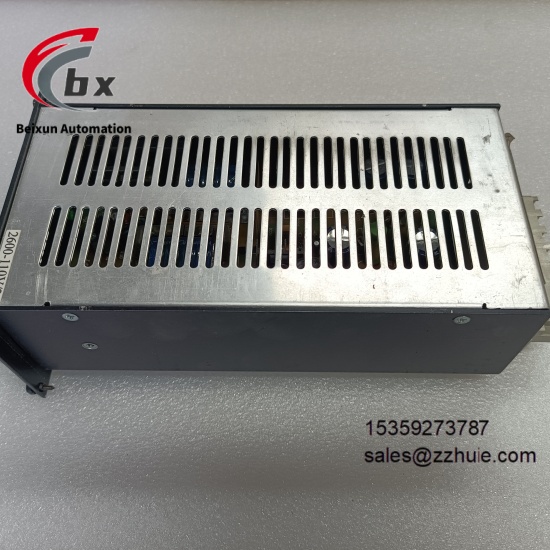

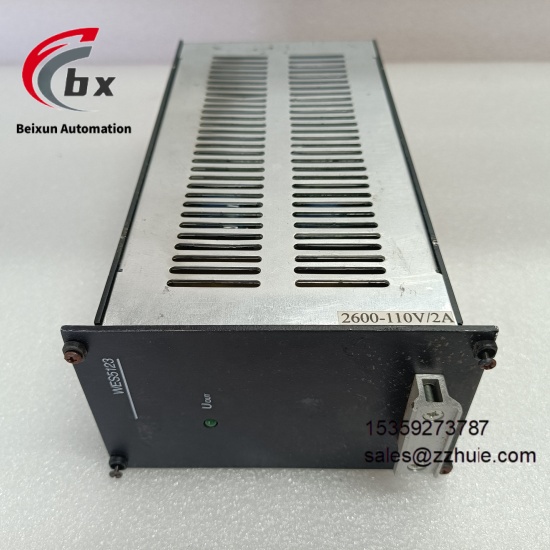

GE WES5123-2600 Remote terminal unit module

GE WES5123-2600 Remote terminal unit module

SPECIFIC PARAMETERS​

Brand GE​

Product Series D200 Series Remote Terminal Unit (RTU) Series​

Product Type High-performance Industrial-grade Remote Terminal Unit​

Model WES5123-2600​

Working Voltage 24VDC/48VDC Wide Range Adaptation 18-72VDC / 110-240VAC (Optional)​

Working Temperature -40℃ to 75℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP40 (In-cabinet Installation) / IP65 (Outdoor Installation, Optional)​

Installation Method DIN Rail Installation/Wall-mounted Installation​

Processor Dual-core ARM Processor​

Storage Capacity 4GB eMMC Flash 4GB DDR4 RAM​

I/O Configuration Digital Input: 16 Channels Digital Output: 16 Channels Analog Input: 8 Channels (4-20mA/0-10V) Analog Output: 4 Channels (4-20mA)​

Communication Interfaces 2 Gigabit Ethernet Ports 4 Configurable RS232/RS485 Serial Ports 1 CANopen Interface Optional 4G/LTE Wireless Module​

Compatible Protocols IEC 61850 IEC 60870-5-101/104 DNP3.0 Modbus RTU/TCP MQTT​

Power Supply Mode Support Redundant Power Supply​

Current Consumption Typical 250mA (24VDC) Maximum 400mA (24VDC)​

Size 180mm×120mm×60mm (Rail-mounted) / 220mm×160mm×80mm (Wall-mounted)​

Weight 1.2kg (Rail-mounted) / 1.8kg (Wall-mounted)​

Power Consumption Typical 6W Maximum 10W​

Certification Qualification CE UL CSA IEC 61010-1 IEC 61850-3 ATEX (Optional Explosion-proof Certification)​

Compatible System GE D200 Series Substation Automation System SCADA Systems Industrial Automation Control Platforms​

Diagnostic Function Support Hardware Self-test Channel Fault Detection Communication Abnormality Alarm Power Supply Status Monitoring Data Integrity Verification​

Anti-interference Level Complies with EN 55032/EN 61000 Industrial EMC Standards​

MTBF (Mean Time Between Failures) ≥300,000 Hours​

PRODUCT PERFORMANCE​

Equipped with dual-core ARM processor and 4GB DDR4 RAM, quickly processing complex control logic and large-scale collected data, ensuring real-time response of control commands​

16 digital I/O and 8 analog input configuration, supporting acquisition of multiple signal types such as 4-20mA and 0-10V, which can be directly connected to industrial sensors and actuators​

Compatible with mainstream industrial protocols such as IEC 61850, DNP3.0 and Modbus, as well as MQTT IoT protocol, realizing seamless interconnection with SCADA systems and industrial internet platforms​

Redundant power supply design, wide-range adaptation to 18-72VDC voltage range, withstanding power grid fluctuations and transient sags, ensuring continuous and stable operation of the device​

Industrial-grade wide-temperature tolerance capability, can operate reliably in the temperature range of -40℃ to 75℃ and non-condensing humidity environment of 5%-95%, adapting to extreme scenarios such as alpine and high temperature​

Optional IP65 protection level (wall-mounted), with dustproof, waterproof and corrosion-resistant capabilities, can be directly installed in outdoor unattended stations without additional protective boxes​

Supports gigabit Ethernet and 4G/LTE wireless dual-mode communication, ensuring uninterrupted remote data transmission, meeting the communication reliability requirements of critical business​

Built-in comprehensive self-diagnostic function, real-time feedback of hardware status, channel faults and communication abnormalities, facilitating rapid problem location and reducing operation and maintenance costs​

Modular design supports I/O expansion and function upgrade, and I/O modules or wireless communication modules can be flexibly added according to application requirements, adapting to monitoring projects of different scales​

Supports remote configuration, program upgrade and fault diagnosis, and equipment maintenance can be completed through the network without on-site attendance, greatly improving operation and maintenance efficiency​

Data transmission adopts encryption technology, complying with industrial information security level protection requirements, preventing data leakage and tampering, and ensuring system communication security​
