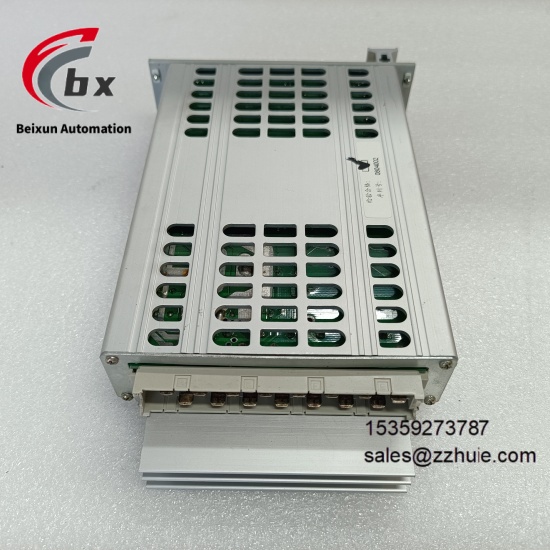

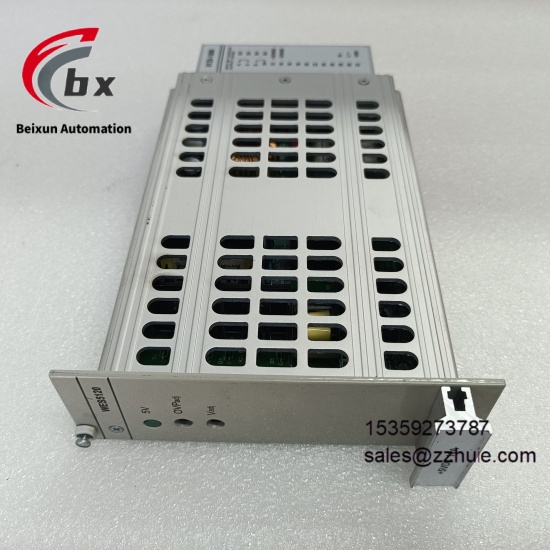

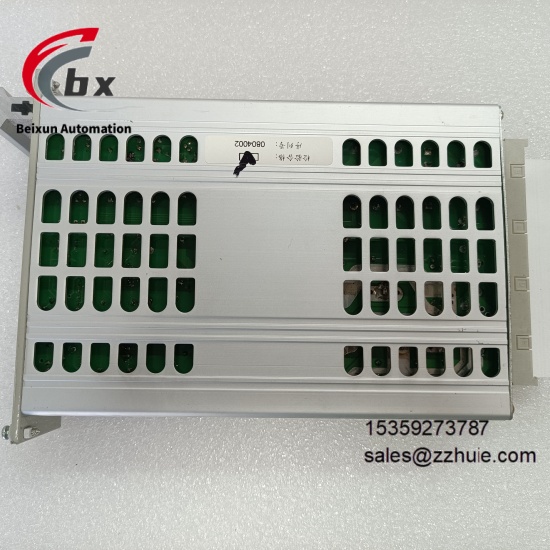

GE WES5120 5120-1506 Ethernet switch

GE WES5120 5120-1506 Ethernet switch

SPECIFIC PARAMETERS​

Brand GE​

Product Series Industrial Communication Full Gigabit Ethernet Switch Series​

Product Type Full Gigabit Enhanced Industrial Ethernet Switch​

Model WES5120 5120-1506​

Working Voltage 24VDC Wide Range Adaptation 18-36VDC / 110-240VAC (Optional)​

Working Temperature -40℃ to 75℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP40 (Rail-mounted) / IP20 (Rack-mounted, Optional)​

Installation Method DIN Rail Installation/19-inch Rack-mounted Installation​

Port Configuration 12 10/100/1000BASE-TX Gigabit Electrical Ports 2 1000BASE-SX/LX Gigabit Optical Ports (SFP Slots, Supporting Single-mode/Multi-mode Switching)​

Transmission Rate 10Mbps/100Mbps/1000Mbps Auto-negotiation​

Network Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.1Q (VLAN)​

Redundancy Protocols Support ERPS v2 Ring Redundancy (Self-healing Time ≤10ms) STP/RSTP/MSTP Link Aggregation (LACP)​

Switching Capacity 24Gbps​

Packet Forwarding Rate 17.86Mpps​

Buffer Capacity 8MB​

Current Consumption Typical 220mA (24VDC) Maximum 350mA (24VDC)​

Size 150mm×100mm×50mm (Rail-mounted) / 44mm×438mm×220mm (Rack-mounted)​

Weight 0.9kg (Rail-mounted) / 2.8kg (Rack-mounted)​

Power Consumption Typical 6.6W Maximum 10.5W​

Certification Qualification CE UL CSA IEC 61010-1 IEC 61850-3 EN 55032 Class A ATEX (Optional Explosion-proof Certification)​

Compatible System GE D20 Series Control Systems SCADA Systems Industrial Ethernet-compatible Devices Distributed Control Networks​

Diagnostic Function Support Port Status Indication Link Fault Alarm Power Supply Fault Detection Ring Network Status Monitoring Port Traffic Statistics​

Anti-interference Level Complies with EN 55032/EN 55035/EN 61000 Industrial EMC Standards​

MTBF (Mean Time Between Failures) ≥350,000 Hours​

PRODUCT PERFORMANCE​

Full Gigabit port configuration, combination of 12 electrical ports and 2 optical ports, supporting single-mode/multi-mode SFP module adaptation, meeting the interconnection needs of long-distance and short-distance equipment​

Supports ERPS v2 ring redundancy protocol with self-healing time ≤10ms, combined with LACP link aggregation function, building a dual redundant network architecture to ensure uninterrupted critical business​

Industrial-grade wide-temperature tolerance capability, can operate stably in the temperature range of -40℃ to 75℃ and non-condensing humidity environment of 5%-95%, adapting to extreme industrial scenarios​

IP40 protection level with metal ruggedized shell, featuring dustproof, anti-vibration and anti-electromagnetic radiation performance, can be directly deployed in harsh industrial field environments​

24Gbps switching capacity and 17.86Mpps packet forwarding rate, ensuring no congestion in concurrent communication of multiple devices, meeting the data transmission needs of large-scale industrial control networks​

Compatible with IEEE 802.1Q VLAN protocol, supporting port isolation and traffic division, improving network security and management efficiency, avoiding the impact of broadcast storms​

Supports comprehensive diagnostic functions such as port traffic statistics and link fault alarm, fault information is fed back in real time, facilitating rapid location of network problems and reducing operation and maintenance costs​

DIN rail/rack-mounted dual installation methods, flexible and convenient installation, adapting to different computer room layouts and on-site installation space constraints​

Wide-range power supply design, withstanding voltage fluctuations and transient sags, adapting to complex industrial power grid environments, ensuring continuous and stable power supply to equipment​

Adopts optimized heat dissipation structure and low-power design, low temperature rise during long-term operation, MTBF of more than 350,000 hours, meeting the 24/7 continuous operation requirements of industrial networks​

Compatible with mainstream industrial communication protocols and third-party equipment, can be seamlessly integrated into existing industrial control networks, reducing system upgrade and integration costs​
