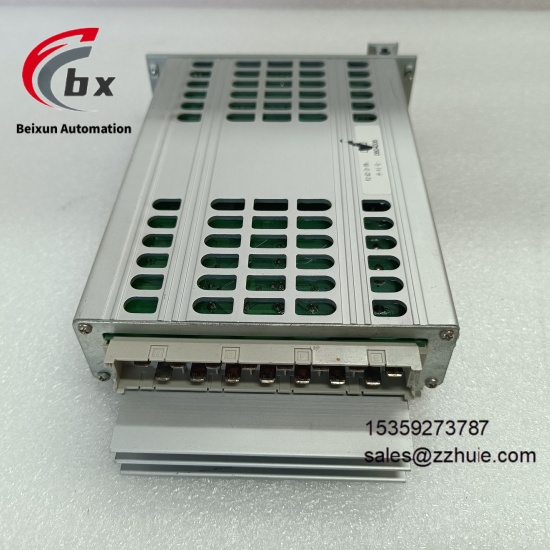

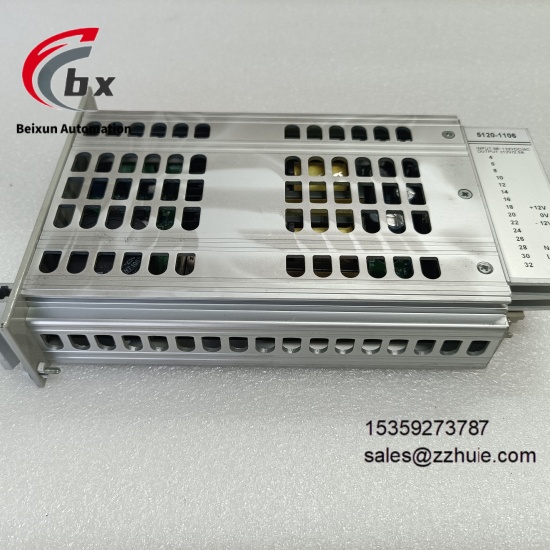

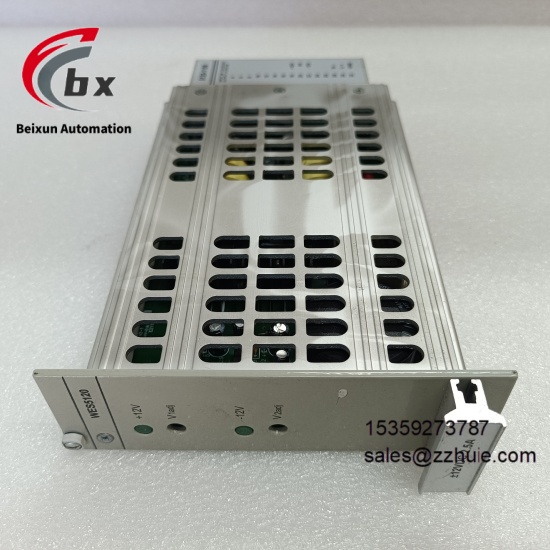

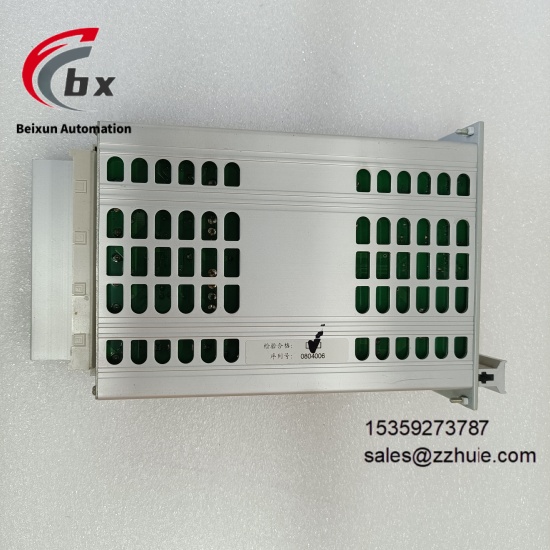

GE WES5120 5120-1106 Ethernet switch

GE WES5120 5120-1106 Ethernet switch

SPECIFIC PARAMETERS​

Brand GE​

Product Series Industrial Communication Full Gigabit Ethernet Switch Series​

Product Type Full Gigabit Industrial-grade Ethernet Switch​

Model WES5120 5120-1106​

Working Voltage 24VDC Wide Range Adaptation 18-36VDC / 110-240VAC (Optional)​

Working Temperature -40℃ to 75℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP40 (Rail-mounted) / IP20 (Rack-mounted, Optional)​

Installation Method DIN Rail Installation/19-inch Rack-mounted Installation​

Port Configuration 8 10/100/1000BASE-TX Gigabit Electrical Ports 2 1000BASE-SX/LX Gigabit Optical Ports (SFP Slots)​

Transmission Rate 10Mbps/100Mbps/1000Mbps Auto-negotiation​

Network Protocols IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z​

Redundancy Protocols Support ERPS Ring Redundancy (Self-healing Time ≤20ms) STP/RSTP/MSTP​

Switching Capacity 20Gbps​

Packet Forwarding Rate 14.88Mpps​

Buffer Capacity 4MB​

Current Consumption Typical 180mA (24VDC) Maximum 300mA (24VDC)​

Size 130mm×100mm×50mm (Rail-mounted) / 44mm×438mm×220mm (Rack-mounted)​

Weight 0.8kg (Rail-mounted) / 2.5kg (Rack-mounted)​

Power Consumption Typical 5.4W Maximum 9W​

Certification Qualification CE UL CSA IEC 61010-1 IEC 61850-3 EN 55032 Class A​

Compatible System GE D20 Series Control Systems SCADA Systems Industrial Ethernet-compatible Devices Distributed Control Networks​

Diagnostic Function Support Port Status Indication Link Fault Alarm Power Supply Fault Detection Ring Network Status Monitoring​

Anti-interference Level Complies with EN 55032/EN 55035 Industrial EMC Standards​

MTBF (Mean Time Between Failures) ≥300,000 Hours​

PRODUCT PERFORMANCE​

Full Gigabit port design, combination of 8 electrical ports and 2 optical ports, supporting 10/100/1000Mbps auto-negotiation, meeting the high-speed data transmission requirements of industrial control networks​

Supports ERPS ring redundancy protocol with self-healing time ≤20ms, combined with STP/RSTP/MSTP protocols, ensuring uninterrupted network links and improving system reliability​

Industrial-grade wide-temperature tolerance capability, can operate stably in the temperature range of -40℃ to 75℃ and non-condensing humidity environment of 5%-95%, adapting to extreme industrial scenarios such as alpine and high temperature​

IP40 protection level (rail-mounted), with dustproof and anti-vibration performance, can be directly installed in industrial sites without additional protective boxes​

20Gbps switching capacity and 14.88Mpps packet forwarding rate, ensuring no congestion during large-scale concurrent data transmission, and guaranteeing real-time interaction of control commands and monitoring data​

Compatible with IEEE 802.3 series standards, enabling seamless interconnection with industrial Ethernet equipment of different brands, breaking the barrier of equipment compatibility​

Supports diagnostic functions such as real-time port status indication and link fault alarm, fault information is intuitively fed back, facilitating rapid location of network problems and reducing operation and maintenance costs​

DIN rail/rack-mounted dual installation methods, flexible and convenient installation, adapting to different computer room and on-site layout requirements​

Industrial-grade ruggedized shell with optimized heat dissipation structure, strong long-term operation stability, MTBF of more than 300,000 hours, meeting the 24/7 continuous operation requirements of industrial networks​

Wide-range power supply design, withstanding voltage fluctuations and transient sags, adapting to complex industrial power grid environments, ensuring continuous power supply to equipment​

Supports port mirroring and VLAN division functions, facilitating network management and data monitoring, improving the security and manageability of industrial networks​
