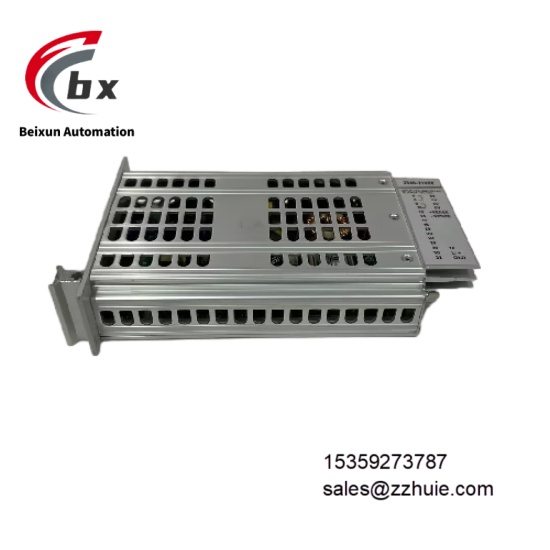

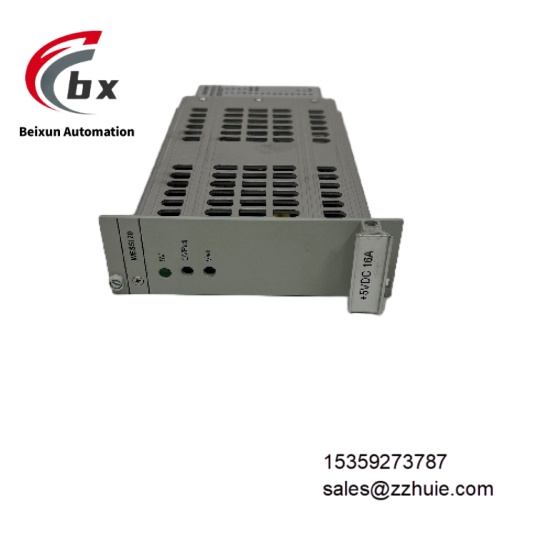

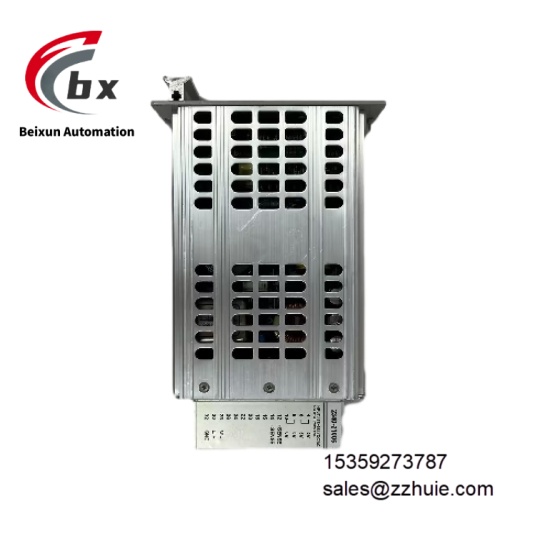

GE WES5120 2340-21006 On site control main unit

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC
Processor: High-performance industrial-grade processor, supporting parallel processing of complex control tasks
Communication Interfaces: 1×Ethernet port, 1×RS232 port, 1×RS485 port
Supported Protocols: Modbus RTU/TCP, TCP/IP, Ethernet communication protocols
Isolation Level: 2kV AC between signal channels and system (1 minute)
Protection Functions: Overvoltage protection, short circuit protection, ESD protection
Power Consumption: ≤30W under normal operation
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -45°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP20 (module itself)
Mechanical Parameters
Dimensions: 482.6mm (W) × 304.8mm (H) × 88.9mm (D)
Mounting Method: 19-inch standard rack mounting
Housing Material: Cold-rolled steel sheet (powder-coated surface)
Terminal Type: Plug-in terminals, compatible with 16-22 AWG wires

Product Performance

This controller adopts a high-performance processor architecture with a logic operation cycle ≤15ms, supports multiple programming methods such as ladder logic, function block diagram and structured text, and can process more than 500 control loops. Integrated with multi-protocol communication engine, the Ethernet data transmission delay is ≤10ms, and the RS485 communication response time is ≤5ms, realizing real-time data interaction with sensors, actuators and upper systems.

Adopting a rugged structural design, it has vibration resistance, shock resistance and wide-temperature operation capabilities, and can maintain stable operation in dusty, humid and strong electromagnetic interference environments. Built-in comprehensive self-diagnostic system, it real-time monitors processor status, communication links and power voltage, with fault diagnosis coverage ≥98%, and fault information is instantly fed back through LED indicators.

Fully compatible with GE IC698/IC697 series PLC modules, it supports online programming and firmware upgrade, enabling system maintenance and function expansion without shutdown. The mean time between failures (MTBF) is ≥350,000 hours, meeting the requirements of long-term continuous operation in industrial scenarios.
