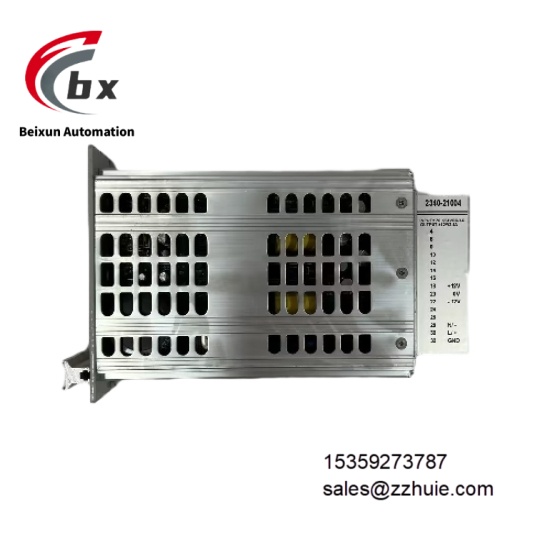

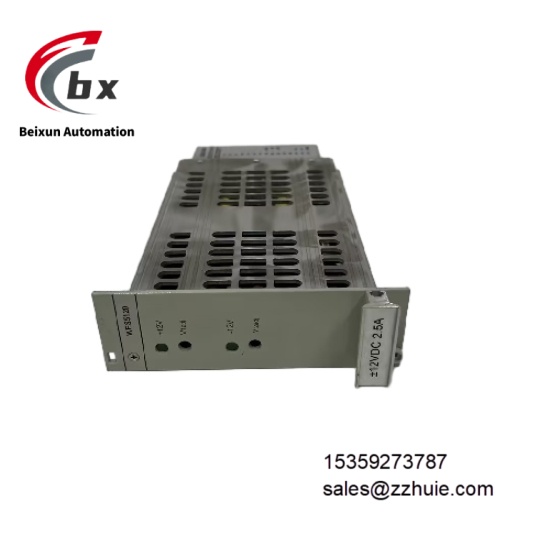

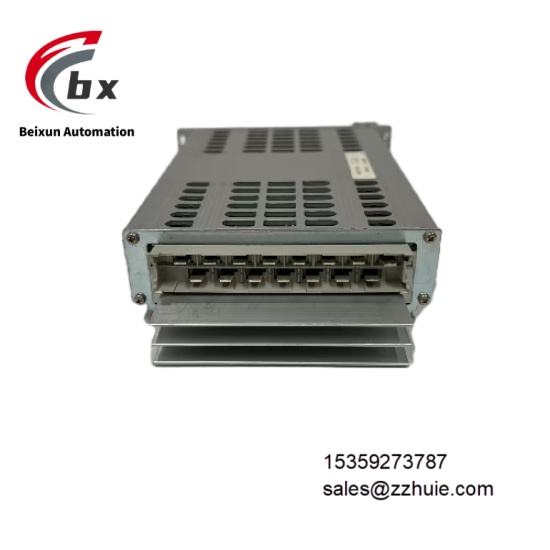

GE WES5120 2340-21004 Controller main module

Specific Parameters

Electrical Parameters
Power Supply Voltage: 24V DC, supporting 18-36V DC wide-range input
Analog Input Channels: 20 HART/universal analog input channels, input range ±10V DC
Digital Input Channels: 14 channels, low level < 1V, high level 4-30V
Output Channels: 2 analog output channels, up to 12 relay output channels
Communication Interfaces: 2 Ethernet ports, 7 RS-232/485 serial ports, 2 D.20 Link HDLC ports, USB maintenance port
Supported Protocols: Modbus RTU/TCP, OPC, IEC 61850, DNP3
Isolation Level: 2kV AC between channels and between channels and system (1 minute)
Protection Functions: Overload protection, overheat protection, short circuit protection, reverse polarity protection
Measurement Accuracy: ±0.1% FS
Power Consumption: ≤15W under normal operation
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Protection Class: IP20 (module itself)
Mechanical Parameters
Dimensions: 160mm×100mm×40mm
Weight: Approximately 800g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Housing Material: Flame-retardant epoxy resin (UL 94 V-0 grade)
Terminal Type: Plug-in terminals, compatible with 14-22 AWG wires

Product Performance

WES5120 2340-21004 is equipped with a high-performance industrial-grade processor, with data processing delay ≤2ms, supporting synchronous acquisition of 20 analog signals and 14 digital signals, capable of executing complex PID control logic and sequence control programs, with program capacity ≥50,000 steps. It integrates multi-protocol communication module, Ethernet data transmission rate ≥100Mbps, supports wired/wireless dual-link redundancy, and automatic switching time <50ms after network interruption.

Adopting dual electrical isolation and anti-interference circuit design, the common mode rejection ratio is ≥120dB, maintaining stable signal acquisition and control output in strong electromagnetic industrial environments. Built-in comprehensive self-diagnostic system, it can real-time monitor power status, communication links, I/O channels and program operation status, with fault diagnosis coverage ≥99%, triggering alarm and recording event logs within 10ms after fault occurrence.

Supporting hot-swappable function, module replacement does not require system shutdown, fully compatible with GE Mark VIe control system and D20 I/O modules, and supports online parameter configuration and logic configuration via ToolboxST software. The mean time between failures (MTBF) is ≥400,000 hours, adapting to continuous operation in industrial scenarios.
