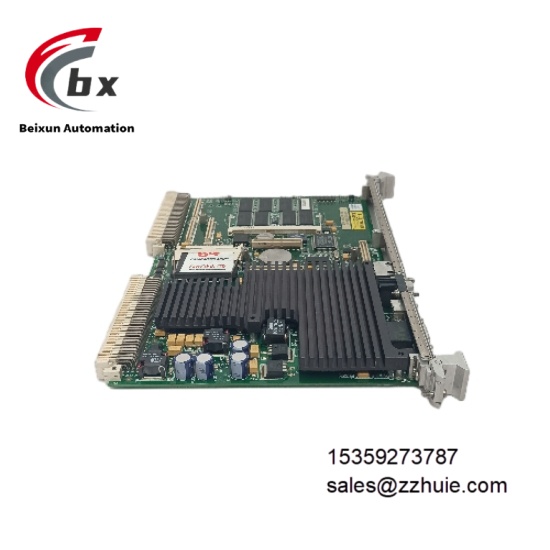

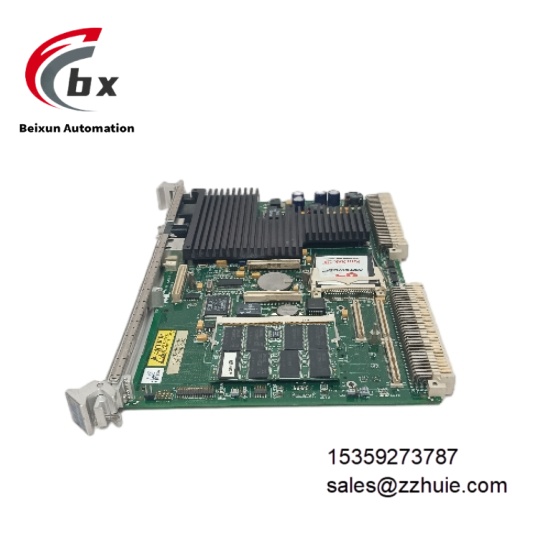

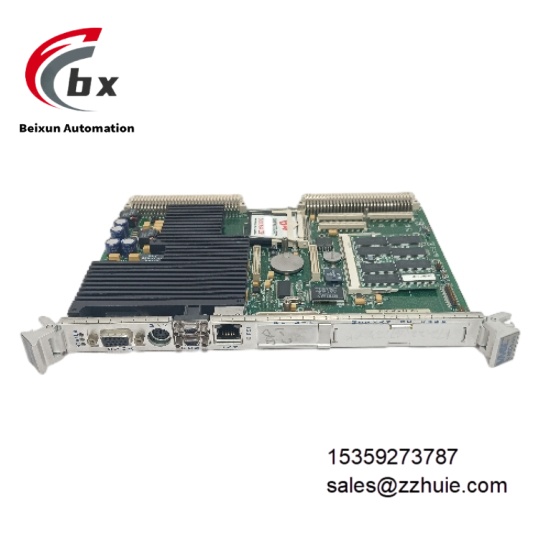

GE VMIVME7698 Ethernet communication module

Specific Parameters

Electrical Parameters
Communication Interfaces: 2 independent Gigabit Ethernet interfaces (RJ45, supporting 10/100/1000Mbps auto-negotiation), supporting MDI/MDI-X auto-switching
Supported Protocols: Standard TCP/IP, UDP, ICMP; industrial-grade Profinet IRT, Modbus TCP; VMEbus protocol (compatible with VME64x)
Data Transmission Rate: Up to 1000Mbps for Ethernet ports (full-duplex), up to 160MB/s for VMEbus interface (32-bit data width)
Power Supply: Powered by VME rack backplane, +5V DC current consumption ≤200mA, ±12V DC current consumption ≤80mA
Isolation Level: Optical isolation between Ethernet interfaces and VMEbus, isolation voltage 2.5kV AC (1 minute), insulation resistance ≥100MΩ (500V DC)
Redundancy Function: Supports network redundancy (STP/RSTP protocol), dual-port fault switching time ≤50ms
Data Buffer: Built-in 8MB transmit buffer and 8MB receive buffer, supporting data overflow protection
Power Dissipation: ≤15W under normal operation, ≤18W under full-load data transmission
Environmental Parameters
Operating Temperature: -40°C to 70°C (wide-temperature industrial grade, non-condensing)
Storage Temperature: -55°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation for 72 hours at 90% humidity and 40°C without failure)
EMC Immunity: Complies with EN 61326-1 industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge), RF radiation protection ≤54dBμV/m (30MHz-1GHz)
Vibration Resistance: 10-500Hz, 1.5g acceleration (IEC 60068-2-6 standard, sinusoidal vibration, each axis tested)
Shock Resistance: 50g acceleration, 11ms duration (IEC 60068-2-27 standard, half-sine shock, 3 times per axis)
Protection Class: IP20 (module itself, dependent on 3U VME rack overall protection)
Certification Standards: CE (EMC and safety), UL 508C (industrial control equipment), VMEbus Consortium compatibility certification
Mechanical Parameters
Dimensions: 160mm (L) × 100mm (W) × 233mm (H) (3U VME standard size, fits 3U VME rack slots)
Weight: Approximately 0.8kg
Mounting Method: Plug-in installation in 3U VME rack, complying with VMEbus mechanical specifications (IEC 60917)
Housing Material: Flame-retardant reinforced aluminum alloy (anodized surface treatment, UL 94 V-0 grade)
Terminal Type: Ethernet interfaces are RJ45 (compatible with CAT5e/CAT6 cables), VMEbus is on-board gold finger connector
Indicators: Power Status (PWR, green, steady on for normal), Ethernet Status (LINK/ACT, independent bi-color LED per port, green for link/yellow blinking for transmission), Fault Status (ERR, red, steady on for interface or bus fault)

Product Performance

The data transmission delay of Ethernet ports is ≤1ms (1000Mbps full-duplex mode), and the data conversion delay between VMEbus and Ethernet is ≤2ms, meeting the low-latency requirements of industrial real-time control. It supports STP/RSTP network redundancy protocol, with dual-port fault switching time ≤50ms, ensuring uninterrupted data transmission when the network is interrupted.

Gigabit bandwidth supports concurrent transmission of large-flow data (e.g., real-time data aggregation of multi-channel sensors), with a maximum throughput of ≥900Mbps per port (TCP protocol). The combination of optical isolation design and anti-EMC performance ensures a data transmission bit error rate of ≤1×10⁻¹² under 2.5kV AC isolation voltage and strong RF environment, guaranteeing signal integrity.

The module is compatible with VME master controllers and industrial Ethernet devices from different manufacturers, supporting online firmware upgrade (no module disassembly required), and the upgrade process does not interrupt data transmission. The Mean Time Between Failures (MTBF) is ≥800,000 hours (MIL-HDBK-217F, 25℃ environment), adapting to 24/7 continuous production scenarios.
