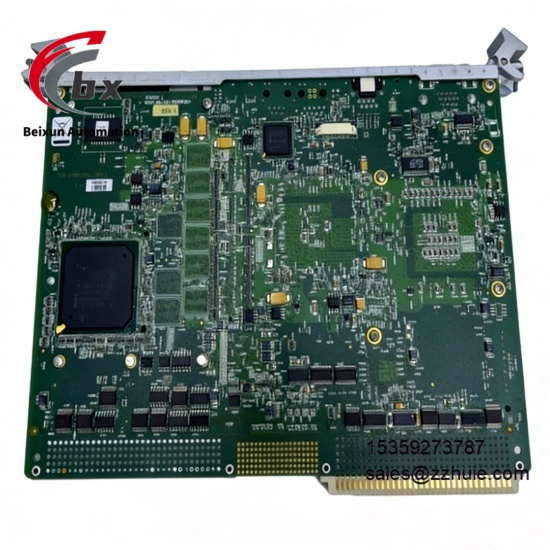

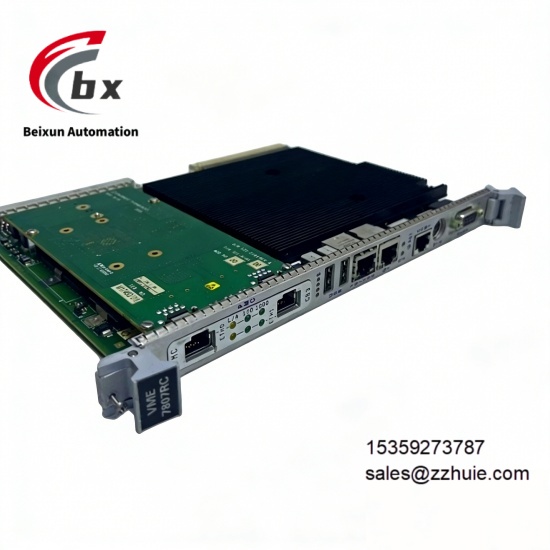

GE VMIVME-7807RC VME bus single board computer

GE VMIVME-7807RC VME bus single board computer

Specific Parameters

Brand GE (General Electric, American Original Factory), Product Series GE VMIVME Series, GE Fanuc VME Single Board Computer Series

Product Type Industrial-Grade High-Performance VMEbus Single Board Computer (SBC), Embedded Processor Module, Real-Time Control Computing Component, Original Authentic Spare Part

Model GE VMIVME-7807RC (Derivative Models Include VMIVME-7807RC-41400, VMIVME-7807RC-420001)

Country of Origin United States (Produced by GE Fanuc Intelligent Platforms Original Factory, Affiliated to GE)

Compatible Devices Embedded Real-Time Control Systems, Data Acquisition Systems, VMEbus Backplanes, PMC Expansion Sub-Cards, Industrial Automation Equipment, Automatic Test Equipment (ATS), Radar Signal Processing Equipment, Electronic Warfare Systems, Flight Simulation Equipment, VMIACC-0586/ACC-0586RC Rear Transition Modules, EnerVista Configuration Software

Core Functions Real-Time Data Processing, VMEbus Communication, PMC Expansion, High-Speed Network Communication, Dual-Head Video Display, Remote Ethernet Booting, Fault Self-Diagnosis, System Configuration, Timer Control, Watchdog Protection, Non-Volatile Data Storage

Product Structure 6U VME Eurocard Standard Size, Single-Slot Design, Passive Cooling, Industrial-Grade Compact Enclosure, Rugged and Durable, Adaptable to VME Chassis Installation, Can Be Used as System Controller or Peripheral Board

Processor Intel Pentium M Processor, Maximum Main Frequency Up to 1.8GHz, Built-in High-Speed Cache, With Efficient Real-Time Data Processing Capability

Chipset Adopting Intel 855GME Chipset, Supporting Efficient Operation of Processor and Expansion of Various Peripherals

Memory Supporting 1 SO-DIMM Memory Module, Can Provide 1.0GB DDR SDRAM, Optional 512MB Soldered Memory, Maximum Memory Capacity Up to 1.5GB

Storage Equipped with Optional On-Board CompactFlash Socket, Secondary IDE Interface Supporting Up to 2GB CompactFlash Expansion; Providing 32KB Non-Volatile RAM, Supporting Data Power-Failure Preservation; Supporting Ultra IDE Drive and Serial ATA (SATA) Interface (Rear I/O)

BIOS System BIOS and Video BIOS are Provided in Reprogrammable Flash Memory, Supporting Flexible Configuration, Configuration Information Stored in Battery-Supported Non-Volatile Storage Chip

Expansion Slot 1 PMC Expansion Site, Compliant with PCI-X Standard, Operating Frequency 66MHz, With Front Panel Access, Optional P0 and VITA 31.1 Interfaces

Bus Interface Compatible with VMEbus Specification, Supporting VME System Controller and Peripheral Board Modes, Can Be Seamlessly Connected to Standard VME Chassis Systems

Interface Resources Dual Gigabit Ethernet Controllers (Intel 85546GB), Supporting 10BaseT, 100BaseTX and 1000BaseTX Ethernet Standards, Equipped with Corresponding Interfaces; 1 10/100Mbit Ethernet Controller (Front Panel Connection); 3 Serial Ports, Among Which COM1 is Located on the Front Panel, COM2, COM3 and COM4 Are Located on the Rear I/O, All Compatible with 16550 Standard; 4 USB 2.0 Ports, 2 Located on the Front Panel, 2 Located on the Rear I/O; PS/2 Keyboard and Mouse Interfaces (Front Panel Connection); Digital Video Interface (DVI-D, Rear I/O); Miniature Speaker

Video Control Built-in SVGA Controller (Front Panel Connection), Supporting Multiple Analog Display Resolutions; Equipped with Digital Video Controller, Supporting Dual-Head Display Function, Maximum Resolution Up to 1600×1200×256 Colors (Single-View Mode), Providing Hot Keys for Display Settings

Timer 4 Software-Controlled Universal Timers, Including 2 16-bit and 2 32-bit Timers, Supporting Optional Clock Source Configuration; Built-in Programmable Watchdog Timer with Reset Function, Timeout Value Can Be Set via Software

Control Switches Equipped with Multiple User-Configurable Switches, Including VME System Controller Switch, Password Clear/BIOS Boot Mode Switch, Universe II Mapping/System Fault Generation Switch, VME Strapping Switch

Supported Operating Systems Windows 2000, Windows XP Professional, VxWorks, Solaris, QNX, Linux, LynxOS

Operating Temperature Range -40℃ to +70℃ (Wide-Temperature Version), Conventional Version 0℃ to +60℃, Requiring Airflow Greater Than 450LFM (Especially at the Output Side of the Heatsink)

Storage Temperature Range -40℃ to +85℃

Relative Humidity 5% to 95%, Non-Condensing, Capable of Withstanding 95% Humidity Environment at 40℃

Protection Class IP40 (Dust-Proof Design), Overall Must Be Installed in VME Chassis, Equipped with Multiple Protection Functions Including Electrostatic Discharge, Overvoltage and Overcurrent Protection

Vibration Complying with Strict Industrial Vibration Standards, Adaptable to Complex Vibration Environments in Industrial and National Defense Sites, Equipped with Vibration-Resistant Structural Design

Shock Complying with Industrial and National Defense Shock Standards, Having Good Shock Resistance, Ensuring Stable Operation of Equipment in Harsh Environments

Physical Dimensions 6U VME Standard Size, Approximately 77mm×192mm×230mm

Physical Weight Approximately 0.5kg (Body Weight), Shipping Weight Approximately 2.2kg

Mounting Method VMEbus Backplane Mounting, Panel Mounting, Adaptable to Single-Slot Installation Space, Need to Be Fixed with Ejector Handles, Facilitating Integration and Maintenance

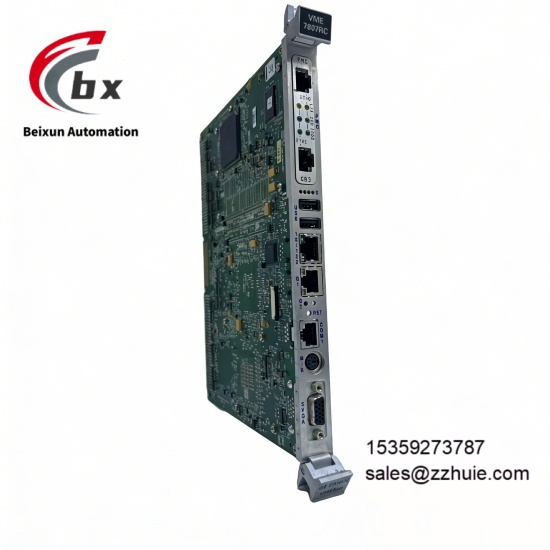

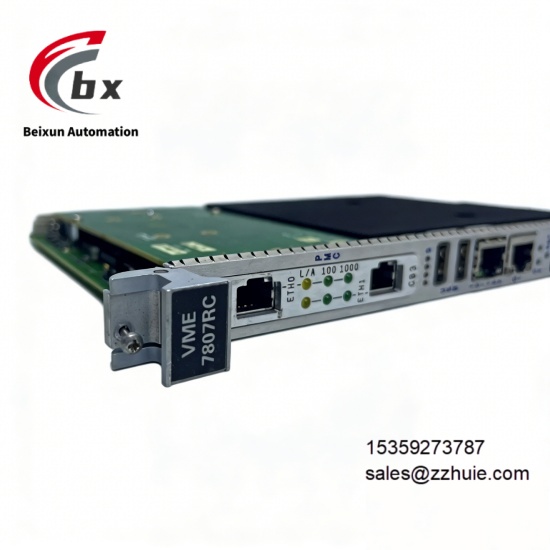

Operation Interface Front Panel Equipped with Hardware Reset Switch, Clearly Marked Various Interfaces, Status Indicators; Supporting External Display, Keyboard and Mouse, Enabling Intuitive Viewing of Operation Status and Fault Information, Configuring Display Modes via Hot Keys

Diagnostic Function Built-in Complete Fault Self-Diagnosis Module, Supporting Enhanced Bus Error Handling, Real-Time Monitoring of Equipment Operation Status, Quickly Locating Fault Causes; BIOS Setup Program Can Manage Various Configuration Options, Facilitating System Debugging

Product Material Industrial-Grade High-Strength Reinforced Enclosure, Conformal Coated PCB, High-Temperature Resistant Insulation Material, Built-in Anti-Electromagnetic Interference, Anti-Corrosion and Anti-Dust Protection Components, Complying with RoHS Directive Requirements

Special Functions Supporting Remote Ethernet Booting, Can Boot from Network Server via PXE, BOOTP, DHCP and Other Network Boot Protocols; Equipped with Field-Replaceable CMOS Battery, Supporting Battery Disconnection Function for Long-Term Storage; Supporting Front and Rear I/O Access via Rear Transition Modules

Product Performance

GE VMIVME-7807RC is an original GE device with extremely strong adaptability, which can be perfectly adapted to various embedded real-time control, high-speed data acquisition and signal processing scenarios, seamlessly integrated into VMEbus systems, industrial automation systems, national defense electronic systems and laboratory automation systems, no additional adaptation components required, greatly reducing system integration complexity and commissioning costs. It can be used as the core computing unit for critical task scenarios, supporting high-precision and high-real-time requirements such as radar signal processing, electronic warfare, flight simulation and precision measurement and control, while complying with RoHS Directive requirements, adapting to environmentally friendly industrial scenarios. The product has excellent computing, communication and expansion performance, adopting high-performance Intel Pentium M processor and Intel 855GME chipset, with maximum memory capacity up to 1.5GB, which can quickly process a large amount of real-time data; dual Gigabit Ethernet controllers support high-speed network communication, 1 PCI-X specification PMC expansion slot can flexibly expand functions, dual-head video display capability meets complex display needs, and rich I/O interfaces can flexibly connect various peripherals. The product has outstanding reliability, adopting passive cooling design, industrial-grade high-quality components and conformal coated PCB design, with excellent anti-electromagnetic interference and anti-vibration impact capabilities. The wide operating temperature range can adapt to harsh scenarios such as national defense, aerospace and heavy industry. The wide-temperature version of -40℃ to +70℃ can operate continuously and stably in extreme temperature environments with a long mean time between failures, meeting the long-term stable operation needs of critical task scenarios. The product is convenient for operation and maintenance, supporting on-site programming and remote debugging. The complete fault self-diagnosis function and bus error handling mechanism facilitate maintenance personnel to quickly locate and handle faults; reprogrammable BIOS and flexible switch configuration reduce system debugging difficulty, and rich interface resources and rear transition module support improve the convenience of peripheral connection and maintenance, providing stable and reliable embedded computing support for critical tasks in national defense, aerospace, industrial automation and other fields.
