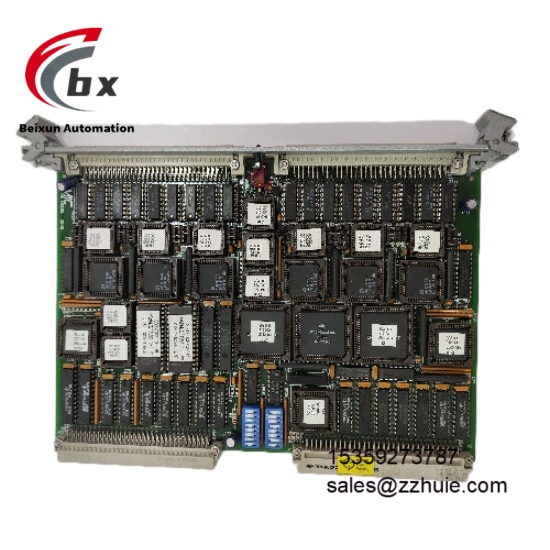

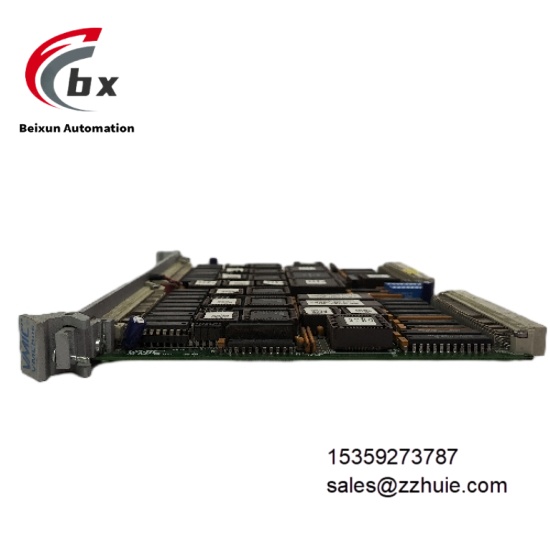

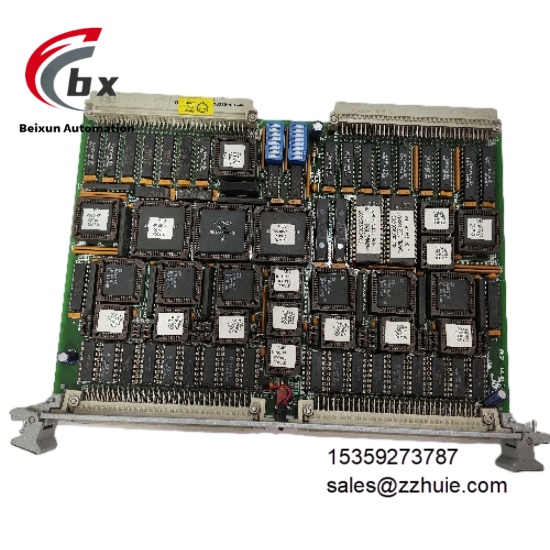

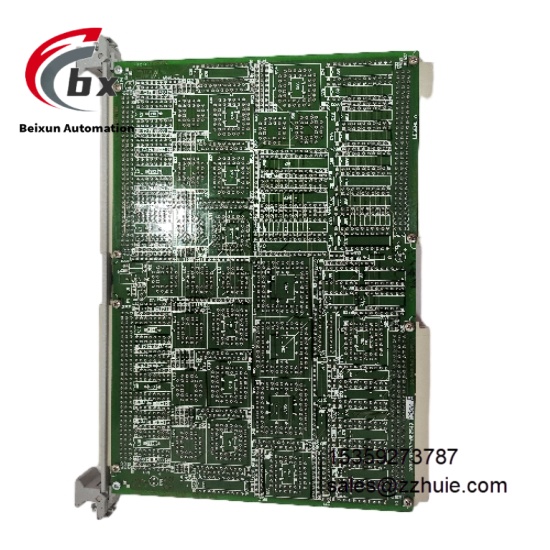

GE VMIVME 2540-300 Counter/controller module
Specific Parameters
- Electrical Parameters
Processor: 15 MHz Motorola 68HC000 microprocessor, directly configuring and managing timing controllers
Memory Configuration: 128 MB SDRAM, 32 MB Flash, supporting up to 512 MB expansion
Channel Configuration: Optional 4, 8, 16, or 24 channels, 24 discrete output channels
Signal Specifications: Input supports TTL, CMOS, differential signal types; output 12-bit resolution, ±10V voltage range, 10mA current drive capability
Communication Interfaces: Dual Ethernet ports, two RS-232/422/485 serial ports, two USB 2.0 ports, one PMC site, VMEbus interface
Power Requirements: +5V±5%/-2.5V, typical current 4.25A, maximum current 5A
Power Consumption: ≤20W under normal operation, ≤25W under full load
Isolation Level: Electrical isolation between power supply and signals, isolation voltage 250V RMS
Data Transmission: Supports DMA data transfer, compliant with ANSI/IEEE 754-1985 32-bit floating-point arithmetic standard
- Environmental Parameters
Operating Temperature: -40°C to 85°C (full temperature range without derating)
Storage Temperature: -55°C to 90°C
Relative Humidity: 5% to 95% (non-condensing, continuous operation for 72 hours at 90% humidity and 40°C without failure)
EMC Immunity: Complies with EN 61326-1 industrial standard, ESD protection ±15kV (air discharge), ±8kV (contact discharge)
Vibration Resistance: 10-500Hz, 2g acceleration (IEC 60068-2-6 standard, sinusoidal vibration)
Shock Resistance: 30g acceleration, 11ms duration (IEC 60068-2-27 standard, half-sine shock)
Certification Standards: CE (EMC and safety), UL 508C (industrial control equipment)
- Mechanical Parameters
Dimensions: 6U VMEbus standard size, 233.35mm×160mm×40mm
Weight: Approximately 1.2kg
Mounting Method: VMEbus chassis slot mounting, single-slot occupancy
Housing Material: Flame-retardant reinforced aluminum alloy (anodized surface treatment, UL 94 V-0 grade)
Terminal Type: Front-panel DB9 serial interface, RJ45 Ethernet interface, USB Type-A interface
Indicators: Power Status (PWR, green steady on), Operation Status (RUN, green 1Hz blinking), Channel Status (24 bi-color LEDs, green on for valid), Fault Status (ERR, red steady on)
Product Performance
Event counting capability up to 4 gigabit events; frequency measurement range 1.16×10⁻³Hz to 2.5MHz; period/pulse width measurement range 400ns to 8.5899×10⁶s; orthogonal position measurement supports sin/cos signals up to 1MHz, with 32-bit counter and limit/modulus check functions.
Square wave/pulse sequence generation range 0.0076Hz to 2.5MHz, output signal accuracy ±0.1%, inter-channel synchronization error ≤10ns. VMEbus interface data transfer rate up to 29.5MB/s, supporting redundant transmission mode (14.8MB/s). DMA data transfer reduces host response time, meeting real-time control requirements.
Built-in self-test function covers power supply, processor, memory, and channel circuits, with diagnostic coverage ≥99%, and fault information uploaded in real time via VMEbus. It maintains stable operation in the wide temperature range of -40°C to 85°C, with Mean Time Between Failures (MTBF) ≥800,000 hours (MIL-HDBK-217F, 25℃ environment).
