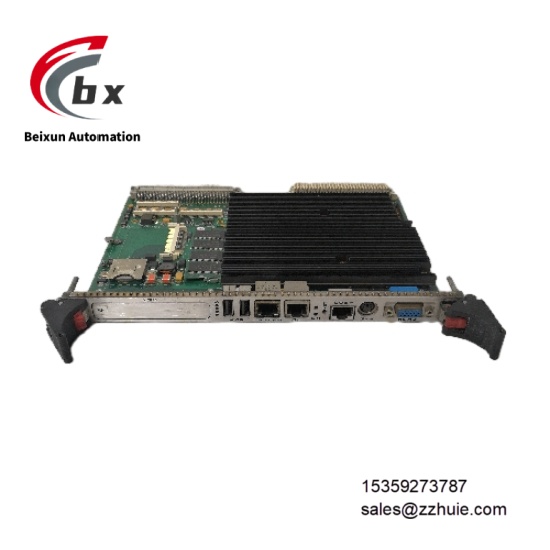

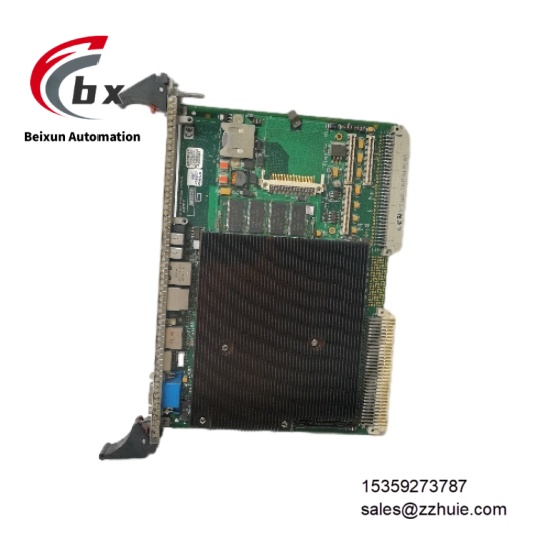

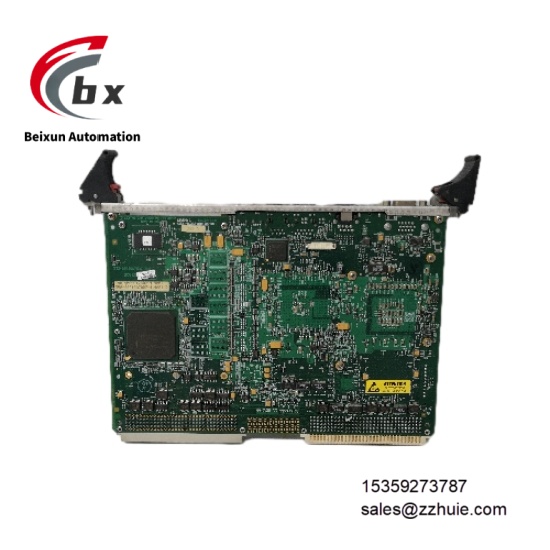

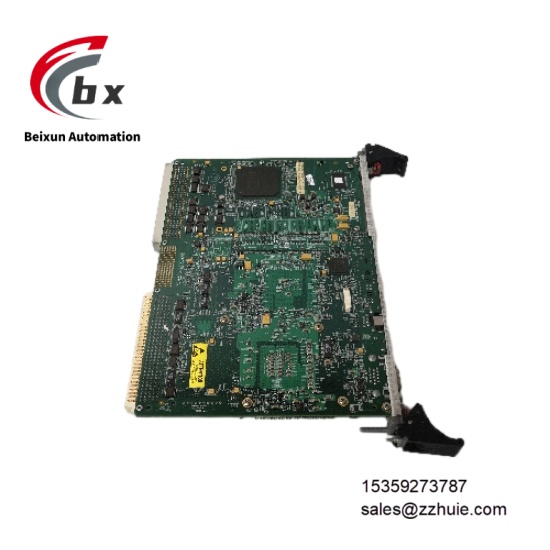

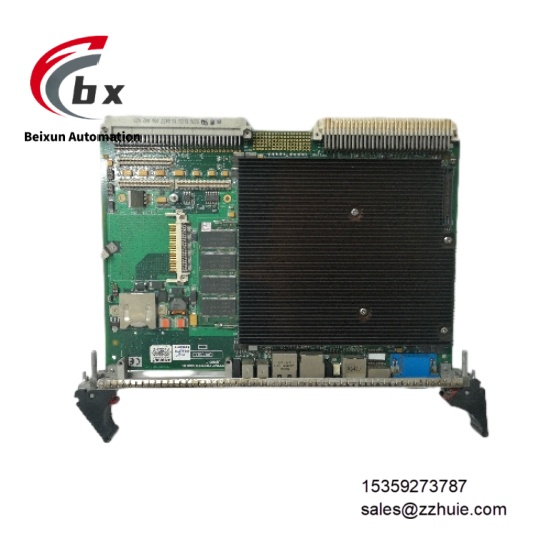

GE VMIVME-017807-414001 350-0001007807-414001 D Bus data acquisition and communication module

GE VMIVME-017807-414001 350-0001007807-414001 D Bus data acquisition and communication module

Specific Parameters

Electrical Parameters

Power Supply Voltage: +5V DC (±5%), ±12V DC (±10%)Power Consumption: Maximum 3A for +5V circuit, maximum 0.5A for ±12V circuit, total power consumption ≤18WSignal Input: 8 analog inputs (supports 4-20mA/0-10V), 16 digital inputs (24V DC, PNP/NPN compatible)Signal Output: 4 analog outputs (4-20mA, maximum load 500Ω), 8 digital outputs (24V DC, 2A per channel)Communication Interfaces: VMEbus P1/P2 standard connectors (32-bit data bus, 33MHz bus frequency), 1 RS485 (supports Modbus RTU), 1 10/100Mbps Ethernet (supports EtherNet/IP)Sampling Rate: Maximum 100Hz per channel for analog input, supporting channel group synchronous samplingMeasurement Accuracy: Analog input ±0.1% FS, analog output ±0.2% FSIsolation Level: 2.5kVrms electrical isolation between input/output/power supply, compliant with IEC 61010-1 standardDiagnostic Functions: Supports channel open/short circuit detection, communication interruption alarm, power abnormality monitoring, and real-time fault signal output

Environmental Parameters

Operating Temperature: -40℃ to 70℃ (non-condensing environment)Storage Temperature: -55℃ to 85℃Relative Humidity: 5% to 95% (non-condensing, compliant with IEC 60068-2-3 standard)Protection Rating: IP20 (module itself, requires VME chassis for overall protection)Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (sine wave), 30 minutes per axisShock Resistance: 50g acceleration (11ms duration, compliant with IEC 60068-2-27 standard)EMC Compliance: Complies with IEC 61326-1 standard, common-mode interference immunity ≥120dB, differential-mode interference immunity ≥60dB

Mechanical Parameters

Overall Dimensions: 160mm (W) × 100mm (H) × 233mm (D) (compliant with 3U VMEbus mechanical specifications)Housing Material: Cold-rolled steel plate, anti-static coating on surface, with RFI shielding functionWeight: Approximately 1.2kgMounting Method: 3U VME standard chassis slot mounting (compliant with IEEE 1101.1 mechanical standard)Wiring Method: Front removable terminal block, supporting wire diameter 0.5-2.5mm²Status Indication: Front LED indicators (displaying power, VMEbus communication, Ethernet communication, input/output fault status respectively)

Product Performance

It has strong VMEbus compatibility, fully following the IEEE 1014 standard. The 32-bit data bus and 33MHz bus frequency ensure seamless interconnection with VME controllers and other VME modules, enabling the construction of multi-node control networks without additional adaptation modules, simplifying the system building process.

Signal acquisition and processing are accurate: the 8-channel analog input with ±0.1% FS measurement accuracy and 100Hz sampling rate can accurately capture small changes in process parameters such as pressure and temperature; the analog output has linearity ≤0.2%, which can stably drive actuators such as control valves and frequency converters without long-term signal drift.

Communication stability is excellent: the dual communication interfaces of RS485 and Ethernet support redundant configuration; the Ethernet data transmission delay is ≤1ms, and the RS485 anti-interference transmission distance reaches 1200 meters, with no data loss or communication interruption in industrial strong electromagnetic environments, ensuring real-time interaction of control commands and data.

Environmental adaptability is outstanding: the wide temperature operating range of -40℃ to 70℃ covers extremely cold and high-temperature industrial scenarios; the 50g shock resistance and 1.5g vibration resistance design ensure the structural stability of the module during equipment transportation and operation, with no risk of contact loosening or component damage, meeting the long-term operation needs under complex working conditions.

Fault diagnosis is efficient: it real-time monitors channel status and communication links, triggers an alarm and uploads diagnostic information within 50ms after a fault occurs; combined with LED indicators, it can quickly locate fault types (channel/communication/power) and complete preliminary troubleshooting without disassembling the module, reducing maintenance downtime.
