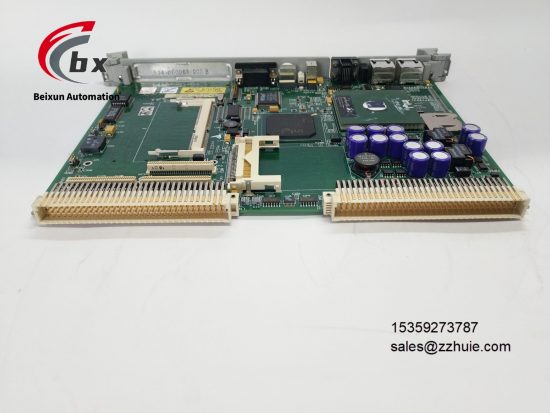

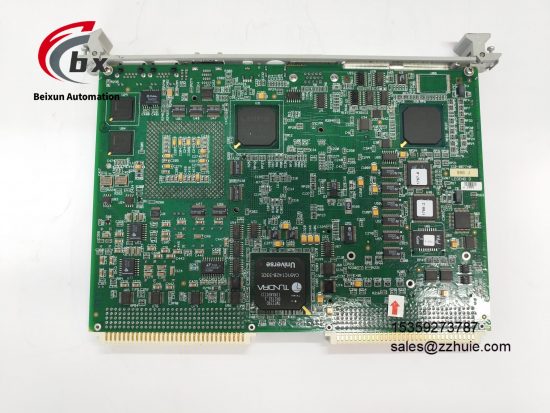

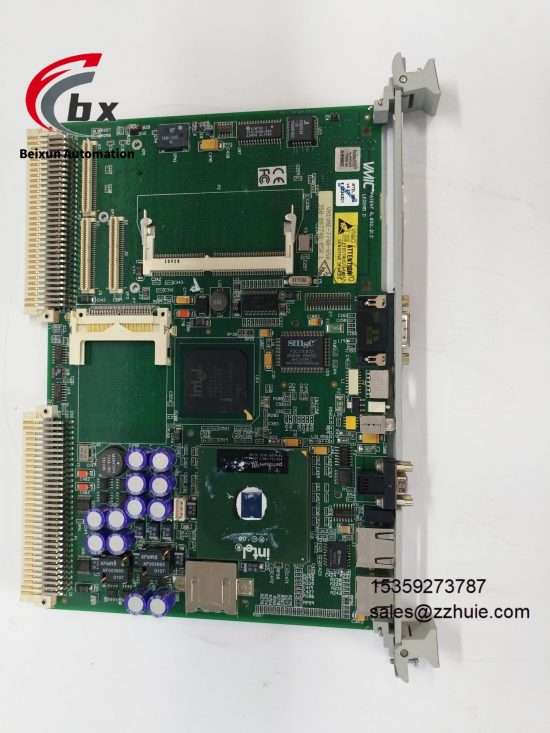

GE VMIC VMIVME-7740-850 350-007740-850 L Single board computer

GE VMIC VMIVME-7740-850 350-007740-850 L Single board computer

Specific Parameters​

Core and Function Parameters​

Product Type Industrial-grade VMEbus Single-Board Computer (SBC)​

Manufacturer GE VMIC​

Model VMIVME-7740-850, Part Number 350-007740-850 L​

Series VMIVME-7740 Series​

Core Functions Embedded Data Processing, Real-time Control, Multi-device Interconnection, VMEbus Control, Graphics Display​

Processor Intel Pentium III PGA370 socket processor, 850MHz clock speed (32-bit addressing, 64-bit data bus)​

Memory Configuration 144-pin SODIMM slot, maximum 512Mbyte SDRAM; 32Kbyte non-volatile SRAM​

Storage Expansion Secondary IDE port supports up to 192Mbyte IDE CompactFlash (bootable)​

Graphics Function AGP SVGA controller, 4Mbyte SGRAM video memory, supporting maximum resolution of 1600×1200×64000 colors​

Interface Configuration Two Fast Ethernet ports (10BaseT/100BaseTX), two 16550-compatible serial ports, front-panel USB port, PS/2 keyboard/mouse ports, Ultra-DMA-33 hard drive/floppy drive controller, PMC expansion interface (VMEbus P2 connection)​

Bus Specification Supports VME64 modes (A32/A24/D32/D16/D08(EO)/MBLT64/BLT32), PCI-to-VMEbus bridge​

Control Functions Three programmable 16-bit timers, software-controlled watchdog timer (with reset function), VMEbus interrupt handler/interrupter/system controller​

Supported Operating Systems Windows 98 Second Edition, Windows NT/2000, Windows CE, Linux, VxWorks, QNX, Solaris, LynxOS​

Special Functions Byte-swapping hardware (supports little-endian/big-endian data interfaces), enhanced bus error handling, remote Ethernet boot, on-board real-time clock and miniature speaker​

Installation Method 19-inch rack 6U single-slot VMEbus installation​

Certification Standards Complies with VMEbus Specification Revision C.1​

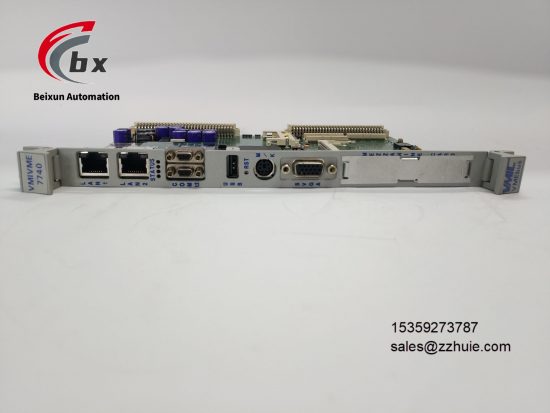

Status Indication Front-panel “vital sign” indicators (power, Ultra-IDE hard drive activity, VMEbus SYSFAIL, Ethernet status)​

Electrical and Performance Parameters​

Power Supply Voltage Complies with VMEbus standard power supply specifications​

Power Consumption Compatible with industrial embedded device standard power consumption​

Serial Port Speed Supports up to 56Kbyte/s baud rate (16-byte FIFO)​

Ethernet Speed 10/100Mbps auto-negotiation​

Interrupt Support Six-channel Address Modifier (AM-Code) programmability, user-configurable interrupter and interrupt handler​

Bus Transmission Supports VME64 multiplexed MBLT 64-bit block transfers​

System Control Supports PRI/SGL/RRS mode programmable VMEbus arbiter, system controller auto-detection​

Isolation Level Complies with industrial EMC isolation standards​

Physical and Environmental Parameters​

Overall Dimensions 6U VMEbus standard size (single slot)​

Weight Compatible with 6U VMEbus SBC standard weight​

Operating Temperature Range -40°C to 70°C​

Storage Temperature Range -55°C to 85°C​

Relative Humidity 5%-95% (non-condensing, no dew)​

Housing Material Industrial-grade rugged housing, passive heatsink design​

Vibration Resistance Complies with military/industrial embedded device vibration standards​

Shock Resistance Complies with military/industrial embedded device shock standards​

Product Performance​

850MHz Pentium III processor + 64-bit data bus architecture, supporting three instructions per clock cycle, with extremely strong complex data processing capability​

Maximum 512Mbyte SDRAM + 192Mbyte flash expansion, meeting high-capacity data storage and high-speed read/write requirements with high storage flexibility​

Integrated dual Ethernet, multiple serial ports, USB/PS/2 interfaces, adapting to multi-device interconnection with strong communication scalability​

VME64 bus specification + PMC expansion interface, supporting 64-bit block transfers and multi-module collaboration with excellent system integration compatibility​

Passive heatsink design (no moving parts) + wide operating temperature range, adapting to harsh environments such as vibration and extreme temperatures with extremely high reliability​

Multi-OS compatibility + remote boot function, adapting to different embedded application scenarios with high deployment flexibility​

1600×1200 high-resolution graphics processing, supporting multimedia-quality video output with clear visualization effects​

Built-in watchdog timer, bus error handling and non-volatile storage, ensuring continuous operation of mission-critical tasks with high stability​
