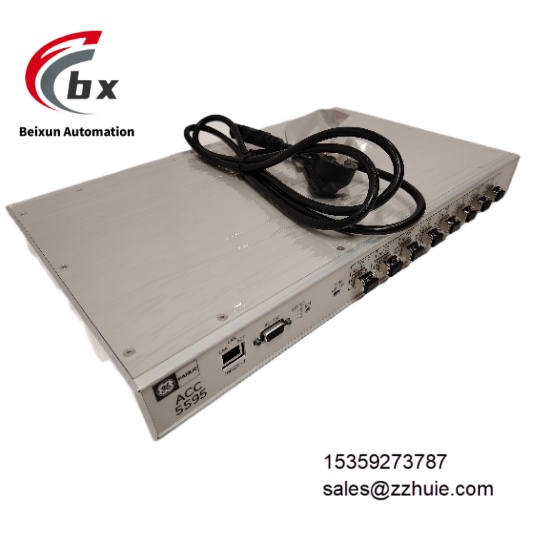

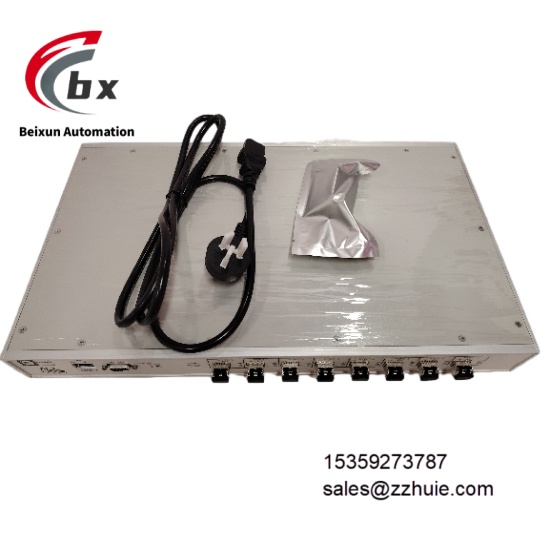

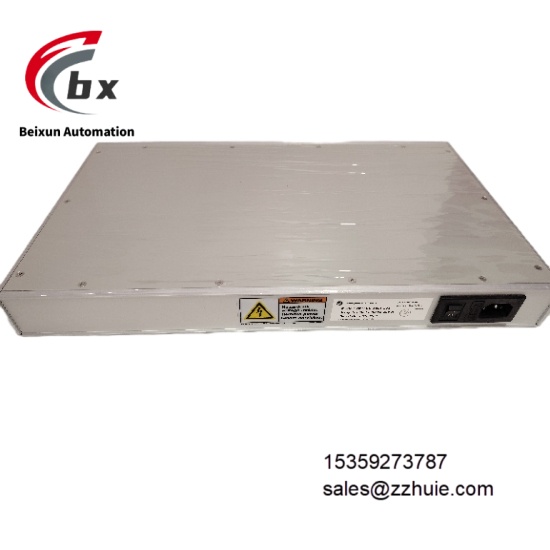

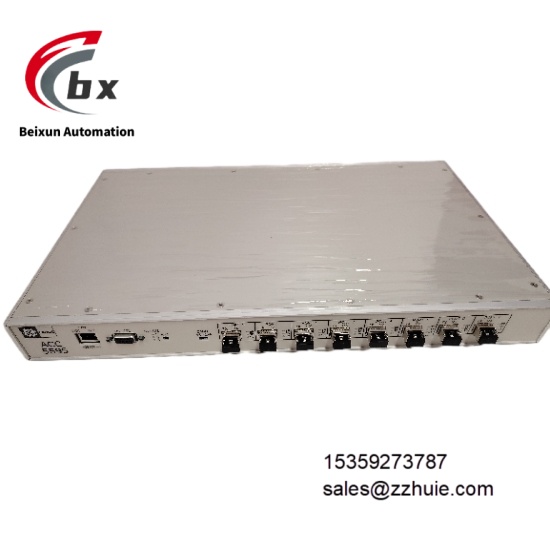

GE VMIACC-5595-208 350-805595-208N Analog input/output hybrid module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%, supporting 18-30V DC wide-range input
Channel Configuration: 4 analog inputs, 4 analog outputs, independent channel isolation
Input Parameters:
Signal Types: 4-20mA DC, 0-20mA DC, 0-10V DC, 1-5V DC (configurable)
Measurement Accuracy: ±0.05% FS
Resolution: 24-bit A/D conversion
Sampling Rate: 100Hz per channel
Output Parameters:
Signal Types: 4-20mA DC, 0-10V DC (configurable)
Output Accuracy: ±0.1% FS
Resolution: 16-bit D/A conversion
Load Capacity: Current output ≤750Ω, voltage output ≥10kΩ
Isolation Level: 2.5kV AC between channels (1 minute), 2kV AC between channels and system (1 minute)
Protection Functions: Input overvoltage protection (≤35V DC), output short circuit protection, reverse polarity protection
Power Consumption: ≤10W under normal operation
Environmental Parameters
Operating Temperature: -40°C to 70°C
Storage Temperature: -45°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 35mm (W) × 100mm (H) × 120mm (D)
Weight: Approximately 400g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant engineering plastic (UL 94 V-0 grade)
Terminal Type: Spring-loaded crimp terminals, compatible with 16-22 AWG wires

Product Performance

The input channels adopt 24-bit high-precision A/D conversion chips, combined with low-temperature drift amplifier circuits, which can accurately capture small signal fluctuations. They support 1-100ms adjustable digital filtering, effectively suppressing noise interference in industrial sites. The output channels adopt 16-bit D/A conversion design, with output response time ≤1ms and linearity error ≤±0.05% FS, ensuring stable operation of actuators.

Integrated with channel-level self-diagnostic system, it real-time monitors input open/short circuit, output overload and module power abnormalities, with fault diagnosis coverage ≥99%. Fault information is uploaded to the controller in real time via bus, and channel status is fed back with LED indicators. Independent channel isolation design provides common mode rejection ratio ≥120dB, maintaining signal stability in strong electromagnetic environments.

Fully compatible with GE RX3i, VersaMax and other series controllers, supporting online configuration of signal types and ranges via Proficy Machine Edition software, enabling maintenance without shutdown. The mean time between failures (MTBF) is ≥400,000 hours, meeting continuous production needs.
