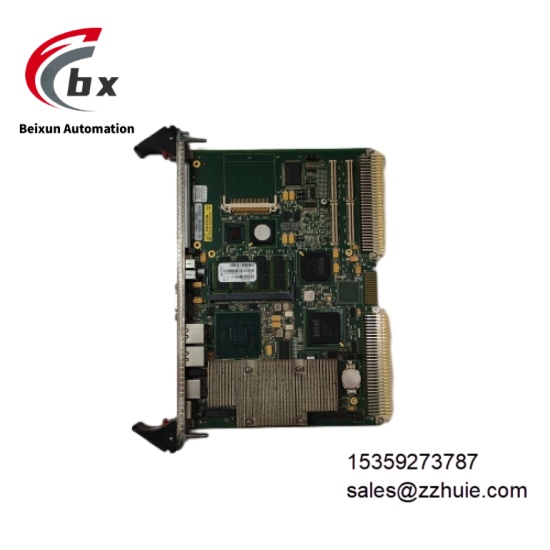

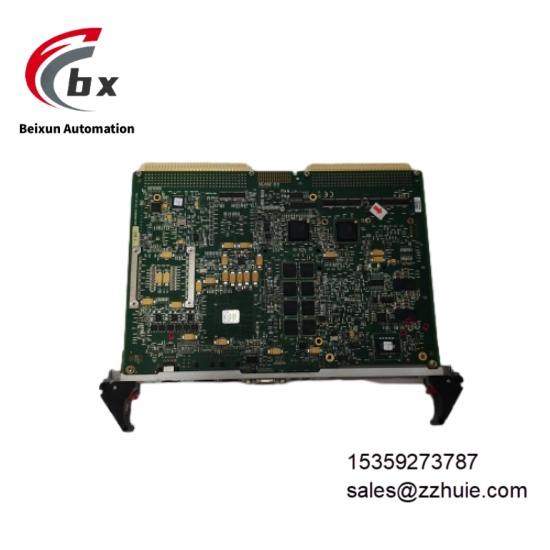

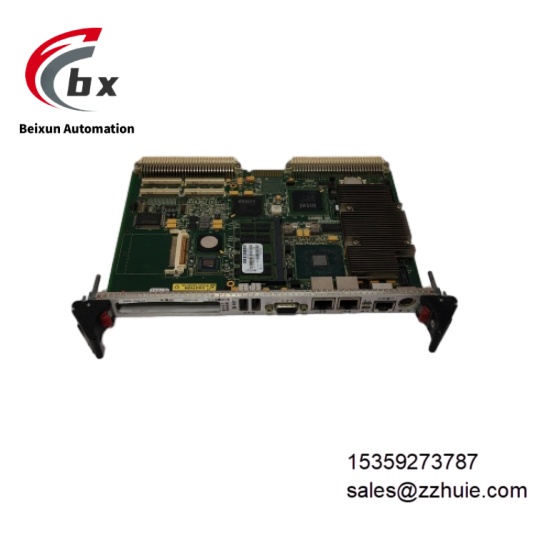

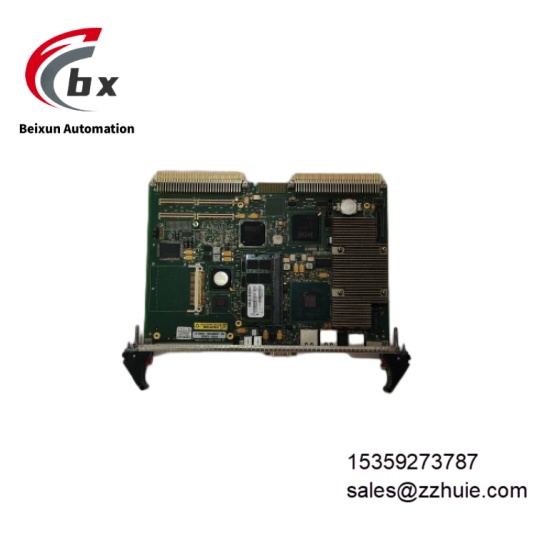

GE VME7865RC V7865-23003 350-9300007865-230003 M Embedded single board computer

GE VME7865RC V7865-23003 350-9300007865-230003 M Embedded single board computer

Specific Parameters

• Electrical ParametersSupply Voltage: 24V DC (supports 19.2-30V DC wide-range input)Processor: Intel Core 2 Duo 2.16GHz (4MB L2 cache)System Bus: 667MHz FSBMemory: Up to 3GB DDR2 SDRAM (supports ECC error correction)Storage: Supports 4GB bootable CompactFlash or SATA hard diskData Interfaces: Dual Gigabit Ethernet (RJ45), four USB 2.0 ports, two RS-232/422 serial portsBus Protocol: VME320 (2eSST protocol, transfer rate 320MB/s)
• Environmental ParametersOperating Temperature: -40°C to 70°C (non-condensing)Storage Temperature: -55°C to 85°CRelative Humidity: 5% to 95% (non-condensing)Vibration Resistance: 10-500Hz, 1.5g acceleration (compliant with IEC 60068-2-6)Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)Certifications: CE (EMC and safety), UL 508 industrial control equipment certification, MIL-STD-810H environmental reliability certification
• Mechanical ParametersDimensions: 160mm × 100mm × 25mm (6U standard Eurocard size)Weight: Approximately 0.8kgMounting Method: VME backplane slot installation (supports hot-swap)Housing Material: Die-cast aluminum alloy (surface conductive oxidation treatment)Connectors: Three rows of high-density pin connectors (P1/J1, P2/J2, P0/J0)

Product Performance

Powerful data processing capability: The Core 2 Duo processor, combined with a 320MB/s bus bandwidth, can simultaneously handle multi-channel high-speed signal acquisition, complex algorithm operations, and real-time control tasks, making it suitable for radar signal processing, industrial automation, and other scenarios.

Rich communication interfaces: Dual Gigabit Ethernet supports redundant network architecture, and USB and serial interfaces can directly connect to external devices to meet multi-protocol data interaction requirements. High system stability: Industrial-grade component selection and wide-temperature design ensure continuous trouble-free operation in extreme environments, with a Mean Time Between Failures (MTBF) ≥1.2×10⁶ hours (MIL-HDBK-217F standard).

Excellent compatibility: Compatible with VME64, VME64x and other bus protocols, it can be seamlessly integrated into existing VME systems and supports mainstream operating systems such as Windows Embedded, Linux, and VxWorks.
