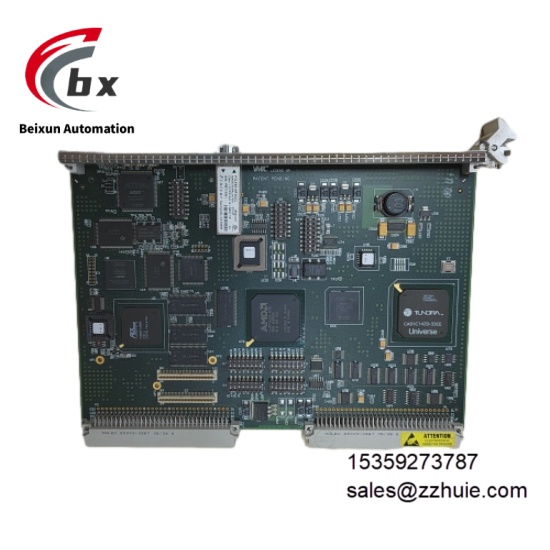

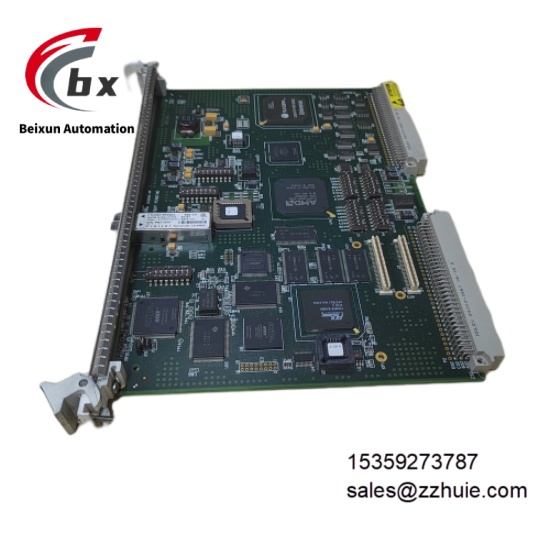

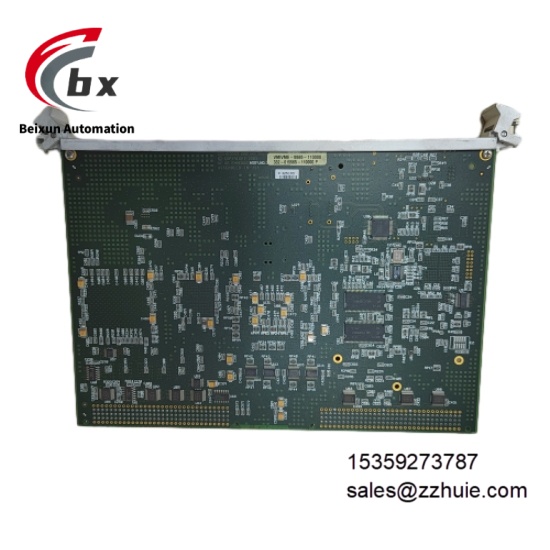

GE VME5565 VMIVME-5565-11000 332-015565-110000 P Memory Node Card Module

GE VME5565 VMIVME-5565-11000 332-015565-110000 P Memory Node Card Module

Specific Parameters

• Electrical ParametersMemory Capacity: On-board 128MB SDRAM, optional 64MB configurationTransfer Rate: Network transfer rate 43MB/s (4-byte packets) to 174MB/s (64-byte packets); VMEbus transfer rate 40MB/sFiber Optic Interface: Dual fiber channels (1 Tx + 1 Rx), supporting multimode and single-mode fibersTransmission Distance: Up to 300m for multimode fiber, up to 10km for single-mode fiberNode Support: Maximum 256 independent nodesBus Compatibility: Compliant with VMEbus standard, supporting 32/64-bit data transmissionSupply Voltage: 5V DC industrial standard power supplyRated Power Consumption: 10WDiagnostic Functions: Built-in data verification and error detection; supports node interrupt alarm; real-time fault status feedbackDriver Support: Compatible with VMISFT-RFM2G driver, adapting to Windows, VxWorks, Linux operating systems
• Environmental ParametersOperating Temperature: -40°C to 85°C (industrial-grade wide temperature range, no derating)Storage Temperature: -55°C to 90°CRelative Humidity: 5% to 95% (non-condensing, no persistent dew)Vibration Resistance: 10-500Hz frequency range, 1.5g acceleration (compliant with IEC 60068-2-6 standard)Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27 standard)
• Mechanical ParametersDimensions: Compliant with VMEbus 6U Eurocard standardWeight: Approximately 200gMounting Method: Standard VMEbus rack mounting, compatible with industrial control system chassisHousing Material: Flame-retardant reinforced engineering plastic (UL 94 V-0 grade, chemical corrosion resistant)Indicators: LED indicators for power status, network connection, data transmission and fault alarm

Product Performance

High data transfer rate: Up to 174MB/s for 64-byte packets, combined with 2.12 Gbaud serial fiber link, meeting real-time interaction needs of large-scale data. Ultra-low synchronization latency: Data written locally can be synchronized to all nodes within 750ns, with only 2.1μs latency for 4 nodes in ring topology, ensuring time consistency of distributed systems.

Excellent reliability: Adopts hardware-level data verification and redundant transmission mode to automatically suppress transmission errors. Industrial-grade component selection and wide-temperature design ensure Mean Time Between Failures (MTBF) ≥1.2×10⁶ hours. Strong system compatibility: Supports multiple operating systems such as Windows and VxWorks, enabling cross-platform integration with PLCs, embedded controllers and other devices. Data transmission is transparent to software with no additional processor overhead.

Outstanding network scalability: Maximum 256 nodes per network; multimode and single-mode fibers adapt to different transmission distance scenarios; ring topology design improves network fault tolerance.
