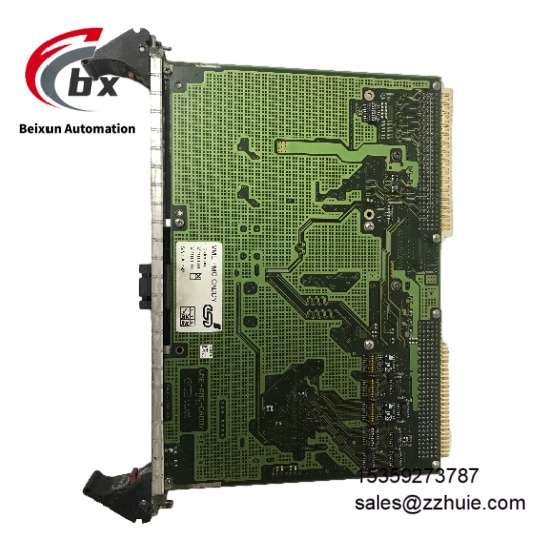

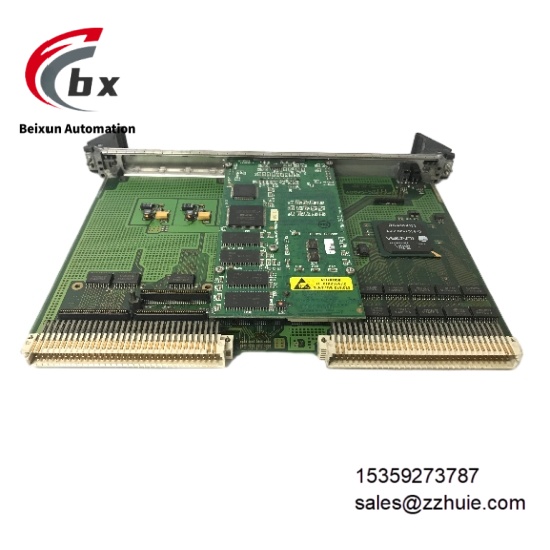

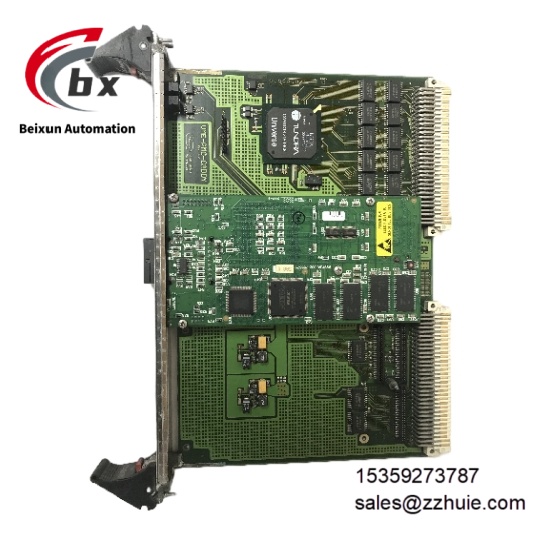

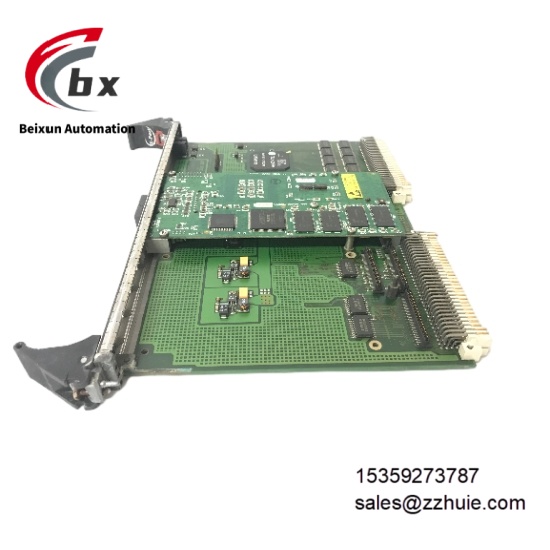

GE VME-PMC-CADDY VME bus carrier board

GE VME-PMC-CADDY VME bus carrier board

Specific Parameters

Electrical Parameters

Bus Bridging: Integrated UNIVERSE II CA91C142 VME-PCI bridging chip, supporting 33MHz clock rateBus Standard: Compliant with VME64 specification, supporting A32 address space and 32-bit data widthArbitration Level: Built-in 4-level VMEbus arbiter, supporting master/slave device mode switchingInterrupt Support: VMEbus interrupt requests can be assigned to any of the 7 interrupt request linesSignal Routing: PMC module I/O signals transmitted through VMEbus P2 connector, supporting two P2 pin assignment schemesInterface Standard: PMC slots comply with IEEE P1386/Draft 2.0 specification; VME interface complies with IEEE 1014 Rev.D standardStatus Indication: Red LED indicates VMEbus interrupt request; yellow LED indicates VMEbus access statusPower Supply: Takes power from VME backplane, supporting 3.3V and 5V voltage output to PMC modules

Environmental Parameters

Operating Temperature: -40℃ to +85℃ (non-condensing environment)Storage Temperature: -55℃ to +125℃Relative Humidity: 5% to 95% (non-condensing)EMC Compliance: Conforms to industrial electromagnetic interference protection standards, adapting to complex industrial electromagnetic environmentsProtection Rating: IP20 (module itself, requiring VME chassis for overall dust protection)

Mechanical Parameters

Overall Dimensions: Conforming to 6U VME board standard size, compatible with single slot of standard VMEbus chassisHousing Material: Flame-retardant engineering plastic (UL94 V-0 grade) with RFI shielding functionWeight: Approximately 0.5kgMounting Method: Standard VMEbus slot mounting, connected to backplane via two 160-pin VG connectorsExpansion Interfaces: Two single-width PMC slots, compatible with one double-width PMC module installationFront Panel Configuration: Includes knockout for PMC module front panel and status indicator window

Product Performance

Expansion compatibility is strong: It supports access of all commercial PMC modules, and can flexibly configure functional modules such as data acquisition, communication expansion and motion control, enabling system function upgrade without additional adaptation components.

Data transmission is efficient: 33MHz bus clock rate combined with VME-PCI bridging technology realizes bottleneck-free data interaction between VME and PCI buses, meeting the high-speed transmission requirements of industrial control commands and monitoring data.

System integration is convenient: Directly compatible with GE Fanuc VME series industrial computers and DCS systems, supporting VMEbus master/slave mode switching, and enabling rapid application deployment through dedicated drivers provided by manufacturers.

Operation reliability is outstanding: Low-power design reduces heat dissipation requirements, adapting to environments without forced air cooling; comprehensive LED status indicators can real-time feed back interrupt and bus access status, facilitating quick location of abnormalities.

Environmental adaptability is excellent: The wide temperature range of -40℃ to +85℃ covers high and low temperature industrial scenarios; anti-electromagnetic interference design ensures stable operation in environments with dense high-power equipment without signal distortion or communication interruption.
