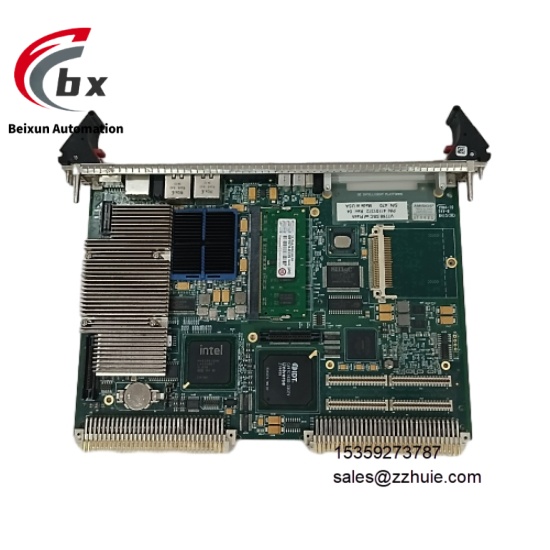

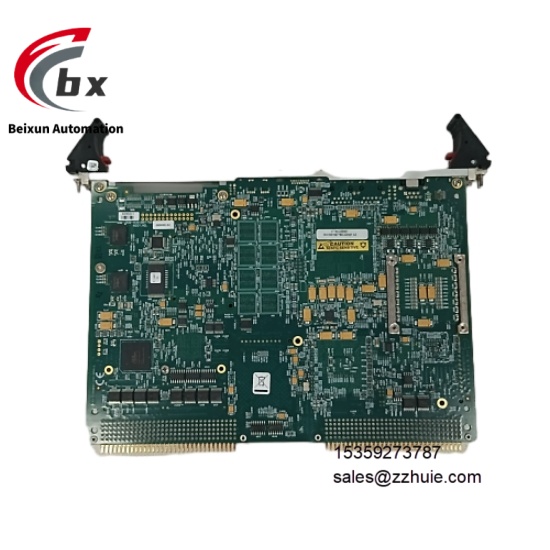

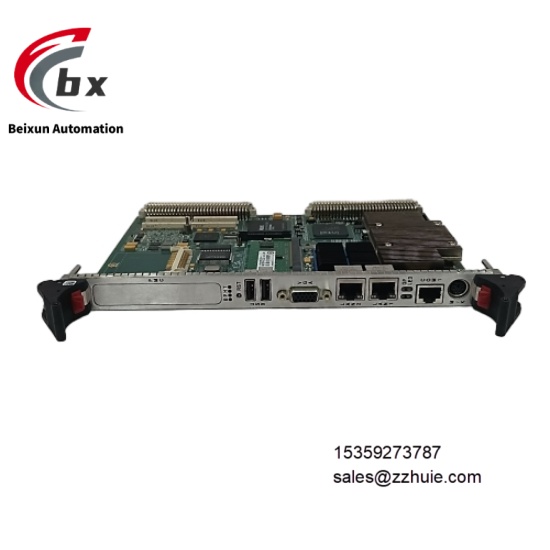

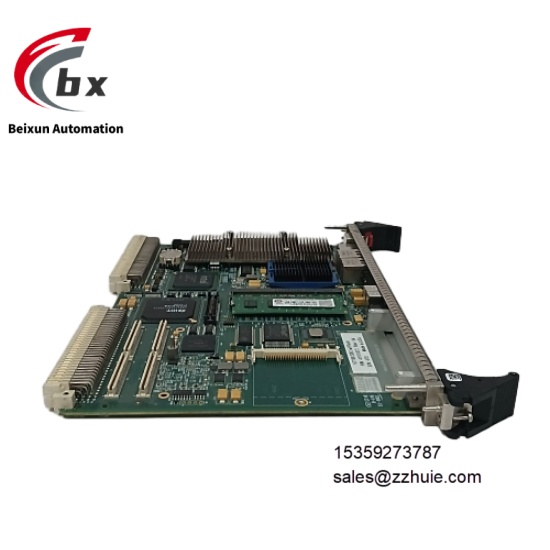

GE V7768-320001 350-9301007768-320001 C VME bus single board computer

Specific Parameters

Core Configuration Parameters
Processor: Intel Core 2 Duo, 2.16GHz clock speed
L2 Cache: 4MB
Memory: Up to 2GB DDR2 SDRAM (via single SO-DIMM slot)
System Bus: 667MHz (shared between memory and system bus)
Storage: Up to 8GB bootable CompactFlash (via IDE interface)
Interface and Expansion Parameters
Network Interfaces: 2 Gigabit Ethernet ports (Intel 82571 chip, supporting PXE network boot)
Serial Ports: 2 RS-232 interfaces
USB Interfaces: 4 USB 2.0 ports (2 front, 2 rear)
Expansion Slot: 1 PCI-X PMC expansion slot, supporting board-to-board connection expansion
Other Interfaces: 2 SATA interfaces, PS/2 keyboard/mouse interface (front-mounted)
Bus Standard: Compatible with VME64 specification (supporting A32/A24/D32/D08 modes)
Electrical Parameters
Power Requirements: +12V, +5V, -12V, 3.3V multi-group DC power supply
Power Consumption: ≤40W
Insulation Resistance: ≥100MΩ
Power Frequency Withstand Voltage: 2kV/1min (50Hz) between auxiliary power/input/output
Environmental Parameters
Operating Temperature: 0°C to 55°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
Vibration Resistance: Compliant with IEC 60068-2-6 standard
EMC Compliance: Compliant with industrial-grade EMC standards
Mechanical Parameters
Dimensions: 233mm×167mm×23mm
Weight: Approximately 2500g
Mounting Method: VMEbus backplane installation
Housing Material: Reinforced metal alloy

Product Performance

The single-board computer adopts Intel Core 2 Duo processor architecture with 2GB high-speed memory, enabling complex control algorithms and multi-task parallel processing with data processing delay ≤10ms. Supporting hardware byte swapping and enhanced bus error handling, VMEbus communication reliability is improved by over 30%.

CompactFlash storage supports power-off data protection, and together with reprogrammable BIOS flash memory, ensures stable updates of system firmware. Multi-interface design supports simultaneous connection of industrial sensors, actuators and host computers, achieving data acquisition-processing-control closed-loop response time ≤200ms.

Wide-temperature design and reinforced structure maintain stable performance under continuous operation from 0°C to 55°C, with mean time between failures (MTBF) ≥100,000 hours. Compatible with Windows XP, VxWorks, Linux and other operating systems, supporting third-party industrial software integration.
