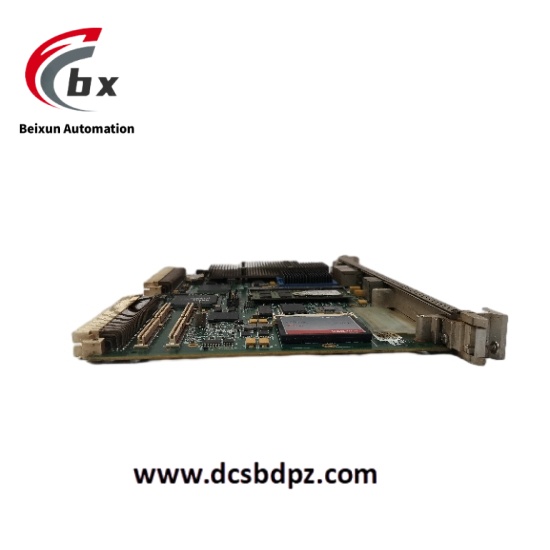

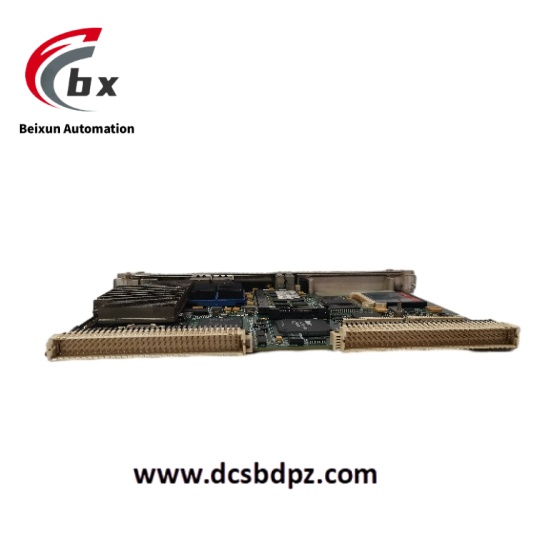

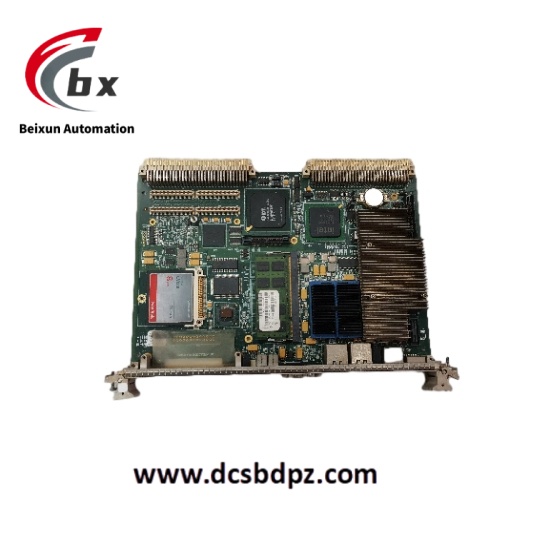

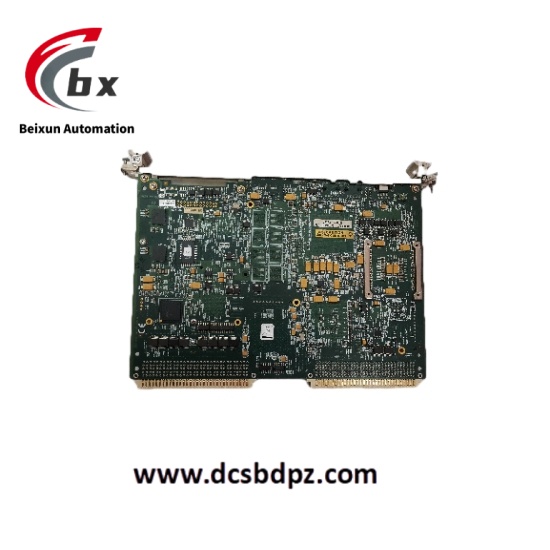

GE V7768-320000 3509301007768-320000A0 Communication adaptation module

GE V7768-320000 3509301007768-320000A0 Communication adaptation module

Specific Parameters

• Power Supply Parameters
  Supply Voltage: 24V DC (±10%)
  Rated Power Consumption: ≤4.0W
  Power Isolation: 2500Vrms (for 1 minute, power and signal terminals)
• Communication Parameters
  Supported Protocols: EtherNet/IP, Modbus TCP, Profibus DP
  Communication Rate: 10/100Mbps auto-negotiation (EtherNet/IP), 1.5Mbps-12Mbps (Profibus DP)
  Maximum Connected Nodes: 32 (Profibus DP slave), 16 (EtherNet/IP devices)
  Data Frame Length: Maximum 1500 bytes (Ethernet)
• Signal Conditioning Parameters
  Signal Input Type: Differential signal/single-ended signal (configurable)
  Signal Filter Level: 4 levels programmable (1ms-100ms)
  Response Delay: ≤8ms (protocol conversion time)
• Environmental Parameters
  Operating Temperature Range: -40°C to +70°C
  Storage Temperature Range: -40°C to +85°C
  Relative Humidity: 5% to 95% (non-condensing, when temperature ≤40°C)
  Protection Class: IP20 (module body), IP40 (connector part)
• Physical Parameters
  Mounting Type: 35mm standard DIN rail mounting
  Dimensions: 145mm×90mm×45mm
  Weight: Approximately 0.5kg
  Connector Type: Phoenix terminal (plug-in, 2.54mm pitch)

Product Performance

• Bidirectional Multi-Protocol Conversion：Simultaneously supports bidirectional data conversion of three mainstream industrial protocols, enabling cross-protocol equipment interconnection without additional gateways, reducing system integration complexity.
• High Anti-Interference Ability：Adopts differential signal transmission and electromagnetic shielding design, combined with 2500Vrms power isolation, which can resist electromagnetic radiation, surges and grounding interference in industrial sites, with data transmission bit error rate ≤10⁻⁹.
• Flexible Signal Conditioning：Supports differential/single-ended signal switching and multi-level filtering configuration, adapting to on-site signals with different distances and interference intensities, ensuring the stability of collected data.
• Stable Operation in Wide Temperature Range：Starts without delay in -40°C low-temperature environment, and runs continuously for 72 hours in +70°C high-temperature environment with parameter drift ≤0.5%, meeting the needs of extreme industrial scenarios.
• Built-in Fault Diagnosis：Real-time monitors protocol communication status, power voltage and signal integrity, feeds back fault types through LED indicators and system alarm signals, with fault location accuracy reaching channel level.
