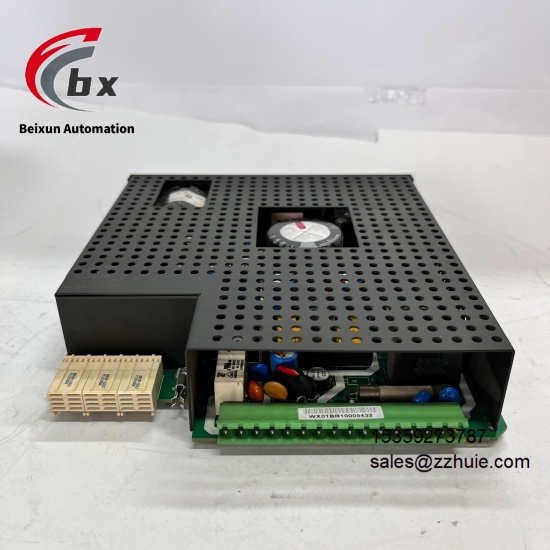

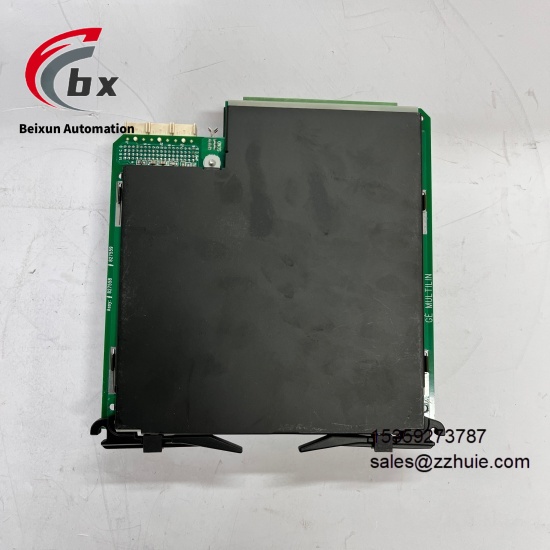

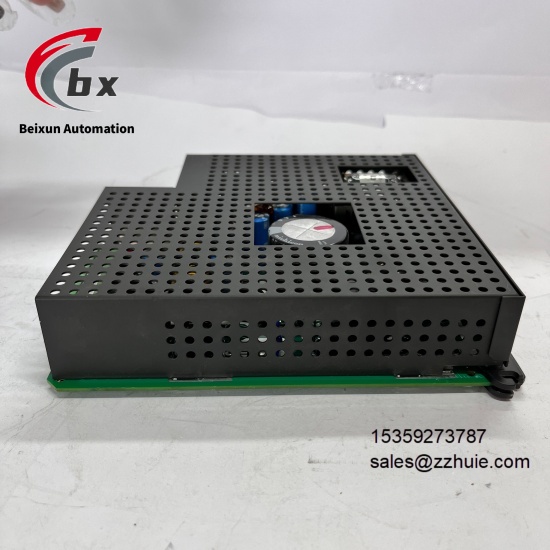

GE URRHH Redundant power module

GE URRHH Redundant power module

Specific Parameters​

Core and Function Parameters​

Product Type Industrial-grade Redundant Power Supply Module (Special Power Supply Module for Universal Relays)​

Manufacturer GE (GE Multilin)​

Model URRHH​

Series Multilin UR Series (Universal Relay Series)​

Core Functions System Power Supply, Redundant Power Supply Guarantee, Power Supply Status Monitoring, Fault Alarm​

Compatible Systems GE Multilin UR Series Universal Relay Systems, All UR Series Modules​

Working Modes Supports Redundant Configuration and Non-redundant Configuration​

Powered Devices UR Series Universal Relays, CT/VT Signal Modules, I/O Modules, Communication Expansion Modules​

Protection Functions Overcurrent Protection, Overvoltage Protection, Short-circuit Protection, Over-temperature Protection​

Diagnostic Functions Power Supply Module Self-diagnosis, Power Supply Status Monitoring, Fault Status Feedback, Continuous Self-test​

Communication Interface RS-232/RS-485 Interface​

Supported Protocols Modbus Protocol​

Installation Method 19-inch Rack Plug-in Installation (compatible with UR Series Standard Base Units)​

Certification Standards IEC 60255 Standard, ANSI/IEEE C37.90 Standard, GB/T 15543 Standard, RoHS Certification​

Status Indication Independent LED Indicators for Power Normal, Redundant Status, Fault Alarm​

Electrical and Performance Parameters​

Input Voltage Range 24-48V DC (Low Range), 100-250V AC/DC (High Range)​

Output Voltage 24V DC​

Output Power 35W​

Output Current 1.46A​

Power Efficiency ≥90%​

Input Frequency Range 47-63Hz​

Internal Fuse Rating 4A/250V​

Measurement Accuracy ±0.5% of Reading​

Repeatability ±0.1% of Reading​

Isolation Level Electrical Isolation Between Input and Output Complies with Industrial Power Supply Standards​

Anti-interference Performance Complies with Industrial Electromagnetic Compatibility Standards​

Physical and Environmental Parameters​

Overall Dimensions 100mm×60mm×30mm (Length×Width×Height)​

Weight Approximately 0.5kg​

Operating Temperature Range -40°C to 70°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity 5%-95% (non-condensing, no dew)​

Protection Rating IP67 (per IEC 60529)​

Housing Material Industrial-grade Flame-retardant Housing​

Vibration Resistance Complies with Industrial Power Equipment Vibration Standards​

Shock Resistance Complies with Industrial Power Equipment Shock Standards​

Service Life Typical 100,000 Hours​

Product Performance​

Wide voltage input design compatible with 24-250V AC/DC, adapting to different industrial power supply scenarios with strong power supply flexibility​

35W output power + ≥90% high conversion efficiency, low energy consumption and low heat generation, ensuring high stability during long-term operation​

Supports redundant configuration, seamless switching in case of faults, guaranteeing uninterrupted power supply for core control systems with extremely high reliability​

Integrates multiple protection and self-diagnosis functions, real-time monitoring of power supply status, timely fault alarms and convenient operation and maintenance​

RS-232/RS-485 communication interface + Modbus protocol, enabling remote monitoring of power supply status with convenient data interaction​

Plug-in installation compatible with UR series standard base units, no additional adaptation required, ensuring efficient installation and replacement​

Wide operating temperature range of -40°C to 70°C + IP67 protection rating, resisting harsh environments such as high and low temperatures, humidity and dust​

Typical service life of 100,000 hours, reducing maintenance and replacement frequency with low long-term use costs​

Low-noise design, suitable for noise-sensitive industrial applications with excellent environmental adaptability​
